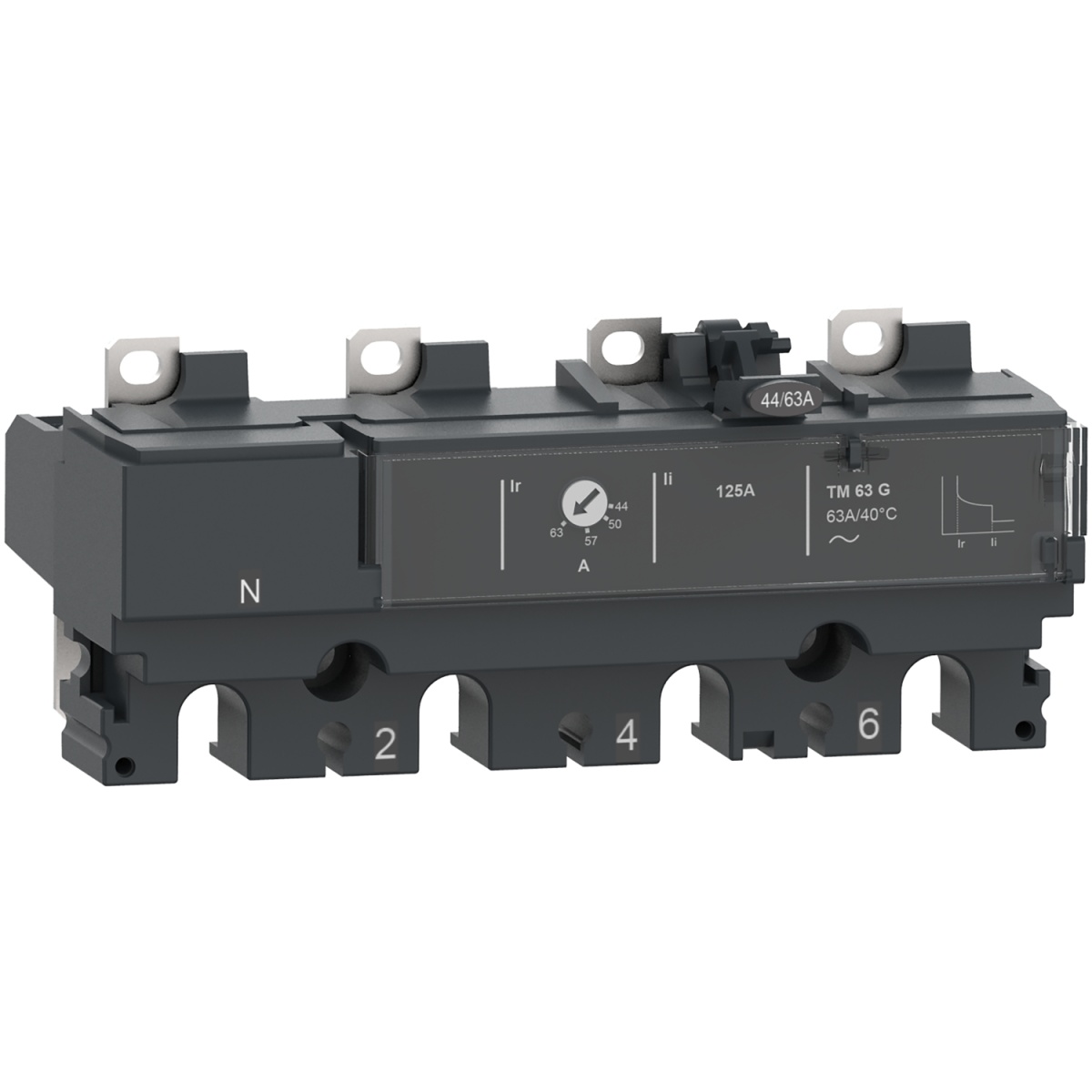

ComPacT DISPARADOR NSX100 CA 4P4D 25A TMG
Cutting and Protection Devices
ComPacT DISPARADOR NSX100 CA 4P4D 25A TMG
Manufacturer Ref:
C104MG025
Nortécnica Ref:
EAN:
3606482000681
Description
Technical Information
Attributes
Width
139.7
Height
60.6
Depth
88.2
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
25
Number of poles
4
Short-circuit release function
Undelayed
Overload release current setting
17.5
25
Voltage type supply voltage
-
External power supply required
No
Number of auxiliary contacts as change-over contact
0
Voltage type operating voltage
AC
With ground fault protection function
No
Rated switch current
25
Supply voltage AC 50 Hz
-
-
Supply voltage AC 60 Hz
-
-
Supply voltage DC
-
-
Operating voltage AC 50 Hz
690
690
Operating voltage AC 60 Hz
690
690
Operating voltage DC
-
-
Type of motor protection
Thermal/magnetic release
Current setting undelayed short-circuit release
80
80
Current setting delayed short-circuit release
-
-
Brands
Schneider
