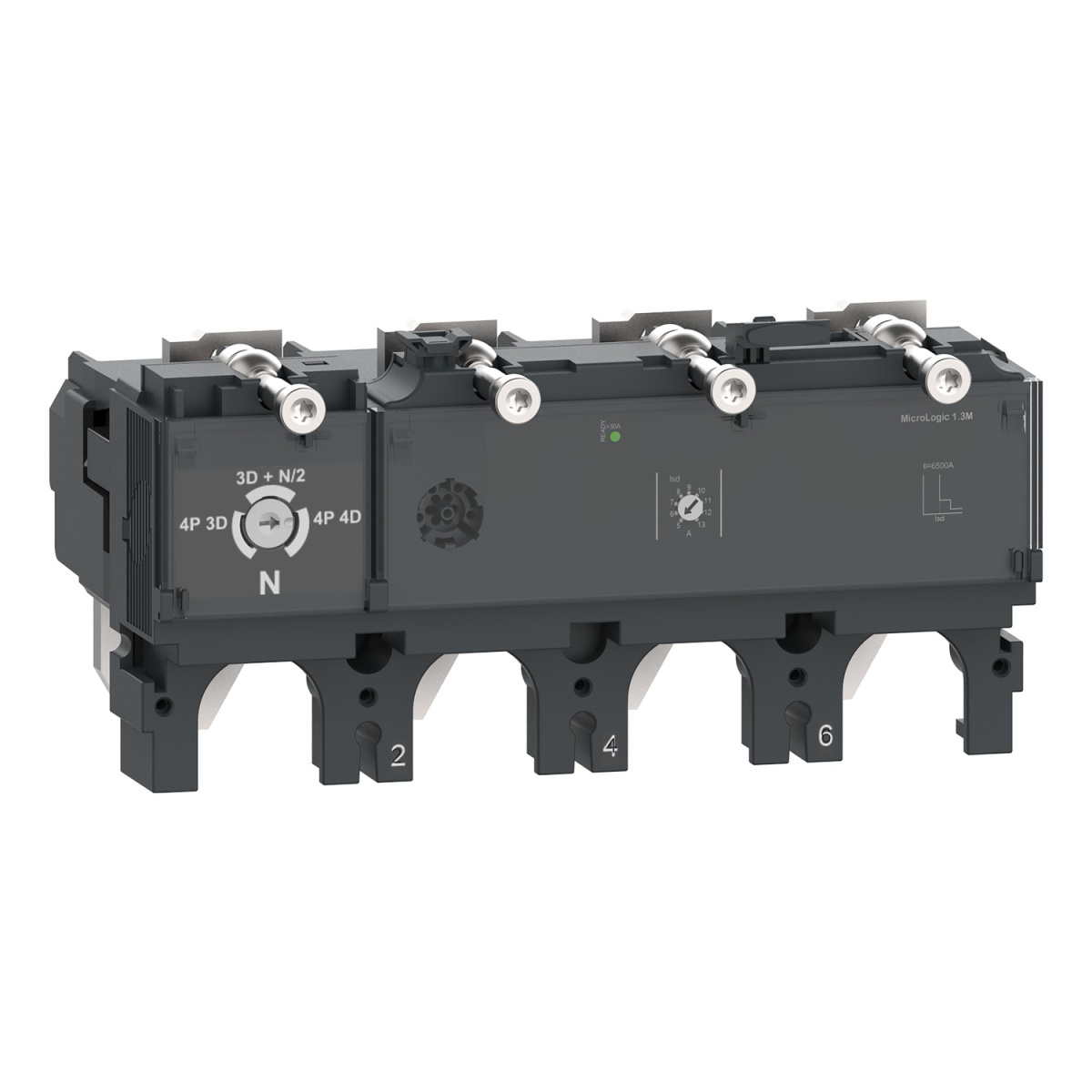

ComPacT DISPARADOR NSX400 CA 4P4D 250A 2,3
Cutting and Protection Devices
ComPacT DISPARADOR NSX400 CA 4P4D 250A 2,3
Manufacturer Ref:
C4042D250
Nortécnica Ref:
EAN:
3606482003255
Description
Technical Information
Attributes
Width
184.7
Height
94.6
Depth
112.6
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
250
Number of poles
4
Short-circuit release function
Delayed
Overload release current setting
70
250
Voltage type supply voltage
-
External power supply required
No
Number of auxiliary contacts as change-over contact
0
Voltage type operating voltage
AC
With ground fault protection function
No
Rated switch current
250
Supply voltage AC 50 Hz
-
-
Supply voltage AC 60 Hz
-
-
Supply voltage DC
-
-
Operating voltage AC 50 Hz
690
690
Operating voltage AC 60 Hz
690
690
Operating voltage DC
-
-
Type of motor protection
Electronic release
Current setting undelayed short-circuit release
3000
3000
Current setting delayed short-circuit release
105
2500
Brands
Schneider
Technical Sheet
