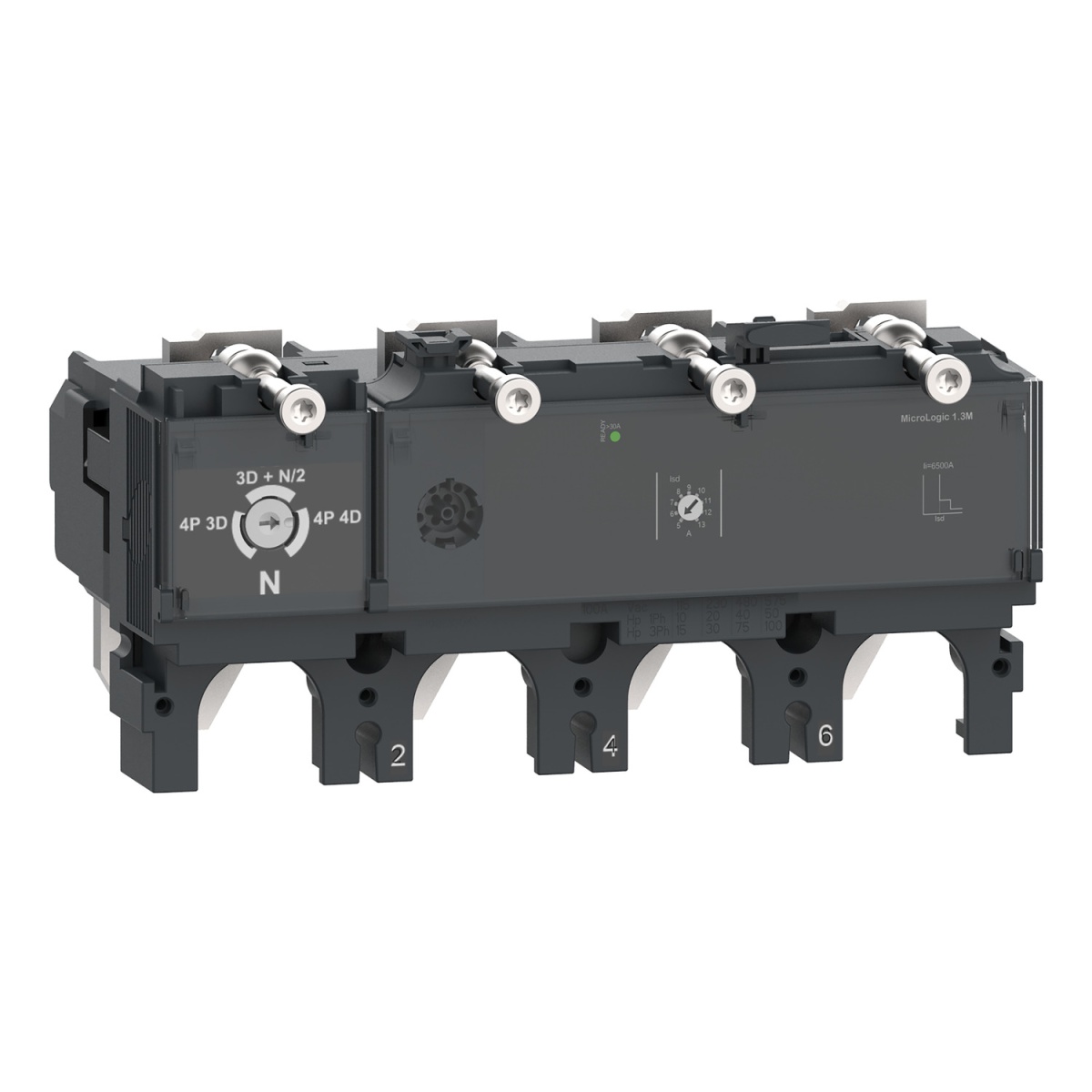

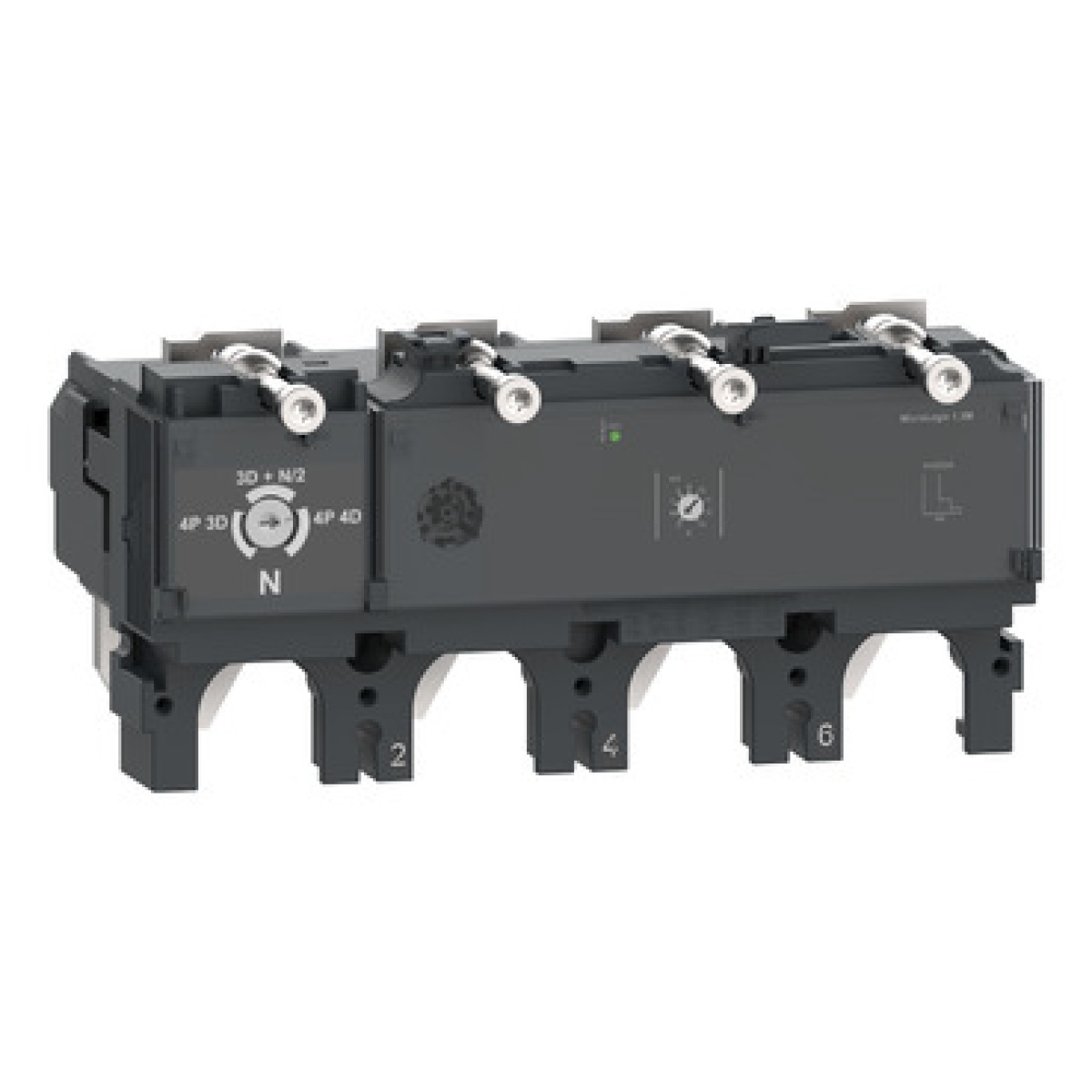

ComPacT DISPARADOR NSX630 CA 4P4D 500A 1.3M
Cutting and Protection Devices
ComPacT DISPARADOR NSX630 CA 4P4D 500A 1.3M
Manufacturer Ref:
C6341M500
Nortécnica Ref:
51C6341M500
EAN:
3606482003330
Description
Technical Information
Attributes
Largura
184.7
Altura
94.6
Profundidade
112.6
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
500
Number of poles
4
Short-circuit release function
Delayed
Overload release current setting
-
-
Voltage type supply voltage
-
External power supply required
No
Number of auxiliary contacts as change-over contact
0
Voltage type operating voltage
AC
With ground fault protection function
No
Rated switch current
500
Supply voltage AC 50 Hz
-
-
Supply voltage AC 60 Hz
-
-
Supply voltage DC
-
-
Operating voltage AC 50 Hz
690
690
Operating voltage AC 60 Hz
690
690
Operating voltage DC
-
-
Type of motor protection
Electronic release
Current setting undelayed short-circuit release
6500
6500
Current setting delayed short-circuit release
2500
6500
Brands
Schneider
Technical Sheet
