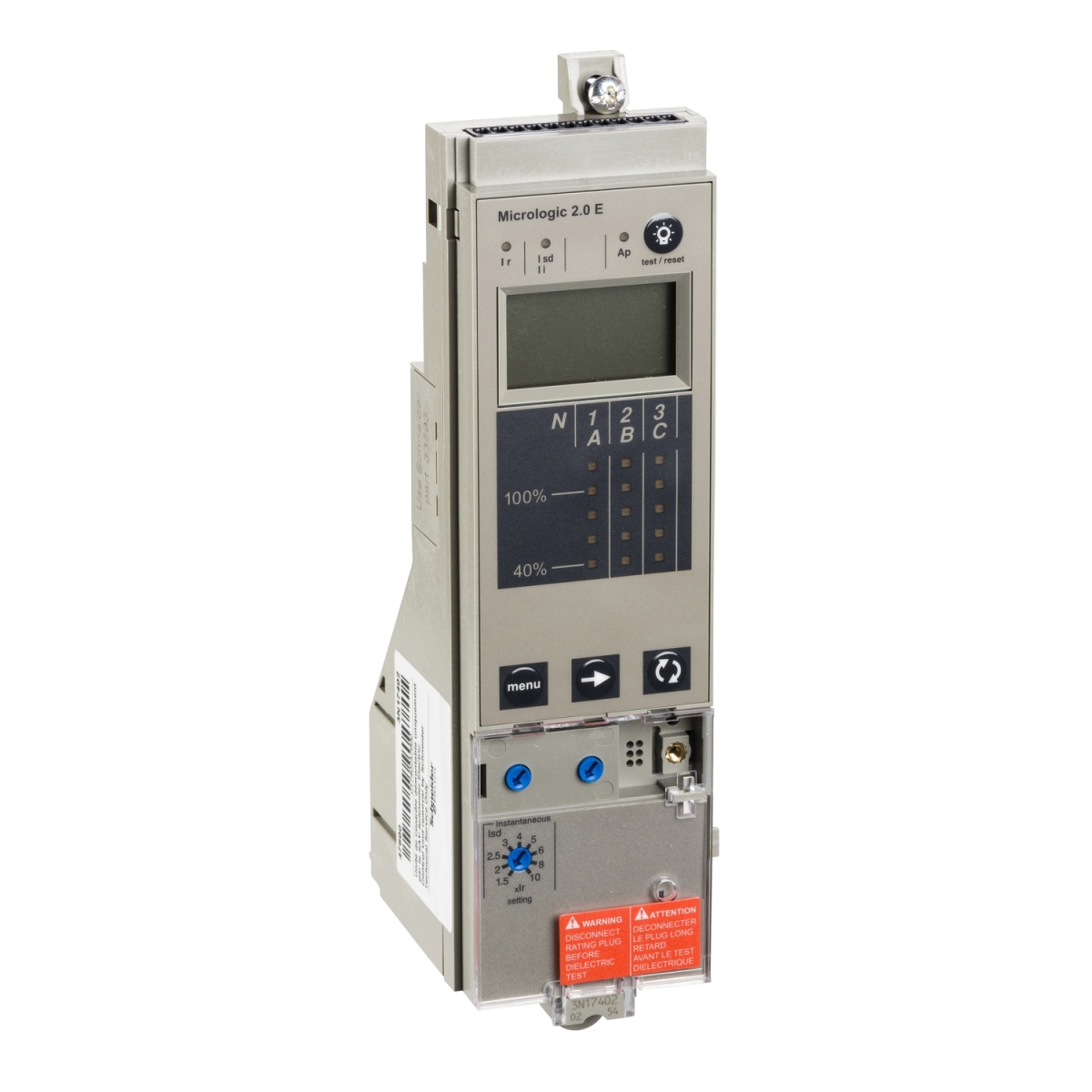

control unit Micrologic 2.0 E, Compact NS 630b to 1600 circuit breakers, drawout, LI protections
Cutting and Protection Devices
control unit Micrologic 2.0 E, Compact NS 630b to 1600 circuit breakers, drawout, LI protections
Manufacturer Ref:
33536
Nortécnica Ref:
EAN:
3606480344688
Description
Technical Information
Attributes
Width
53.6
Height
199.5
Depth
67.5
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
1600
Number of poles
-
Short-circuit release function
Undelayed
Overload release current setting
252
1600
Voltage type supply voltage
DC
External power supply required
Yes
Number of auxiliary contacts as change-over contact
0
Voltage type operating voltage
AC
With ground fault protection function
No
Rated switch current
1600
Supply voltage AC 50 Hz
-
-
Supply voltage AC 60 Hz
-
-
Supply voltage DC
24
24
Operating voltage AC 50 Hz
690
690
Operating voltage AC 60 Hz
690
690
Operating voltage DC
-
-
Type of motor protection
Electronic release
Current setting undelayed short-circuit release
378
16000
Current setting delayed short-circuit release
-
-
Brands
Schneider
