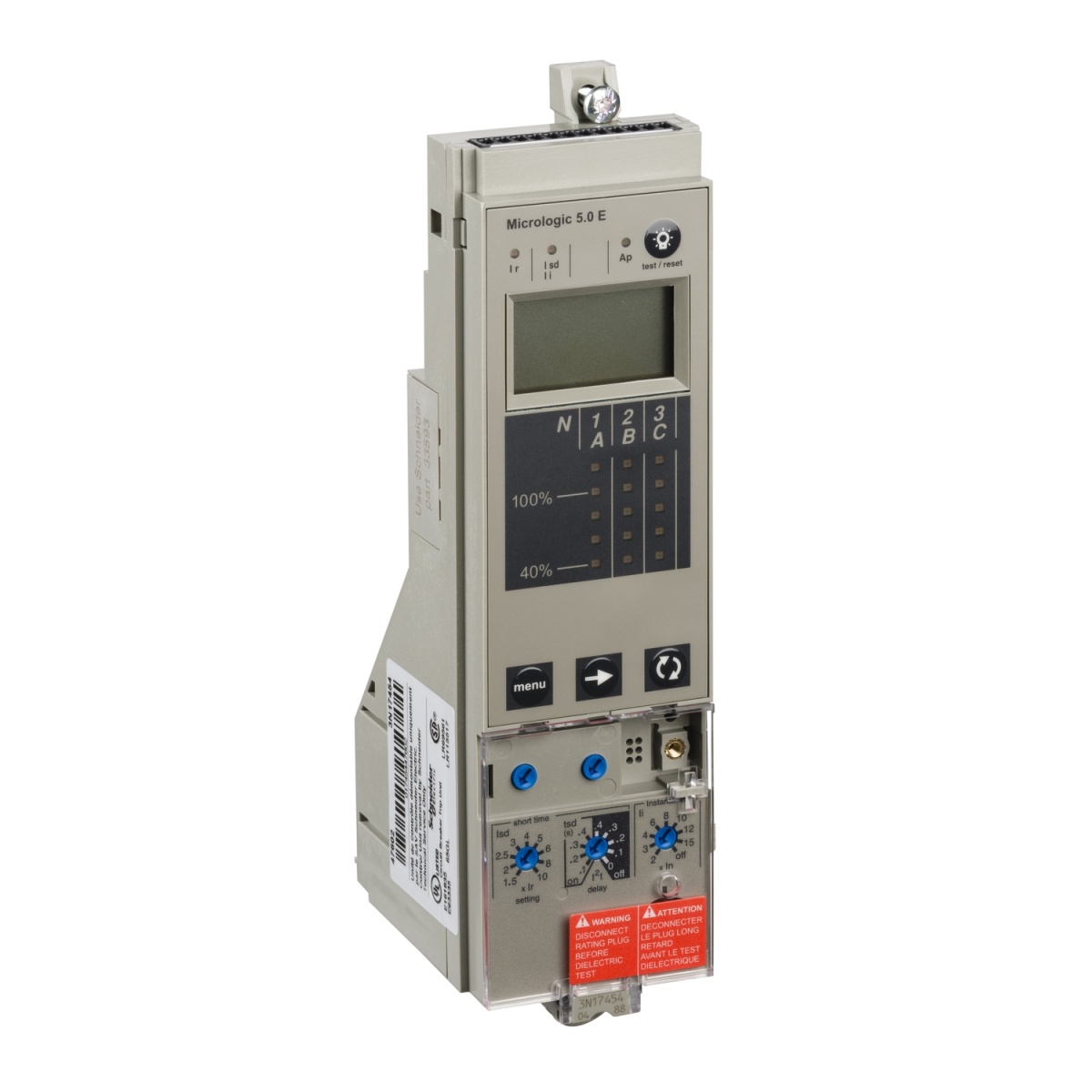

control unit Micrologic 5.0 E, Compact NS 630b to 3200 circuit breakers, fixed, LSI protections
Cutting and Protection Devices
control unit Micrologic 5.0 E, Compact NS 630b to 3200 circuit breakers, fixed, LSI protections
Manufacturer Ref:
33537
Nortécnica Ref:
51033537
EAN:
3606480344695
Description
Technical Information
Attributes
Largura
53.6
Altura
199.5
Profundidade
67.5
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
3200
Number of poles
-
Short-circuit release function
Delayed
Overload release current setting
252
3200
Voltage type supply voltage
DC
External power supply required
Yes
Number of auxiliary contacts as change-over contact
0
Voltage type operating voltage
AC
With ground fault protection function
No
Rated switch current
3200
Supply voltage AC 50 Hz
-
-
Supply voltage AC 60 Hz
-
-
Supply voltage DC
24
24
Operating voltage AC 50 Hz
690
690
Operating voltage AC 60 Hz
690
690
Operating voltage DC
-
-
Type of motor protection
Electronic release
Current setting undelayed short-circuit release
6400
48000
Current setting delayed short-circuit release
378
32000
Brands
Schneider
Technical Sheet
