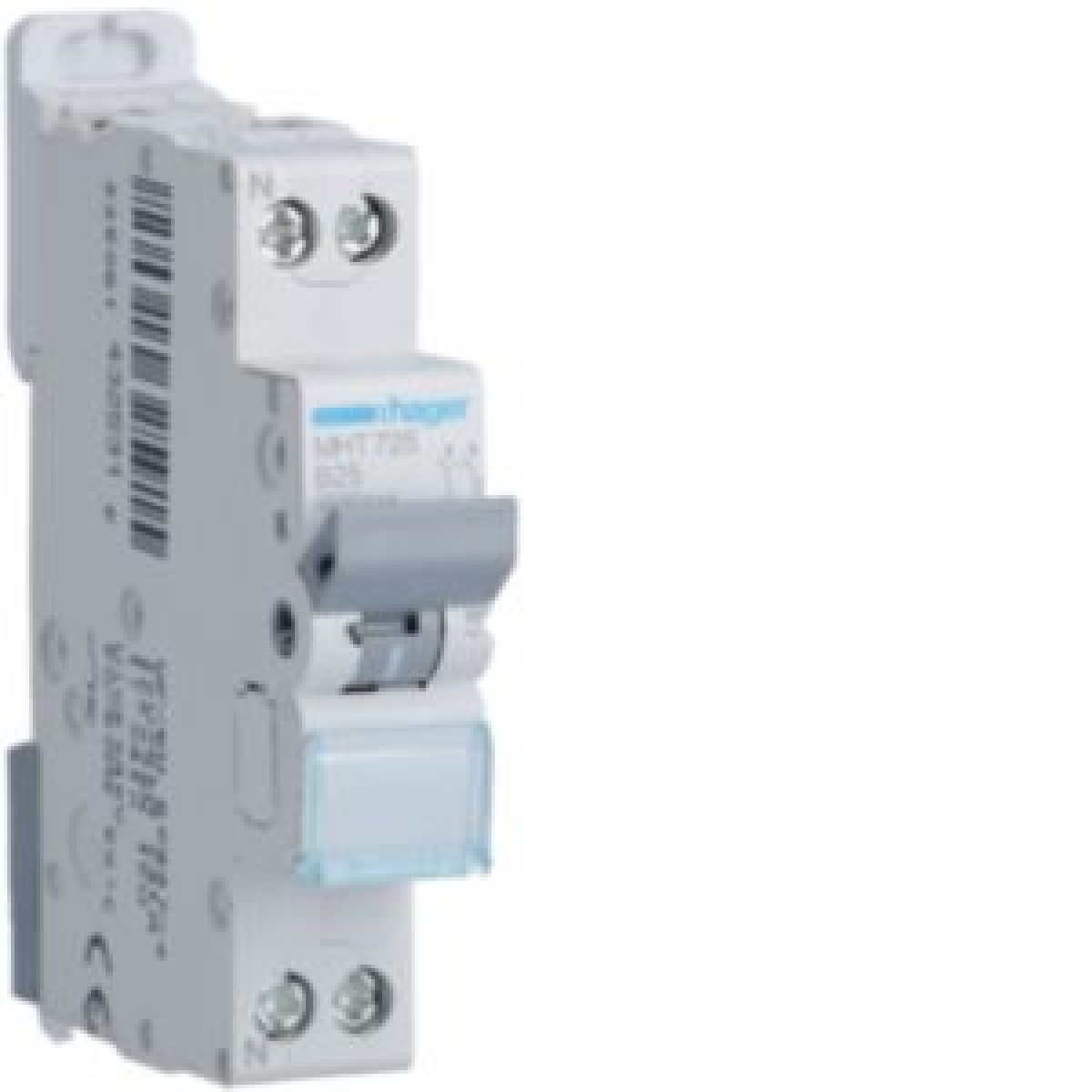

Disjuntor 1PN 25A B 456KA 1M
Cutting and Protection Devices
Disjuntor 1PN 25A B 456KA 1M
Manufacturer Ref:
MHT725
Nortécnica Ref:
71MHT725
EAN:
3250614325915
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
70
Rated current
25
Rated voltage
240
Frequency
50
60
Release characteristic
B
Rated insulation voltage Ui
500
Current limiting class
3
Overvoltage category
3
Pollution degree
3
Largura em número de módulos
1
Explosion-proof
No
Power loss
4.10
Degree of protection IP
IP20
Number of protected poles
1
Concurrently switching neutral conductor
Yes
Connectable conductor cross section solid-core
0.75
16
Connectable conductor cross section multi-wired
0.75
10
Ambient temperature during operating
-25
60
Flush-mounted installation
Yes
Additional equipment possible
Yes
Number of poles total
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
4.5
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-
Rated impulse withstand voltage Uimp
4
Brands
Hager Sistemas Eléctricos Modulares SA
