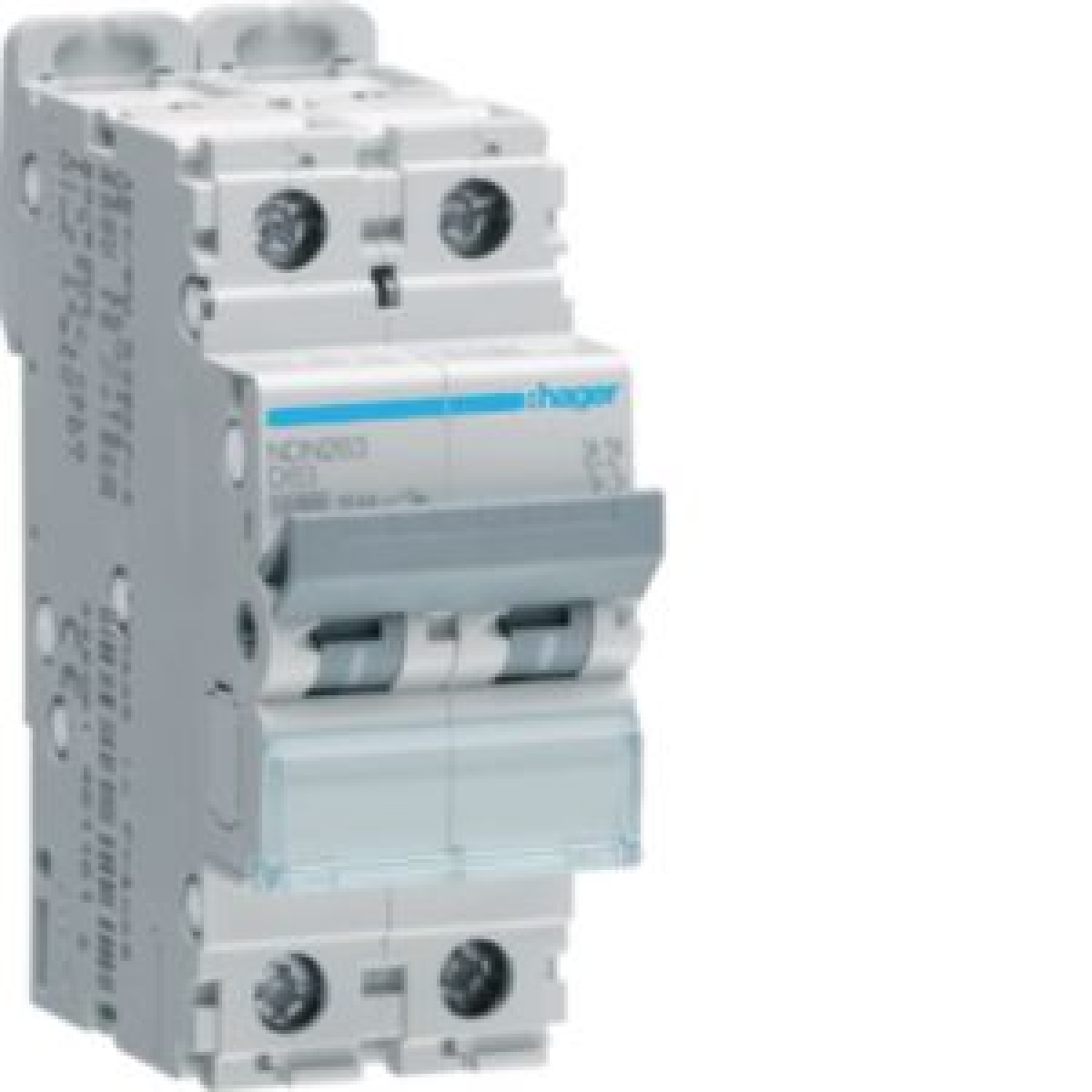

Disjuntor 2P 63A D 1015kA 2M
Cutting and Protection Devices
Disjuntor 2P 63A D 1015kA 2M
Manufacturer Ref:
NDN263
Nortécnica Ref:
71NDN263
EAN:
3250614611674
Description
Technical Information
Attributes
Voltage type
AC
Profundidade incorporada
70
Corrente nominal especificada
63
EF000228
400
Frequency
50
60
Release characteristic
D
Tensão nominal de isolamento Ui
500
Current limiting class
-
Overvoltage category
3
Grau de poluição
2
Largura em número de módulos
2
Explosion-proof
No
Potência dissipada
13.10
Degree of protection IP
IP20
Number of protected poles
2
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
1
35
Connectable conductor cross section multi-wired
1
25
Ambient temperature during operating
-25
70
Flush-mounted installation
Yes
Additional equipment possible
Yes
Number of poles total
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
30
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15
Tensão estipulada suportável ao choque Uimp
6
Brands
Hager Sistemas Eléctricos Modulares SA
