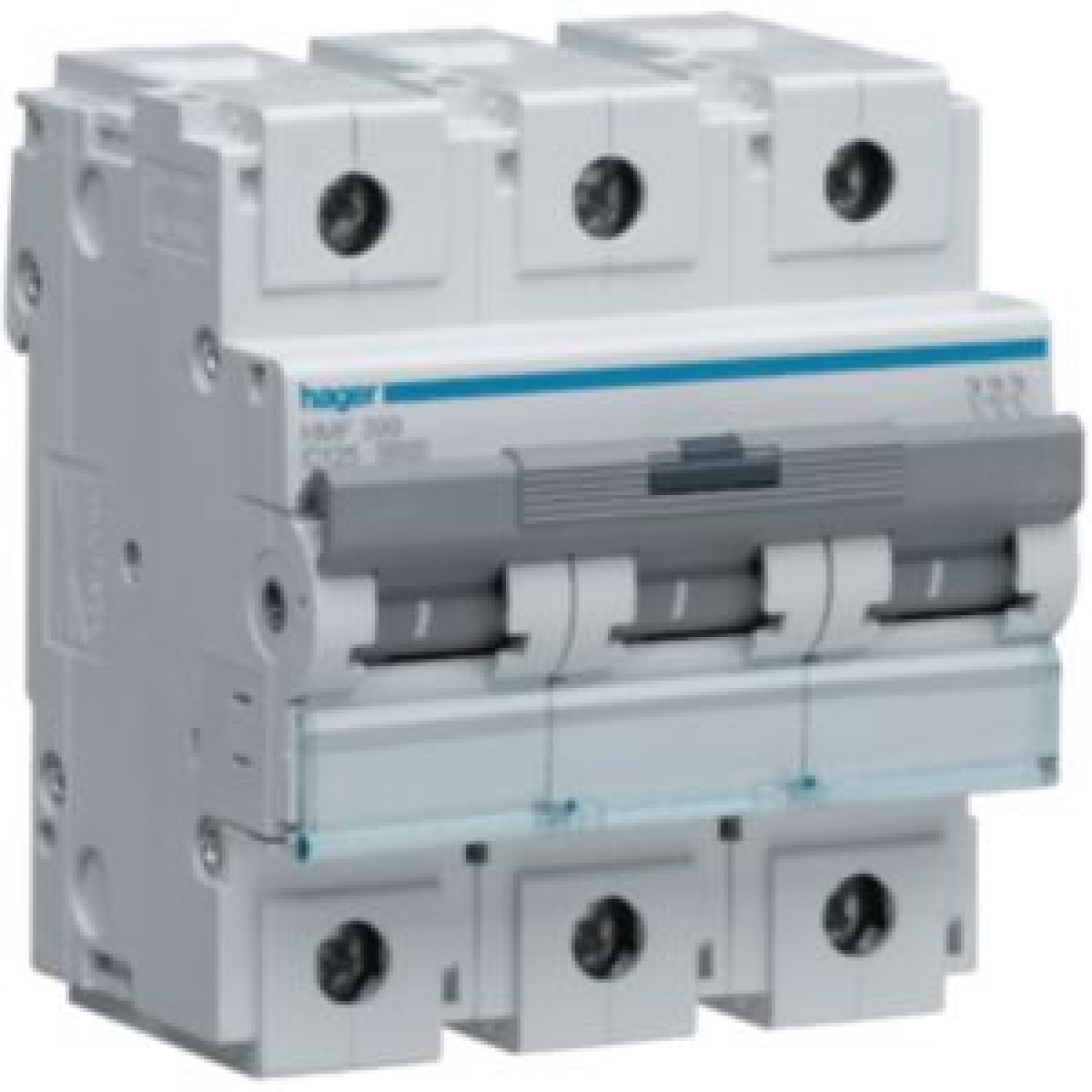

Disjuntor 3P 125A C 10kA 45M
Cutting and Protection Devices
Disjuntor 3P 125A C 10kA 45M
Manufacturer Ref:
HMF399
Nortécnica Ref:
71HMF399
EAN:
3250613231057
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
70
Rated current
125
EF000228
415
Frequency
50
60
Release characteristic
C
Rated insulation voltage Ui
500
Current limiting class
-
Overvoltage category
3
Pollution degree
3
Width in number of modular spacings
4.5
Explosion-proof
No
Power loss
34.93
Degree of protection IP
IP20
Number of protected poles
3
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
1
70
Connectable conductor cross section multi-wired
1
50
Ambient temperature during operating
-25
70
Flush-mounted installation
Yes
Additional equipment possible
Yes
Number of poles total
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10
Rated impulse withstand voltage Uimp
6
Brands
Hager Sistemas Eléctricos Modulares SA
