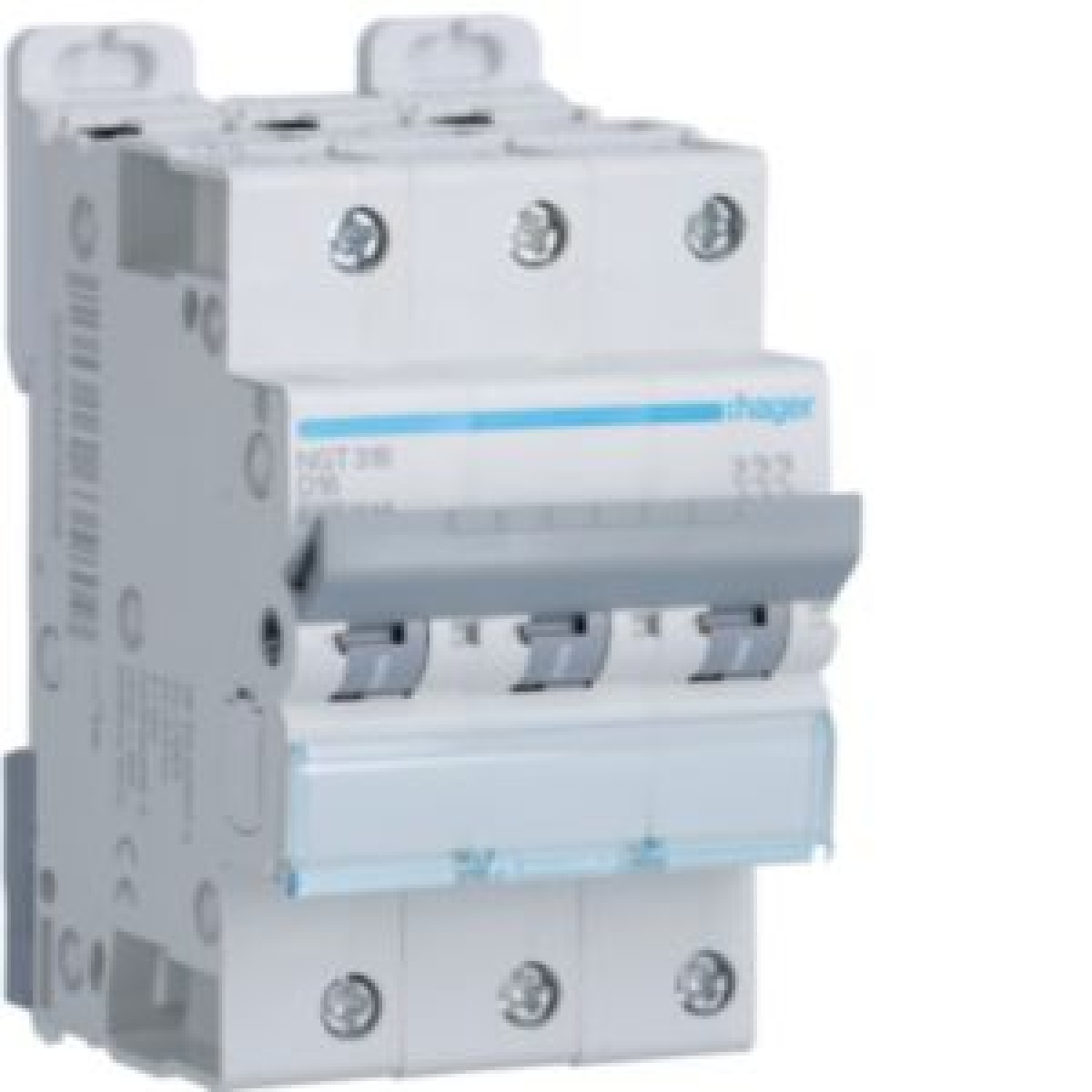

Disjuntor 3P 16A D 610kA 3M
Cutting and Protection Devices
Disjuntor 3P 16A D 610kA 3M
Manufacturer Ref:
NGT316
Nortécnica Ref:
71NGT316
EAN:
3250614635809
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
70
Rated current
16
Rated voltage
415
Frequency
50
60
Release characteristic
D
Rated insulation voltage Ui
500
Current limiting class
-
Overvoltage category
3
Pollution degree
3
Largura em número de módulos
3
Explosion-proof
No
Power loss
7.70
Degree of protection IP
IP20
Number of protected poles
3
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0.75
16
Connectable conductor cross section multi-wired
0.75
10
Ambient temperature during operating
-25
60
Flush-mounted installation
Yes
Additional equipment possible
Yes
Number of poles total
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10
Rated impulse withstand voltage Uimp
4
Brands
Hager Sistemas Eléctricos Modulares SA
