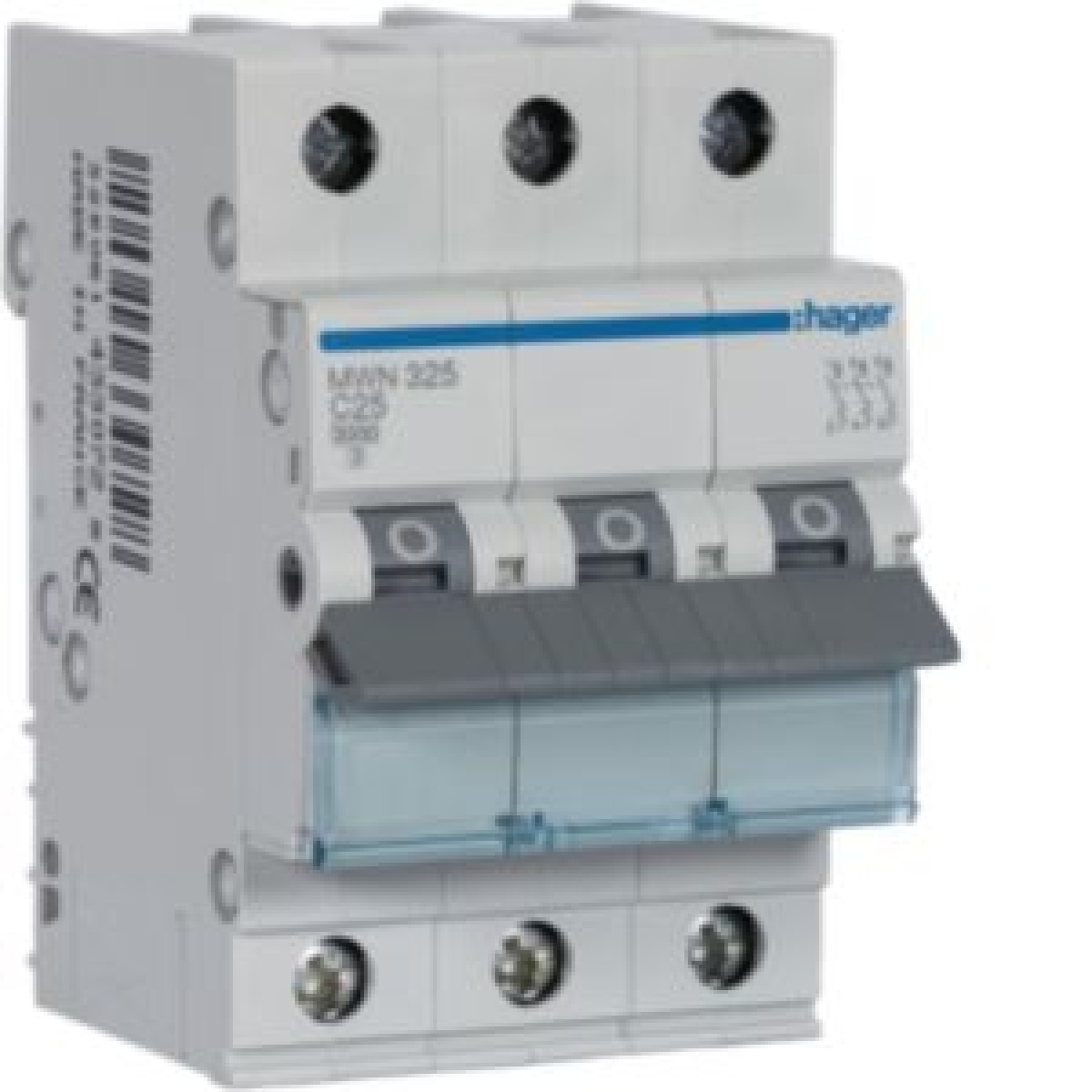

Disjuntor 3P 25A C 3kA 3M
Cutting and Protection Devices
Disjuntor 3P 25A C 3kA 3M
Manufacturer Ref:
MWN325
Nortécnica Ref:
71MWN325
EAN:
3250614330773
Description
Technical Information
Attributes
Voltage type
AC
Profundidade incorporada
70
Corrente nominal especificada
25
EF000228
400
Frequency
50
60
Release characteristic
C
Tensão nominal de isolamento Ui
500
Current limiting class
3
Overvoltage category
3
Grau de poluição
2
Largura em número de módulos
3
Explosion-proof
No
Potência dissipada
10.10
Degree of protection IP
IP20
Number of protected poles
3
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
1
35
Connectable conductor cross section multi-wired
1
25
Ambient temperature during operating
-25
70
Flush-mounted installation
Yes
Additional equipment possible
No
Number of poles total
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-
Tensão estipulada suportável ao choque Uimp
4
Brands
Hager Sistemas Eléctricos Modulares SA
