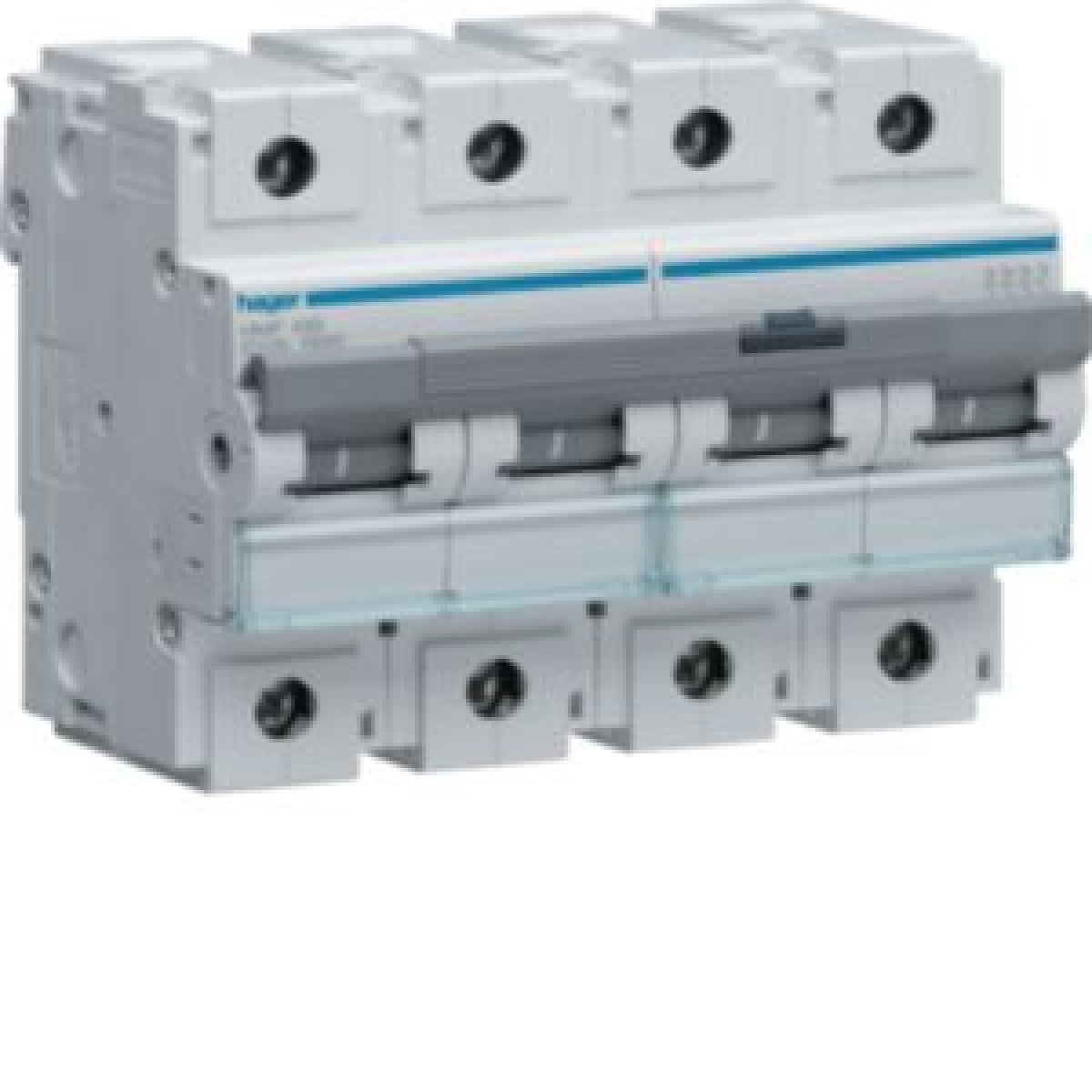

Disjuntor 4P 125A C 10kA 6M
Cutting and Protection Devices
Disjuntor 4P 125A C 10kA 6M
Manufacturer Ref:
HMF499
Nortécnica Ref:
71HMF499
EAN:
3250613231088
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
70
Rated current
125
EF000228
415
Frequency
50
60
Release characteristic
C
Rated insulation voltage Ui
500
Current limiting class
3
Overvoltage category
3
Pollution degree
3
Width in number of modular spacings
6
Explosion-proof
No
Power loss
42.25
Degree of protection IP
IP20
Number of protected poles
4
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
1
70
Connectable conductor cross section multi-wired
1
50
Ambient temperature during operating
-25
70
Flush-mounted installation
Yes
Additional equipment possible
Yes
Number of poles total
4
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10
Rated impulse withstand voltage Uimp
6
Brands
Hager Sistemas Eléctricos Modulares SA
