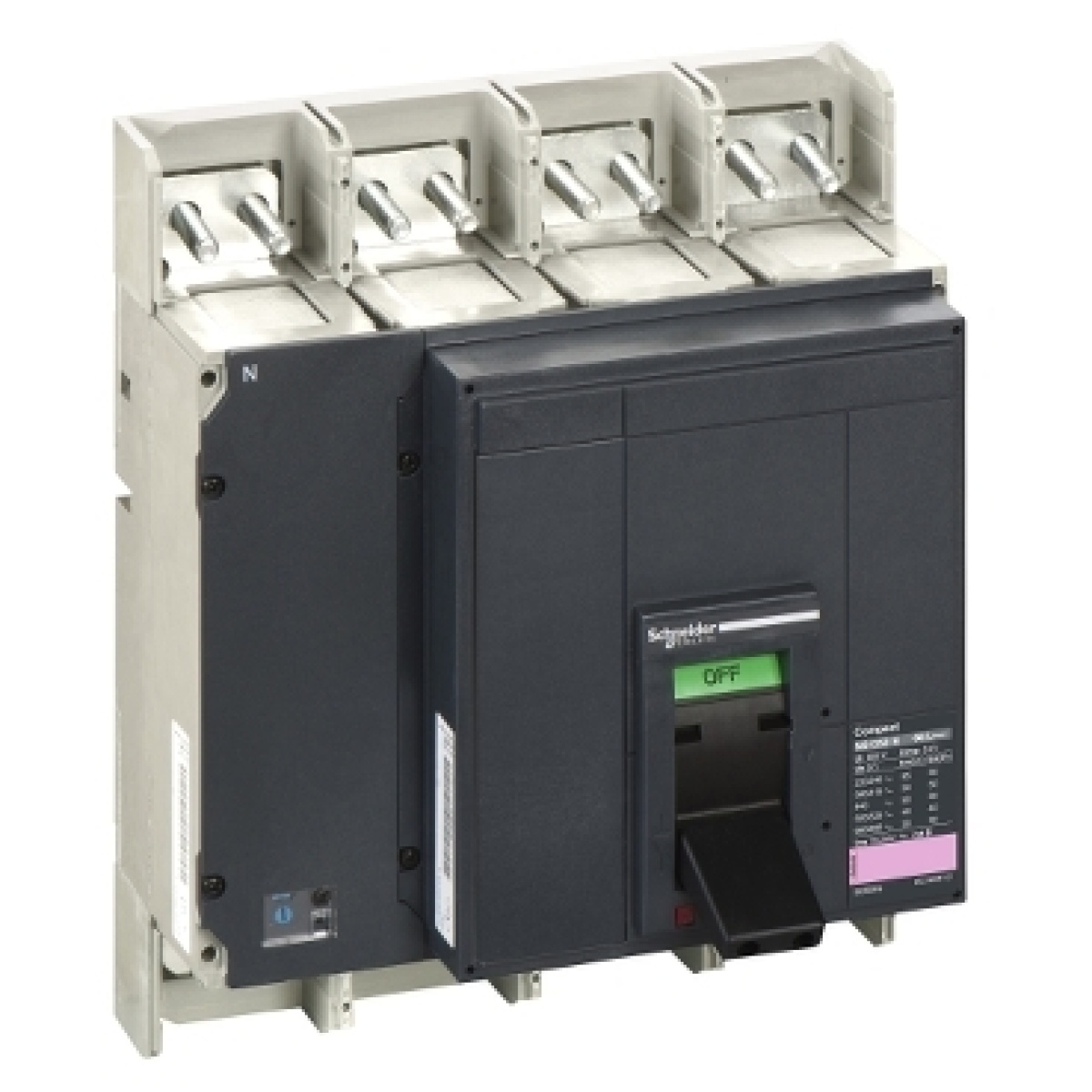

disjuntor Compact NS1250H - 1250 A - 4 pólos - extraível -sem controlo
Cutting and Protection Devices
disjuntor Compact NS1250H - 1250 A - 4 pólos - extraível -sem controlo
Manufacturer Ref:
33405
Nortécnica Ref:
EAN:
3303430334057
Description
Technical Information
Attributes
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
1250
With integrated under voltage release
No
Número de polos
4
Overload release current setting
-
-
Number of auxiliary contacts as change-over contact
0
Rated voltage
690
690
Potência dissipada
336
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
Yes
Type of electrical connection of main circuit
Bolt connection
Type of control element
Push button
With switched-off indicator
Yes
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
70
Adjustment range short-term delayed short-circuit release
-
-
Adjustment range undelayed short-circuit release
-
-
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
No
Device construction
Built-in device slide-in technique (withdrawable)
DIN rail top hat rail mounting optional
No
Complete device with protection unit
No
Brands
Schneider
