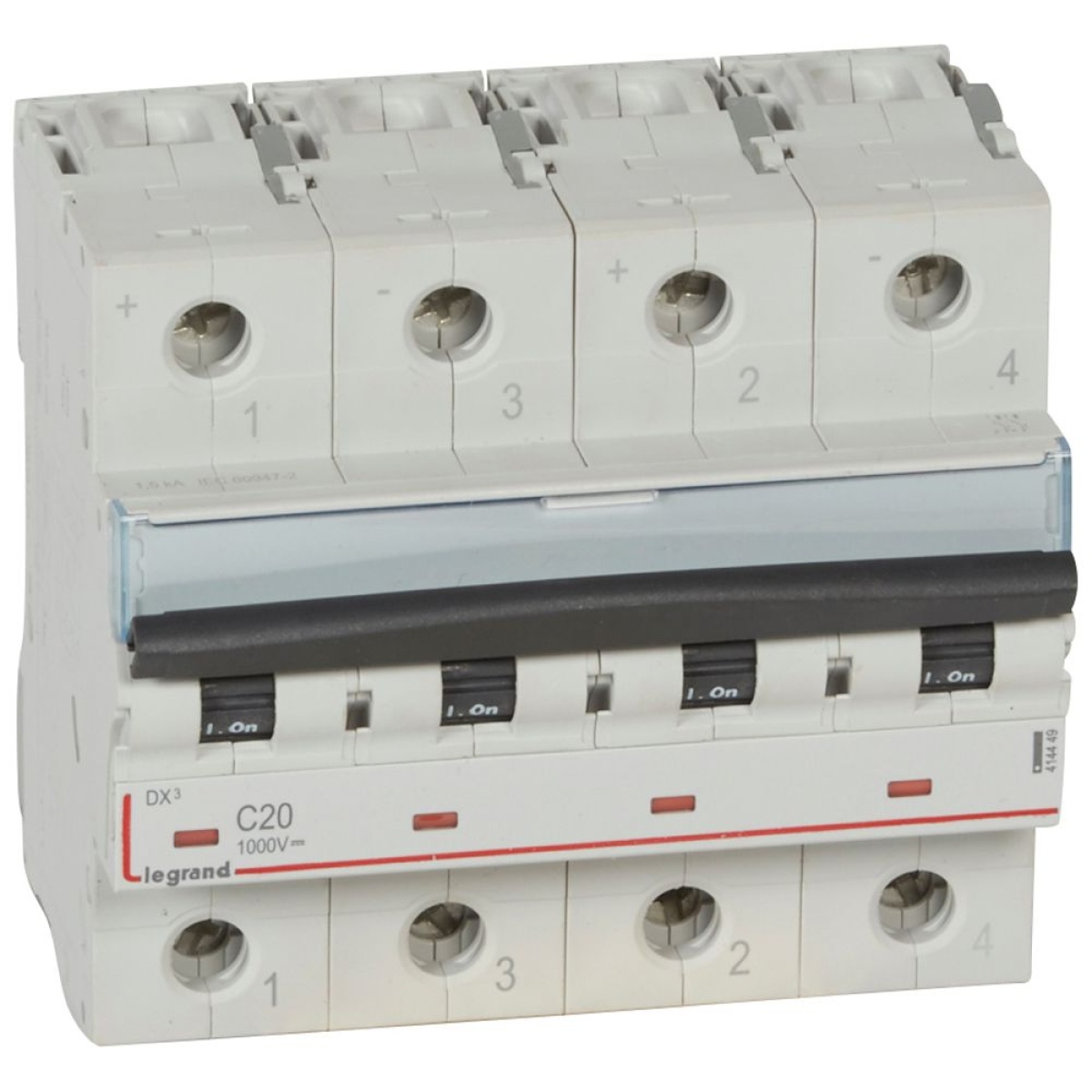

Disjuntor corrente contínua DX3 2P C20 1000 V
Cutting and Protection Devices
Disjuntor corrente contínua DX3 2P C20 1000 V
Manufacturer Ref:
414449
Nortécnica Ref:
EAN:
3245064144490
Description
Technical Information
Attributes
Voltage type
DC
Built-in depth
44
Rated current
20
Rated voltage
1000
Frequency
-
-
Release characteristic
B
Rated insulation voltage Ui
1000
Current limiting class
-
Overvoltage category
-
Pollution degree
2
Largura em número de módulos
6
Explosion-proof
No
Power loss
-
Degree of protection IP
IP20
Number of protected poles
2
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
1.5
50
Connectable conductor cross section multi-wired
1.5
35
Ambient temperature during operating
-
-
Flush-mounted installation
Yes
Additional equipment possible
Yes
Number of poles total
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-
Rated impulse withstand voltage Uimp
8
Brands
Legrand
