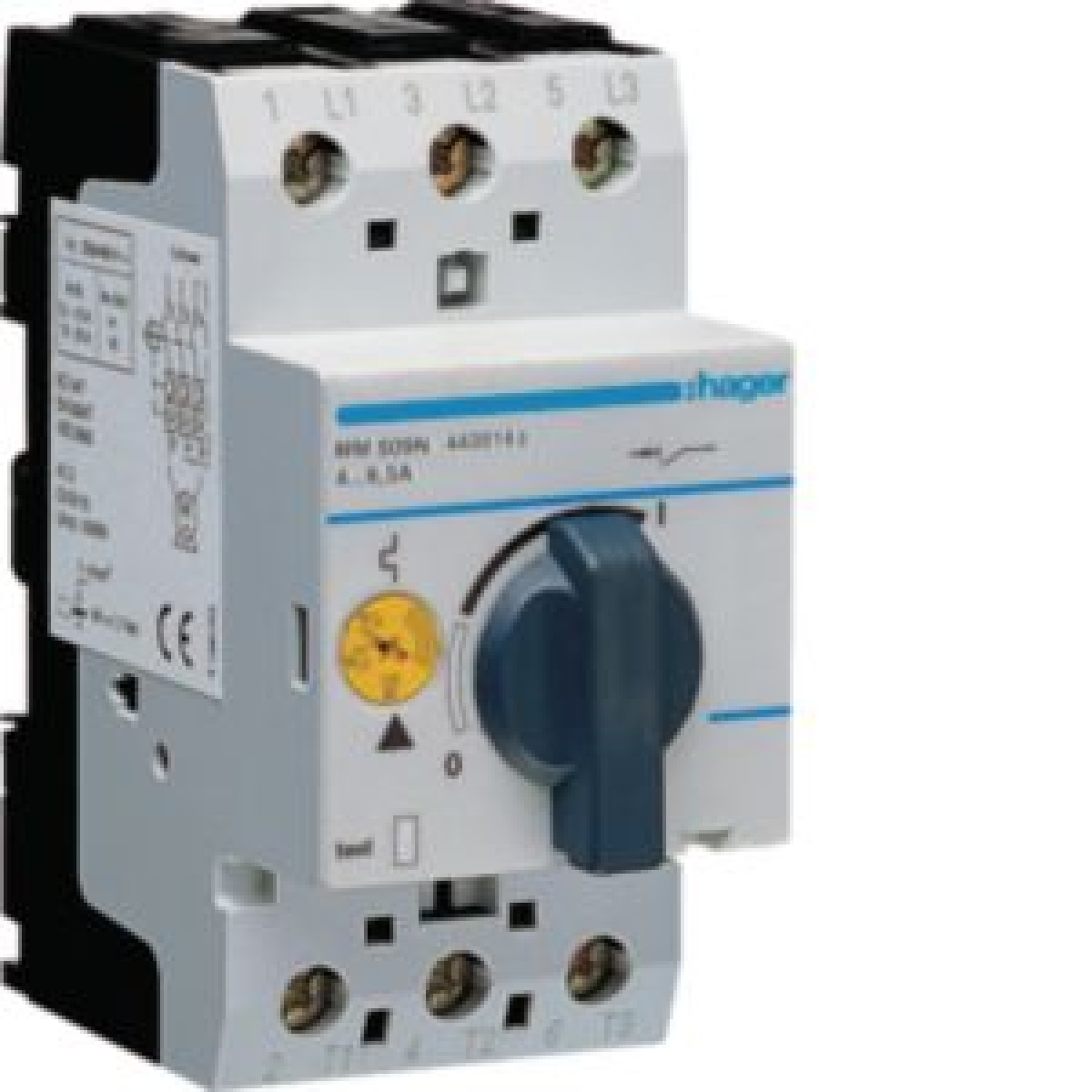

Disjuntor motor 46A 25M
Cutting and Protection Devices
Disjuntor motor 46A 25M
Manufacturer Ref:
MM509N
Nortécnica Ref:
71MM509N
EAN:
3250614435225
Description
Technical Information
Attributes
Largura
45
Altura
140
Profundidade
75
Rated operation power at AC-3, 400 V
2.2
With integrated auxiliary switch
No
Rated permanent current Iu
6.3
With integrated under voltage release
No
Number of poles
3
Rated operating voltage
690
690
Overload release current setting
4
6.3
Power loss
5.68
Degree of protection IP
IP20
With thermal overload protection
Yes
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
Switch off technique
Thermomagnetic
Rated operation power at AC-3, 230 V
1.1
Rated short-circuit breaking capacity Icu at 400 V, AC
150
Adjustment range undelayed short-circuit release
78.1
117.2
Phase failure sensitive
Yes
Device construction
Builtin device fixed builtin technique
Brands
Hager Sistemas Eléctricos Modulares SA
