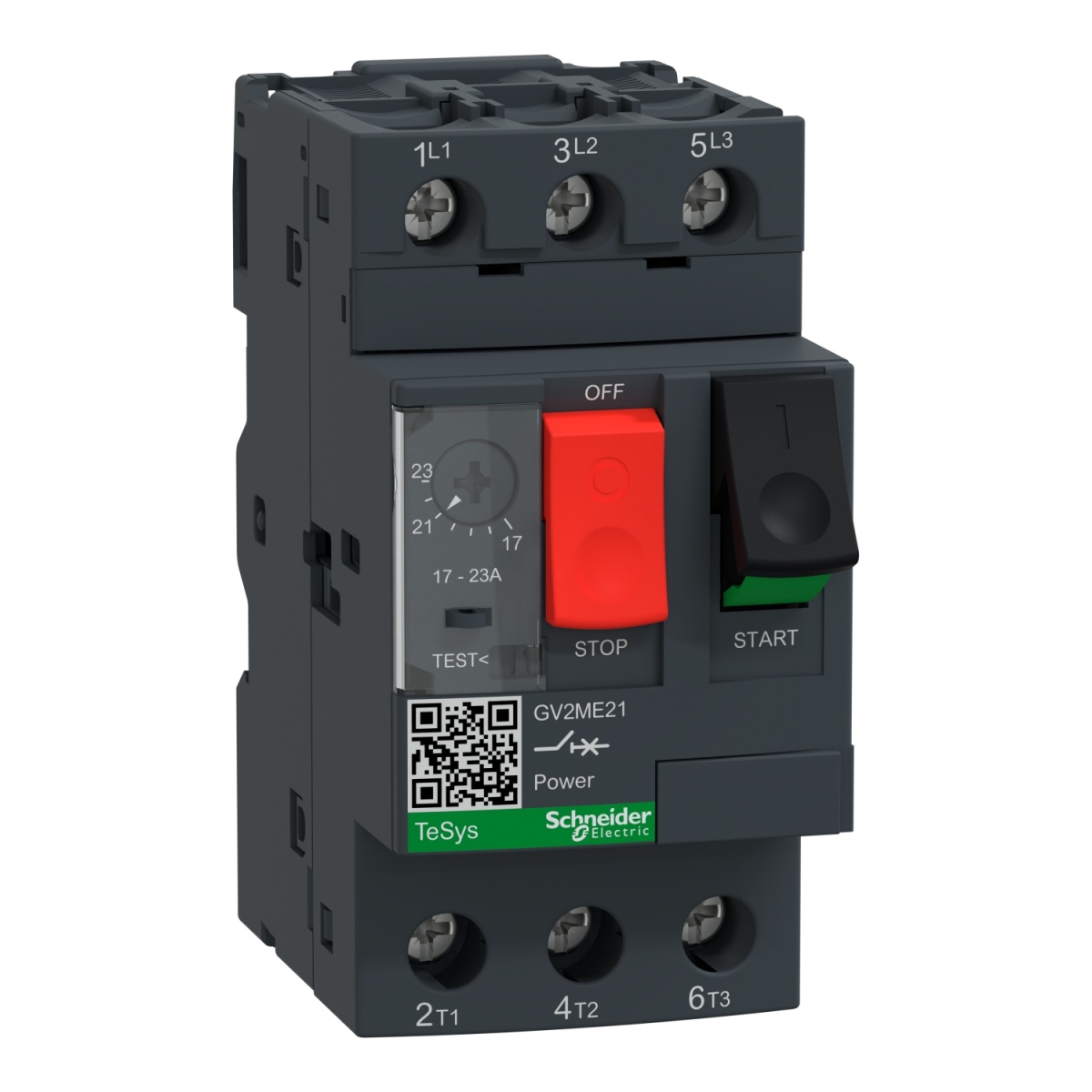

Disjuntor-motor magnetotérmico GV2ME - 1723A
Cutting and Protection Devices
Disjuntor-motor magnetotérmico GV2ME - 1723A
Manufacturer Ref:
GV2ME21
Nortécnica Ref:
52GV2ME21
EAN:
3389110343212
Description
Technical Information
Attributes
Width
45
Height
89
Depth
78.2
Rated operation power at AC-3, 400 V
9
With integrated auxiliary switch
No
Rated permanent current Iu
23
With integrated under voltage release
No
Number of poles
3
Rated operating voltage
230
690
Overload release current setting
17
23
Power loss
2.5
Degree of protection IP
IP20
With thermal overload protection
Yes
Type of electrical connection of main circuit
Screw connection
Type of control element
Push button
Switch off technique
Thermomagnetic
Rated operation power at AC-3, 230 V
5.5
Rated short-circuit breaking capacity Icu at 400 V, AC
15
Adjustment range undelayed short-circuit release
327
327
Phase failure sensitive
Yes
Device construction
Complete device in housing
Brands
Schneider
Technical Sheet
