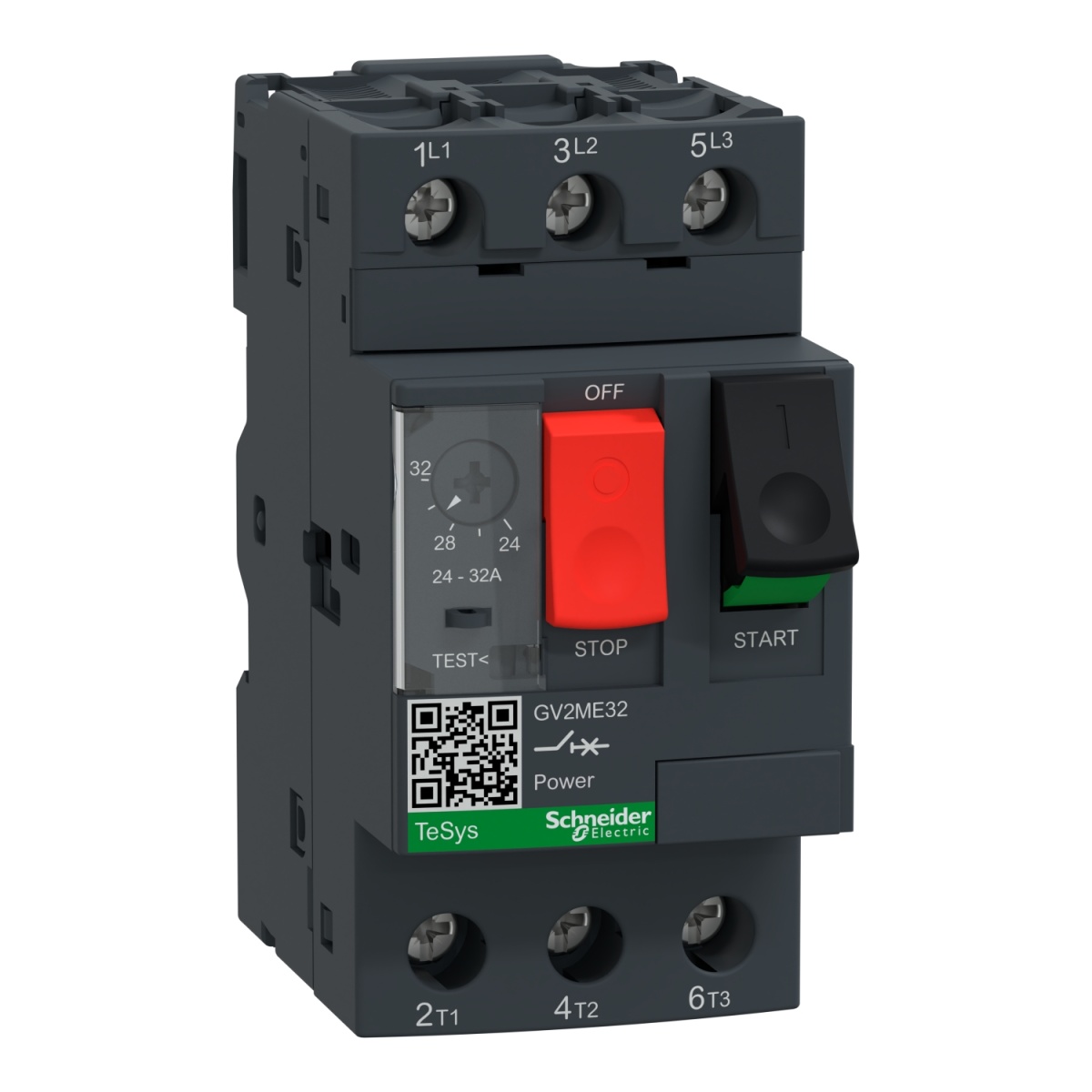

Disjuntor-motor magnetotérmico GV2ME - 2432A
Cutting and Protection Devices
Disjuntor-motor magnetotérmico GV2ME - 2432A
Manufacturer Ref:
GV2ME32
Nortécnica Ref:
52GV2ME32
EAN:
3389110343298
Description
Technical Information
Attributes
Width
45
Height
89
Depth
78.2
Rated operation power at AC-3, 400 V
15
With integrated auxiliary switch
No
Rated permanent current Iu
32
With integrated under voltage release
No
Number of poles
3
Rated operating voltage
230
690
Overload release current setting
24
32
Power loss
2.5
Degree of protection IP
IP20
With thermal overload protection
Yes
Type of electrical connection of main circuit
Screw connection
Type of control element
Push button
Switch off technique
Thermomagnetic
Rated operation power at AC-3, 230 V
7.5
Rated short-circuit breaking capacity Icu at 400 V, AC
10
Adjustment range undelayed short-circuit release
416
416
Phase failure sensitive
Yes
Device construction
Complete device in housing
Brands
Schneider
Technical Sheet
