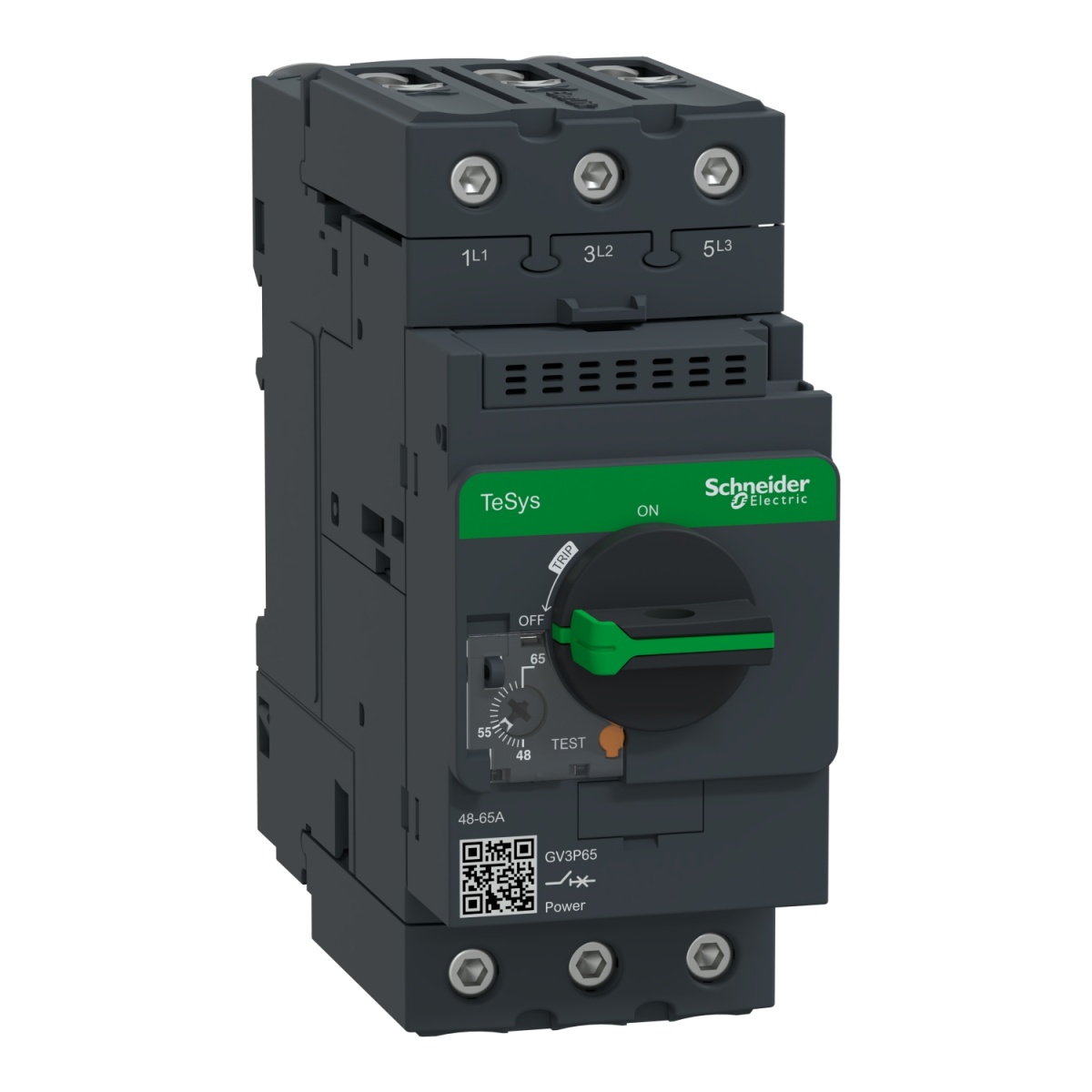

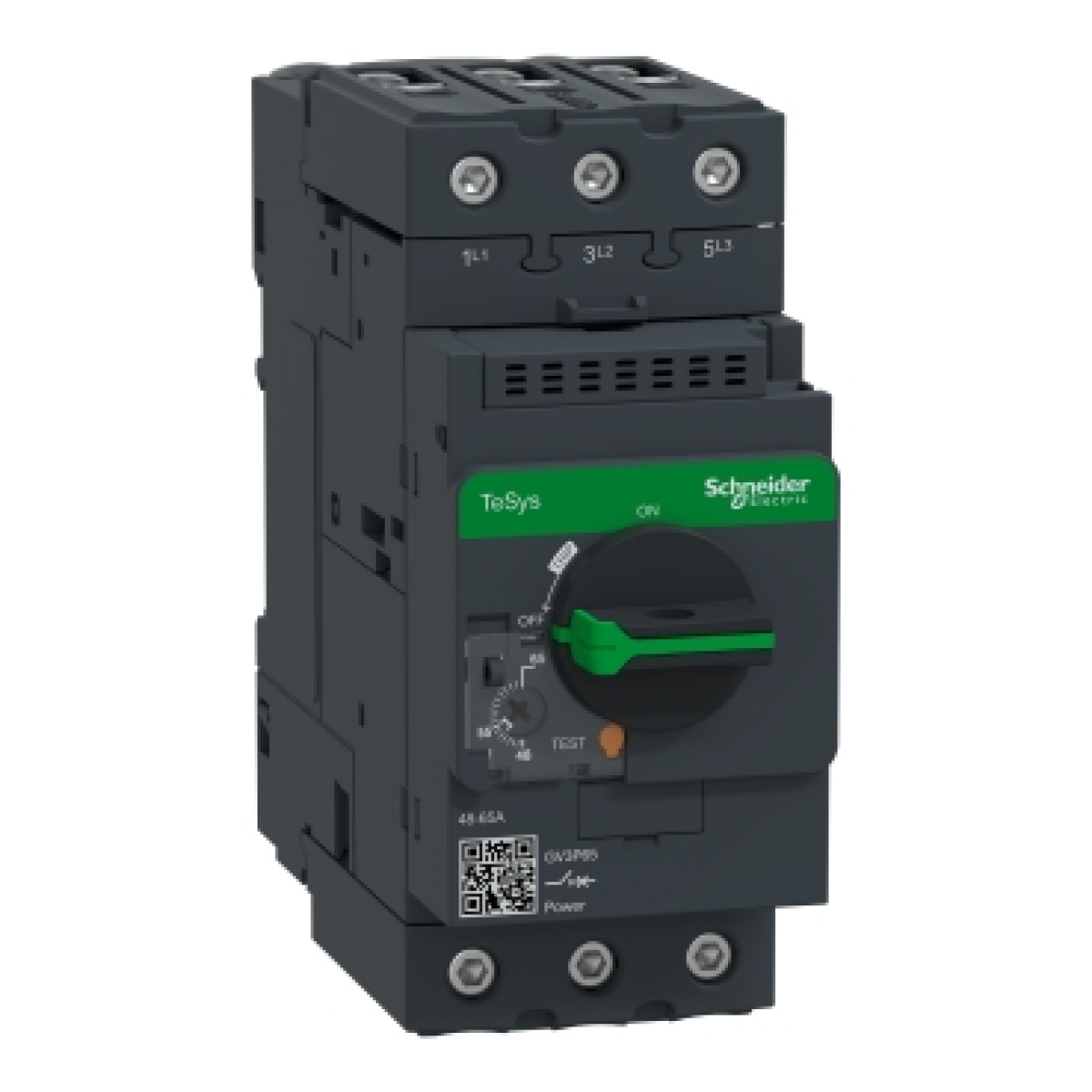

Disjuntor-motor magnetotérmico GV3 - 4865A
Cutting and Protection Devices
Disjuntor-motor magnetotérmico GV3 - 4865A
Manufacturer Ref:
GV3P65
Nortécnica Ref:
52GV3P65
EAN:
3389119405416
Description
Technical Information
Attributes
Largura
55
Altura
132
Profundidade
136
Rated operation power at AC-3, 400 V
30
With integrated auxiliary switch
No
Rated permanent current Iu
65
With integrated under voltage release
No
Número de polos
3
Rated operating voltage
690
690
Overload release current setting
48
65
Potência dissipada
8
Degree of protection IP
IP20
With thermal overload protection
Yes
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
Switch off technique
Thermomagnetic
Rated operation power at AC-3, 230 V
18.5
Rated short-circuit breaking capacity Icu at 400 V, AC
50
Adjustment range undelayed short-circuit release
910
910
Phase failure sensitive
Yes
Device construction
Complete device in housing
Brands
Schneider
Technical Sheet
