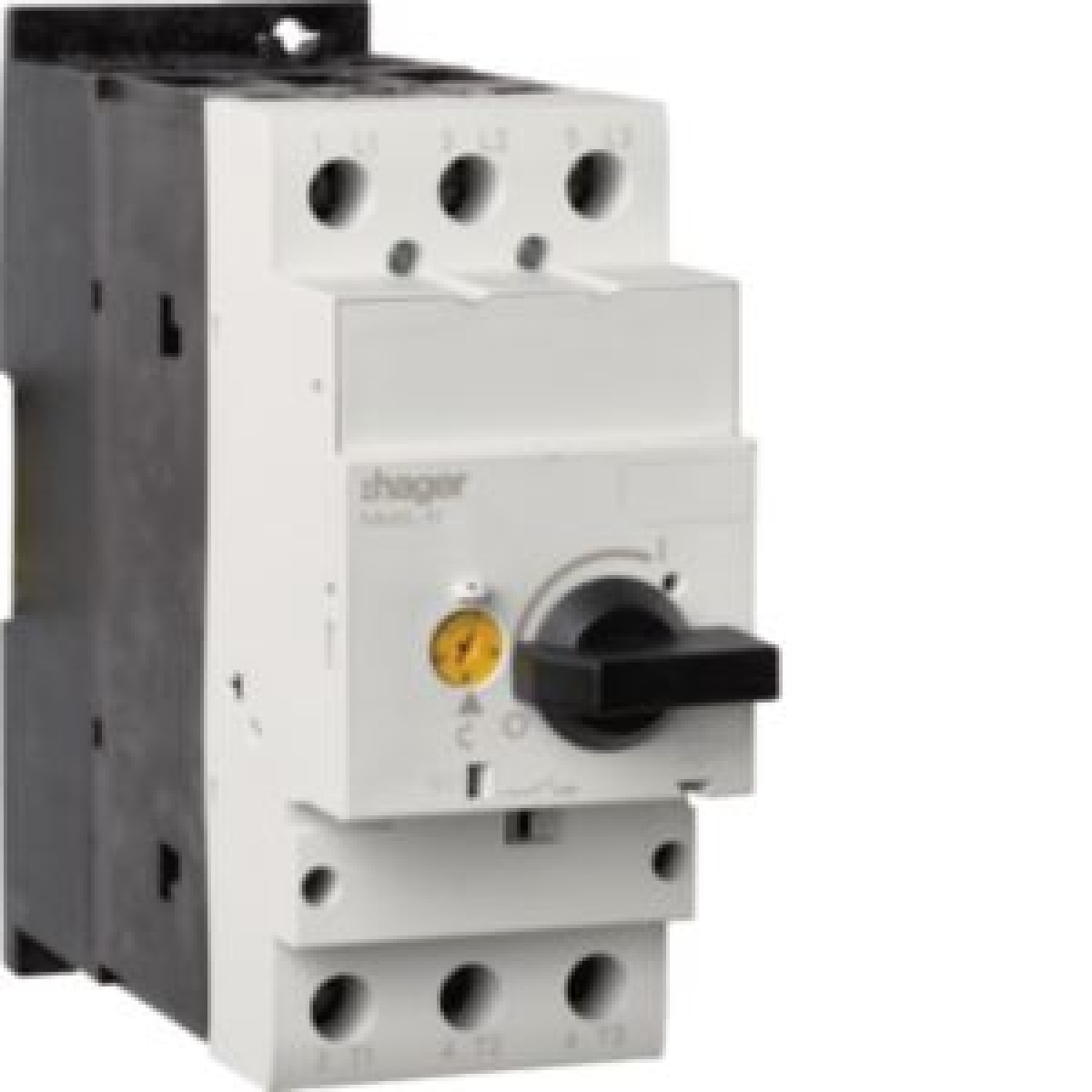

Disjuntor Motor Tamanho 2 1625A
Cutting and Protection Devices
Disjuntor Motor Tamanho 2 1625A
Manufacturer Ref:
MM521N
Nortécnica Ref:
EAN:
3250614322341
Description
Technical Information
Attributes
Largura
55
Altura
140
Profundidade
160
Rated operation power at AC-3, 400 V
12.5
With integrated auxiliary switch
No
Rated permanent current Iu
25
With integrated under voltage release
No
Number of poles
3
Rated operating voltage
690
690
Overload release current setting
16
25
Power loss
14.10
Degree of protection IP
IP20
With thermal overload protection
Yes
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
Switch off technique
Thermomagnetic
Rated operation power at AC-3, 230 V
5.5
Rated short-circuit breaking capacity Icu at 400 V, AC
100
Adjustment range undelayed short-circuit release
198.4
465
Phase failure sensitive
Yes
Device construction
Builtin device fixed builtin technique
Brands
Hager Sistemas Eléctricos Modulares SA
