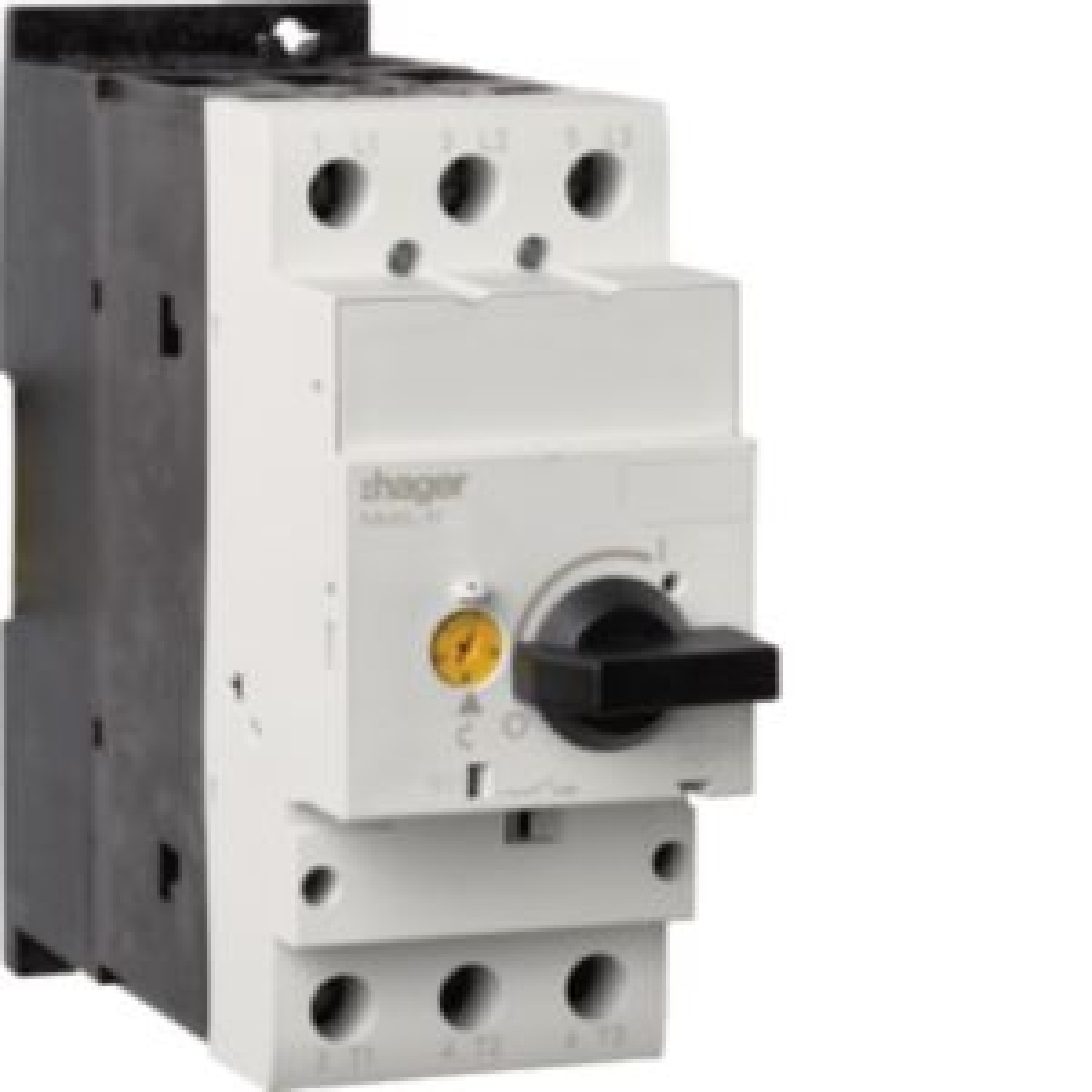

Disjuntor Motor Tamanho 2 2532A
Cutting and Protection Devices
Disjuntor Motor Tamanho 2 2532A
Manufacturer Ref:
MM522N
Nortécnica Ref:
EAN:
3250614322358
Description
Technical Information
Attributes
Largura
55
Altura
140
Profundidade
160
Rated operation power at AC-3, 400 V
15
With integrated auxiliary switch
No
Rated permanent current Iu
32
With integrated under voltage release
No
Number of poles
3
Rated operating voltage
690
690
Overload release current setting
25
32
Power loss
14.70
Degree of protection IP
IP20
With thermal overload protection
Yes
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
Switch off technique
Thermomagnetic
Rated operation power at AC-3, 230 V
7.5
Rated short-circuit breaking capacity Icu at 400 V, AC
50
Adjustment range undelayed short-circuit release
310
595.2
Phase failure sensitive
Yes
Device construction
Builtin device fixed builtin technique
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
