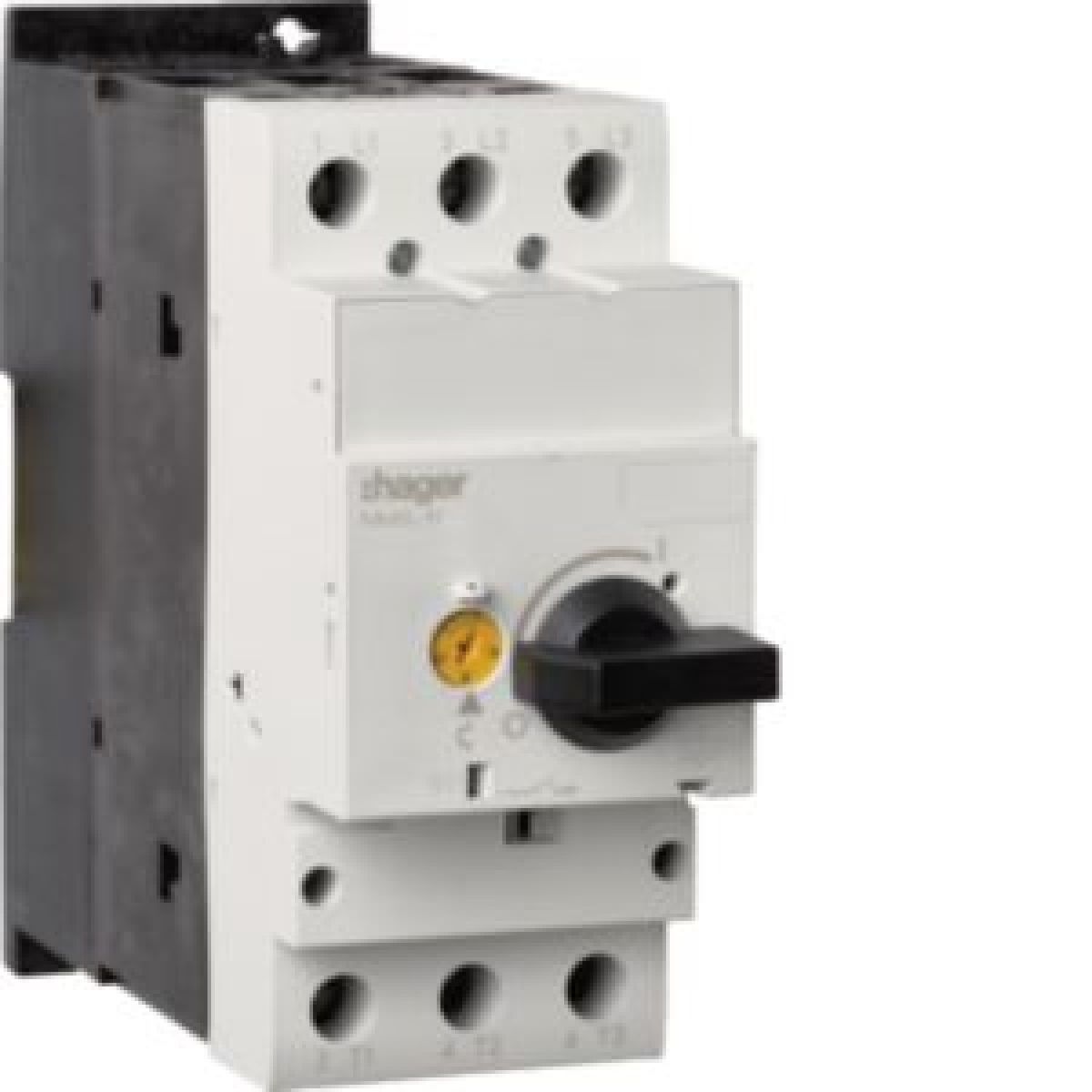

Disjuntor Motor Tamanho 2 5563A
Cutting and Protection Devices
Disjuntor Motor Tamanho 2 5563A
Manufacturer Ref:
MM526N
Nortécnica Ref:
EAN:
3250614322396
Description
Technical Information
Attributes
Largura
55
Altura
140
Profundidade
160
Rated operation power at AC-3, 400 V
34
With integrated auxiliary switch
No
Rated permanent current Iu
63
With integrated under voltage release
No
Number of poles
3
Rated operating voltage
690
690
Overload release current setting
55
63
Power loss
28.20
Degree of protection IP
IP20
With thermal overload protection
Yes
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
Switch off technique
Thermomagnetic
Rated operation power at AC-3, 230 V
18.5
Rated short-circuit breaking capacity Icu at 400 V, AC
50
Adjustment range undelayed short-circuit release
682
1171.8
Phase failure sensitive
Yes
Device construction
Builtin device fixed builtin technique
Brands
Hager Sistemas Eléctricos Modulares SA
