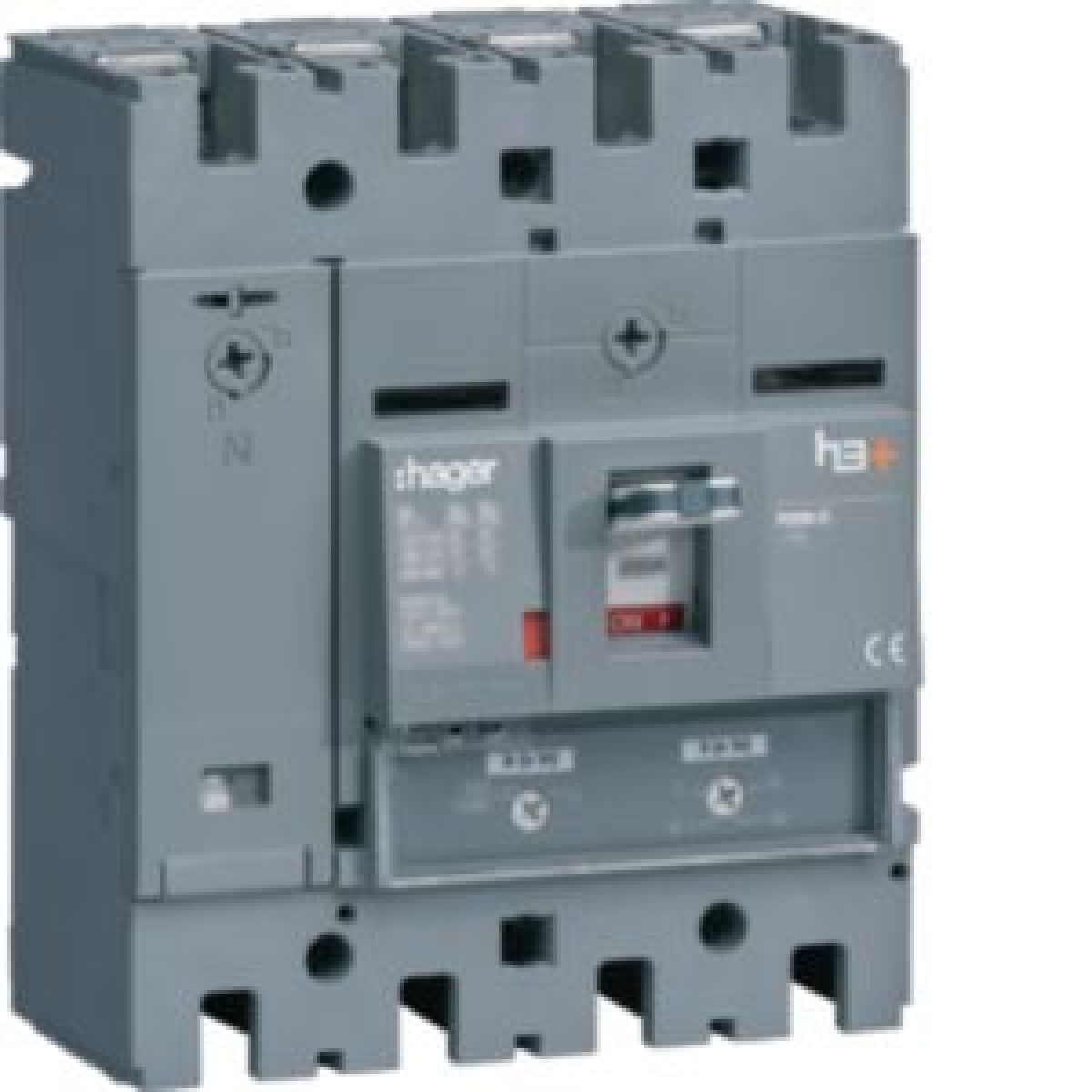

Disjuntor P250 TM 4P4D 250A 25kA
Cutting and Protection Devices
Disjuntor P250 TM 4P4D 250A 25kA
Manufacturer Ref:
HHT251DR
Nortécnica Ref:
71HHT251DR
EAN:
3250613211981
Description
Technical Information
Attributes
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
250
With integrated under voltage release
No
Number of poles
4
Overload release current setting
160
250
Number of auxiliary contacts as change-over contact
0
Rated voltage
220
690
Power loss
50.7
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
25
Adjustment range short-term delayed short-circuit release
-
Adjustment range undelayed short-circuit release
1500
2500
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
Yes
Device construction
Builtin device fixed builtin technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
