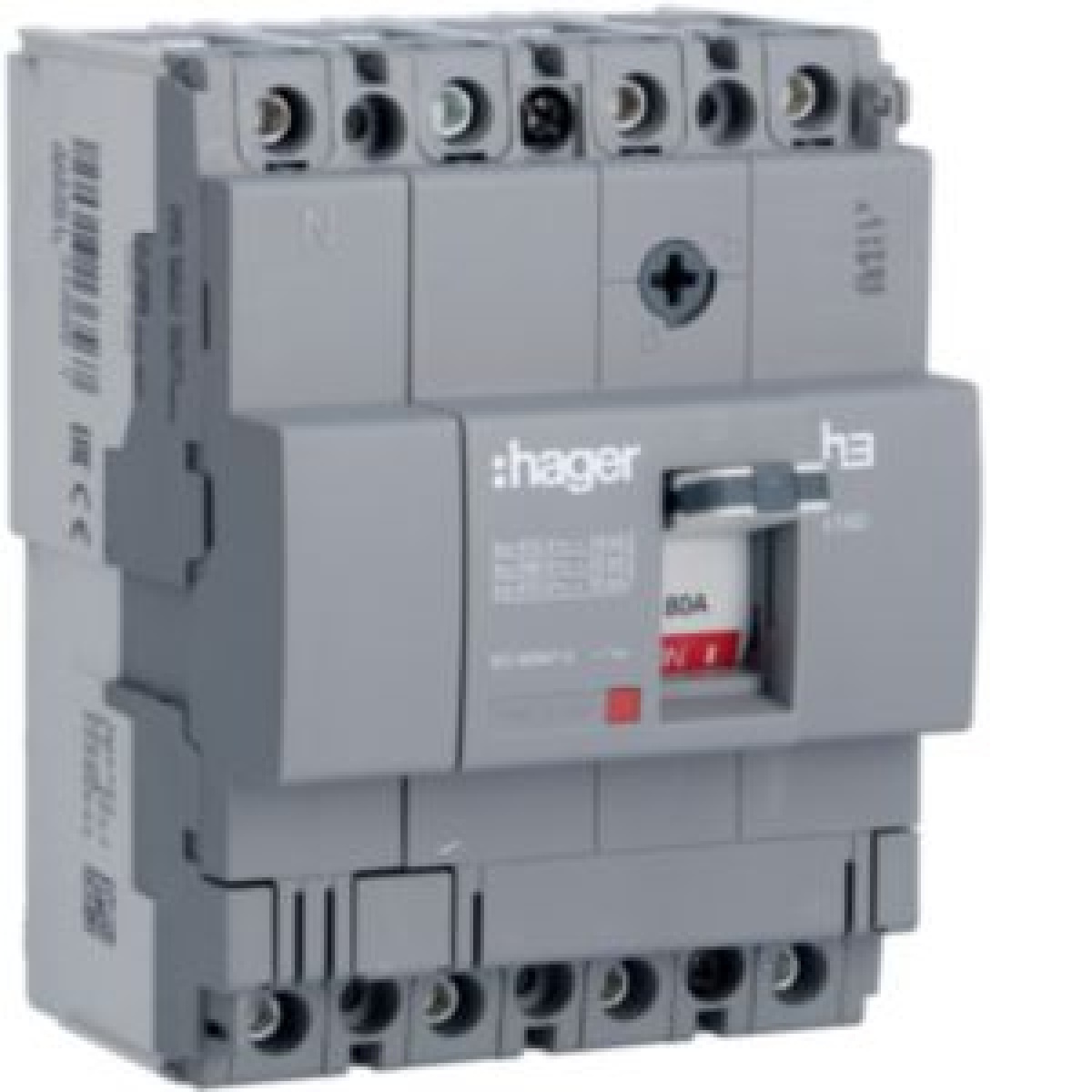

Disjuntor x160 TM 4P4D 80A 18kA
Cutting and Protection Devices
Disjuntor x160 TM 4P4D 80A 18kA
Manufacturer Ref:
HDA081L
Nortécnica Ref:
71HDA081L
EAN:
3250613136567
Description
Technical Information
Attributes
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
80
With integrated under voltage release
No
Number of poles
4
Overload release current setting
80
80
Number of auxiliary contacts as change-over contact
0
Rated voltage
220
415
Power loss
18.9
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
18
Adjustment range short-term delayed short-circuit release
-
Adjustment range undelayed short-circuit release
1000
1000
Suitable for DIN rail top hat rail mounting
Yes
Integrated earth fault protection
No
Motor drive optional
No
Device construction
Builtin device fixed builtin technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
Hager Sistemas Eléctricos Modulares SA
