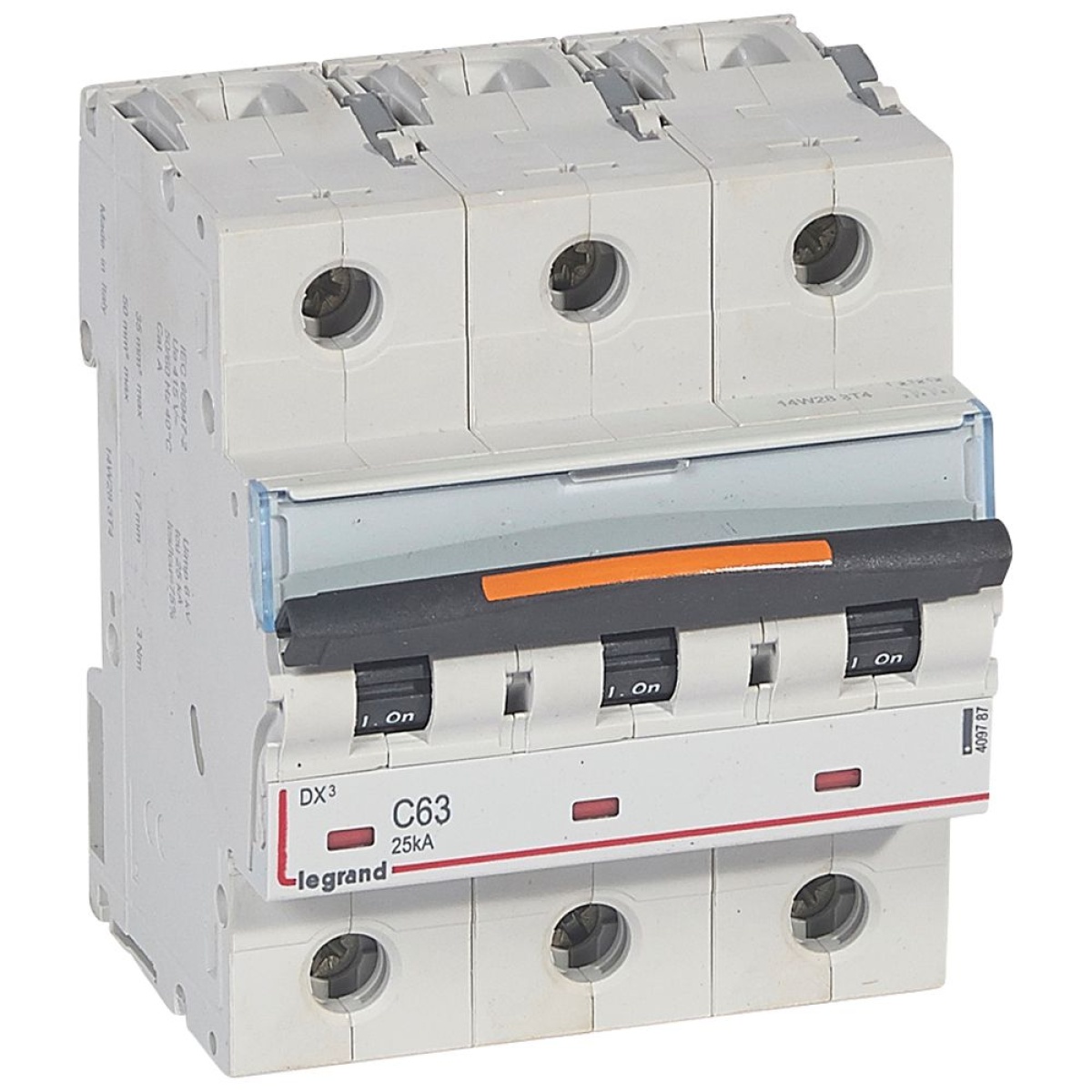

Disjuntores DX3 - 25kA - 3P - 400 V - 63 A - curva C - 4,5 módulos
Cutting and Protection Devices
Disjuntores DX3 - 25kA - 3P - 400 V - 63 A - curva C - 4,5 módulos
Manufacturer Ref:
409787
Nortécnica Ref:
3409787
EAN:
3245064097871
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
47
Rated current
63
EF000228
400
Frequency
50
60
Release characteristic
C
Rated insulation voltage Ui
500
Current limiting class
-
Overvoltage category
-
Pollution degree
3
Width in number of modular spacings
4.5
Explosion-proof
No
Power loss
-
Degree of protection IP
IP20
Number of protected poles
3
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
1.5
50
Connectable conductor cross section multi-wired
1.5
35
Ambient temperature during operating
-25
70
Flush-mounted installation
Yes
Additional equipment possible
Yes
Number of poles total
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25
Rated impulse withstand voltage Uimp
6
Brands
Legrand
