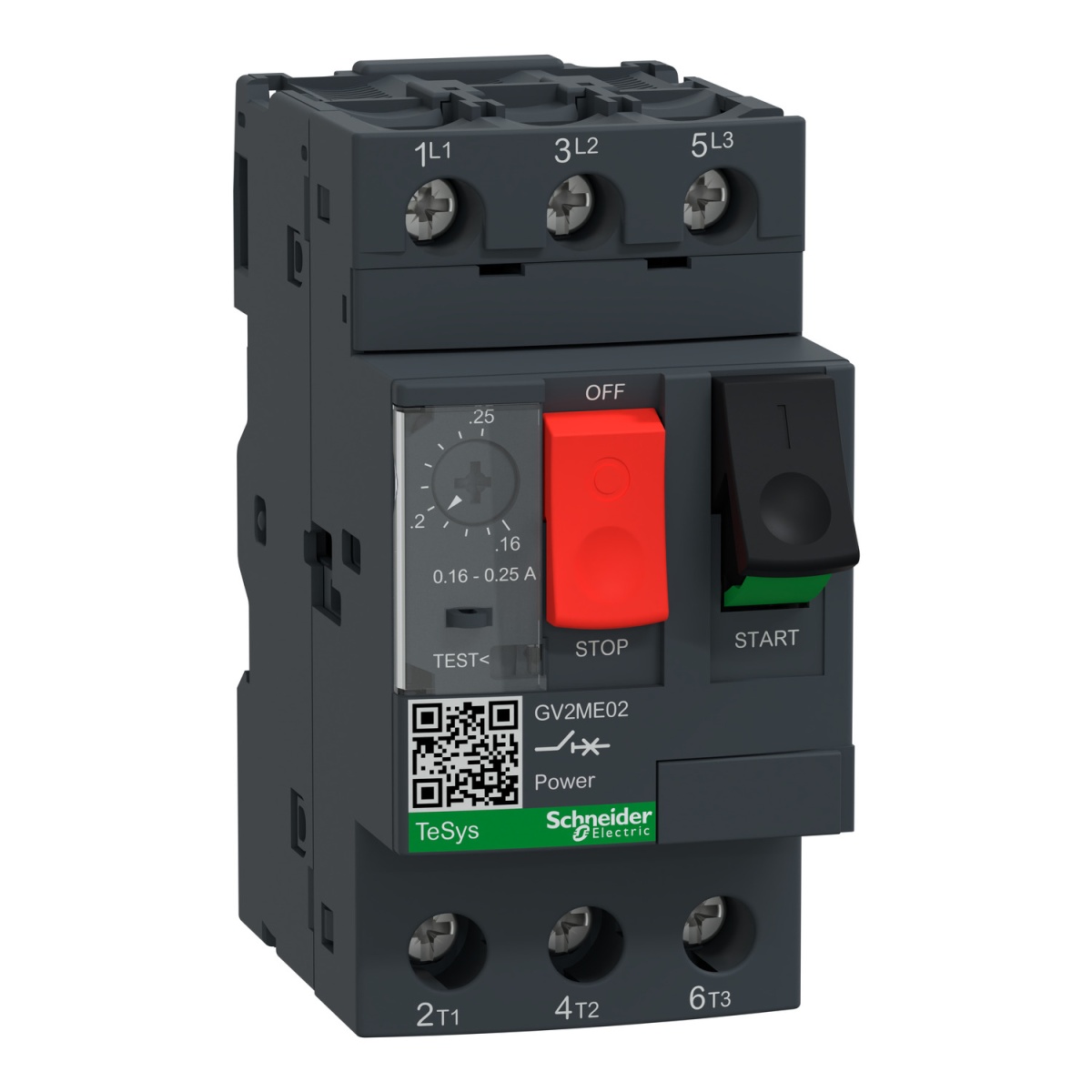

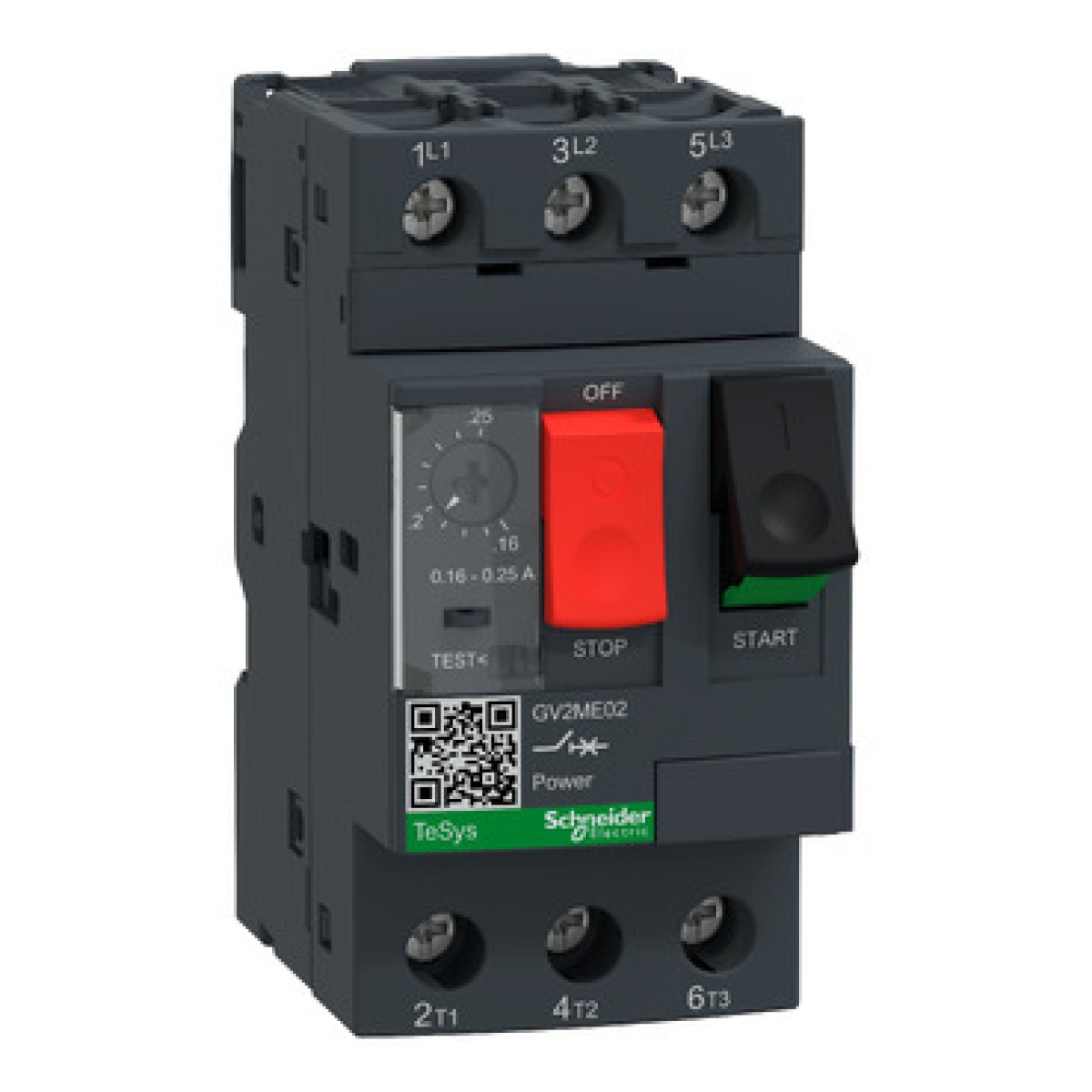

Disjuntores-motor magnetotérmicos GV2ME 0,160,25A
Cutting and Protection Devices
Disjuntores-motor magnetotérmicos GV2ME 0,160,25A
Manufacturer Ref:
GV2ME02
Nortécnica Ref:
52GV2ME02
EAN:
3389110342970
Description
Technical Information
Attributes
Largura
45
Altura
89
Profundidade
78.2
Rated operation power at AC-3, 400 V
0.06
With integrated auxiliary switch
No
Rated permanent current Iu
0.25
With integrated under voltage release
No
Número de polos
3
Rated operating voltage
690
690
Overload release current setting
0.16
0.25
Potência dissipada
2.5
Degree of protection IP
IP20
With thermal overload protection
Yes
Type of electrical connection of main circuit
Screw connection
Type of control element
Push button
Switch off technique
Thermomagnetic
Rated operation power at AC-3, 230 V
0.037
Rated short-circuit breaking capacity Icu at 400 V, AC
100
Adjustment range undelayed short-circuit release
2.4
2.4
Phase failure sensitive
Yes
Device construction
Complete device in housing
Brands
Schneider
