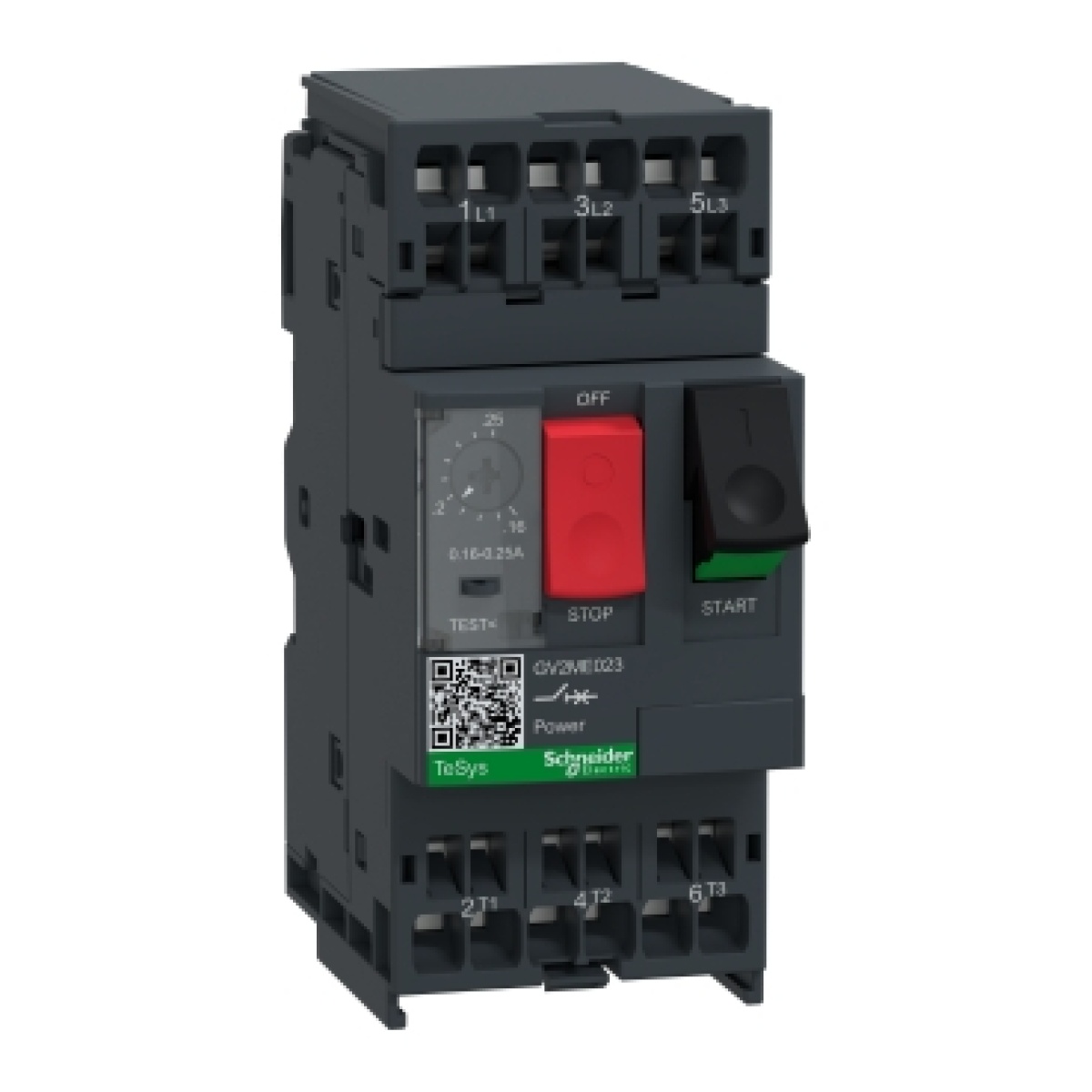

Disjuntores-motor magnetotérmicos GV2ME 0,160,25A com terminais de mola
Cutting and Protection Devices
Disjuntores-motor magnetotérmicos GV2ME 0,160,25A com terminais de mola
Manufacturer Ref:
GV2ME023
Nortécnica Ref:
EAN:
3389110346350
Description
Technical Information
Attributes
Largura
44.5
Altura
101
Profundidade
78.2
Rated operation power at AC-3, 400 V
0.06
With integrated auxiliary switch
No
Rated permanent current Iu
0.25
With integrated under voltage release
No
Número de polos
3
Rated operating voltage
690
690
Overload release current setting
0.16
0.25
Potência dissipada
2.5
Degree of protection IP
IP20
With thermal overload protection
Yes
Type of electrical connection of main circuit
Spring clamp connection
Type of control element
Push button
Switch off technique
Thermomagnetic
Rated operation power at AC-3, 230 V
0.037
Rated short-circuit breaking capacity Icu at 400 V, AC
100
Adjustment range undelayed short-circuit release
2.4
2.4
Phase failure sensitive
Yes
Device construction
Complete device in housing
Brands
Schneider
