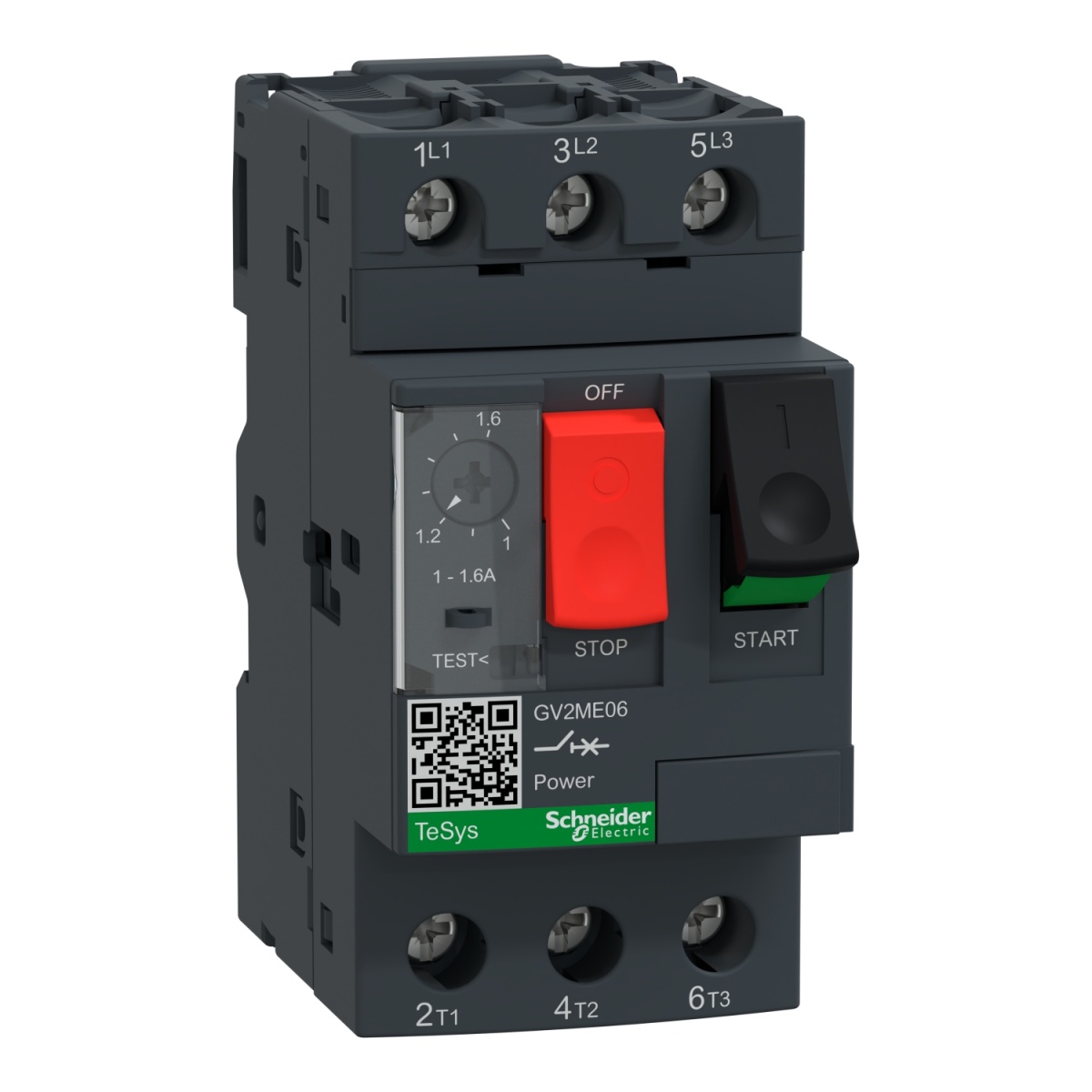

Disjuntores-motor magnetotérmicos GV2ME 11,6A
Cutting and Protection Devices
Disjuntores-motor magnetotérmicos GV2ME 11,6A
Manufacturer Ref:
GV2ME06
Nortécnica Ref:
52GV2ME06
EAN:
3389110343052
Description
Technical Information
Attributes
Width
45
Height
89
Depth
78.2
Rated operation power at AC-3, 400 V
0.55
With integrated auxiliary switch
No
Rated permanent current Iu
1.6
With integrated under voltage release
No
Number of poles
3
Rated operating voltage
230
690
Overload release current setting
1
1.6
Power loss
2.5
Degree of protection IP
IP20
With thermal overload protection
Yes
Type of electrical connection of main circuit
Screw connection
Type of control element
Push button
Switch off technique
Thermomagnetic
Rated operation power at AC-3, 230 V
0.25
Rated short-circuit breaking capacity Icu at 400 V, AC
100
Adjustment range undelayed short-circuit release
22.5
22.5
Phase failure sensitive
Yes
Device construction
Complete device in housing
Brands
Schneider
