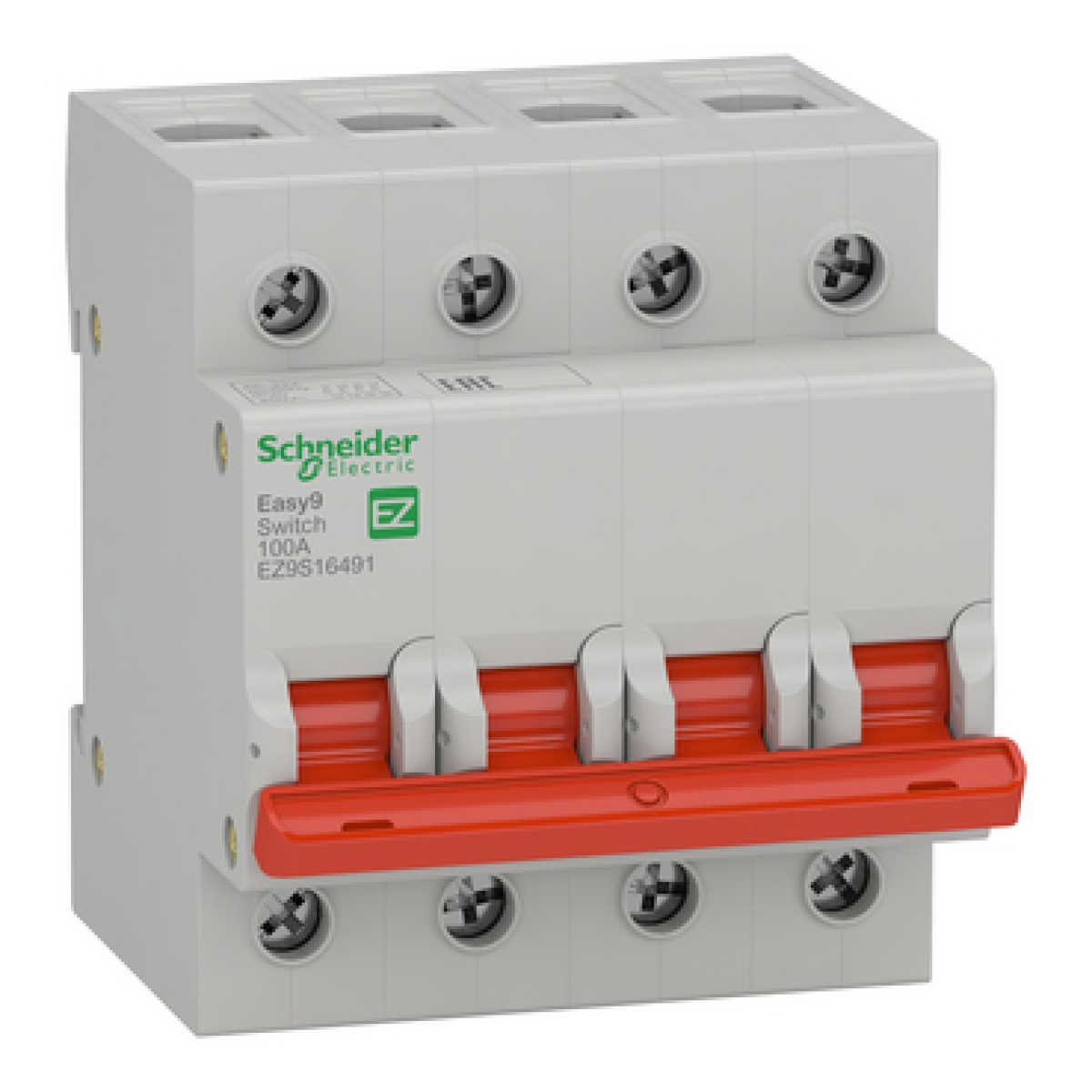

Easy9, Interruptor seccionador- 4P - 100 A - 400 V
Cutting and Protection Devices
Easy9, Interruptor seccionador- 4P - 100 A - 400 V
Manufacturer Ref:
EZ9S16491
Nortécnica Ref:
EAN:
3606480581229
Description
Technical Information
Attributes
Largura
72
Height
81
Depth
66.5
Housing colour
Grey
Rated operation power at AC-3, 400 V
-
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
100
Number of poles
4
Rated operating voltage
400
400
Conditioned rated short-circuit current Iq
5
Housing material
Plastic
Width in number of modular spacings
4
Degree of protection IP, front side
IP20
Number of auxiliary contacts as change-over contact
0
Number of switches
4
Interlockable
No
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Wing knob
Version as main switch
No
Version as safety switch
No
Version as maintenance-service switch
No
Rated operation power at AC-23, 400 V
-
Rated short-time withstand current lcw
1.2
Colour control element
Red
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
Yes
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
Yes
Max. rated operation voltage Ue AC
400
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
-
Degree of protection NEMA
-
With pre-assembled cabling
No
Suitable for floor mounting
No
Brands
SCHNEIDER
