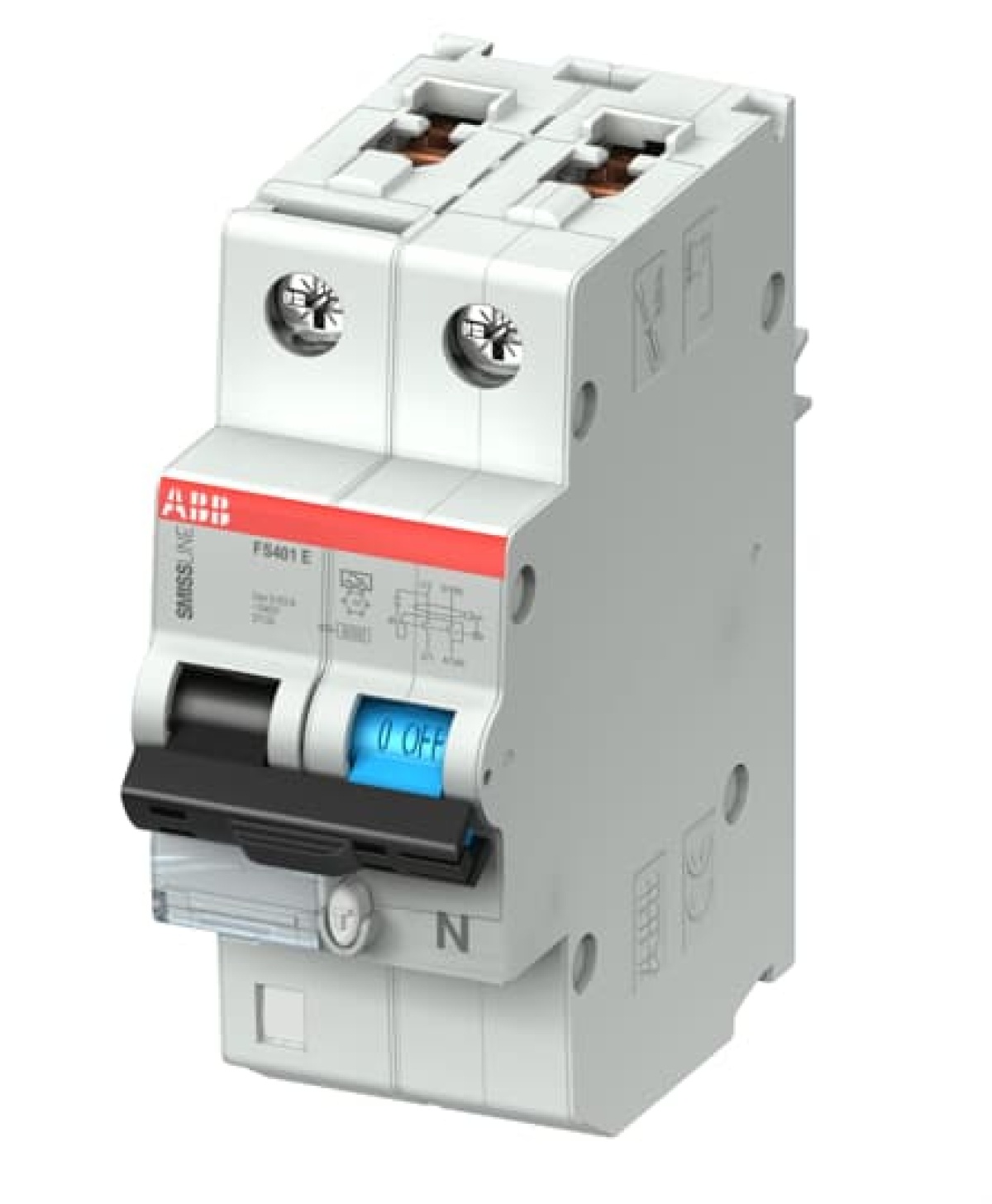

FS401E-B100.03 Residual Current Circuit Breaker with Overcurrent Protection
Cutting and Protection Devices
FS401E-B100.03 Residual Current Circuit Breaker with Overcurrent Protection
Manufacturer Ref:
2CCL562111E1105
Nortécnica Ref:
EAN:
7612271472825
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
91
Rated current
10
EF000228
240
Release characteristic
B
Rated insulation voltage Ui
500
Rated fault current
0.03
Leakage current type
A
Surge current capacity
0.25
Current limiting class
3
Overvoltage category
3
Pollution degree
2
Width in number of modular spacings
1
Power loss
-
Frequency
50/60 Hz
Degree of protection IP
IP20
Number of protected poles
1
Concurrently switching neutral conductor
No
Rated short-circuit breaking capacity according to IEC 60947-2
-
Connectable conductor cross section solid-core
0.75
35
Connectable conductor cross section multi-wired
0.75
10
With interlocking device
Yes
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Number of poles total
2
Anti-nuisance tripping version
-
Rated impulse withstand voltage Uimp
4
Rated short-circuit breaking capacity Icn according to EN 61009-1
6
Disconnection characteristic
Undelayed
Rated short-circuit breaking capacity according to EN 61009
6
Brands
ABB
