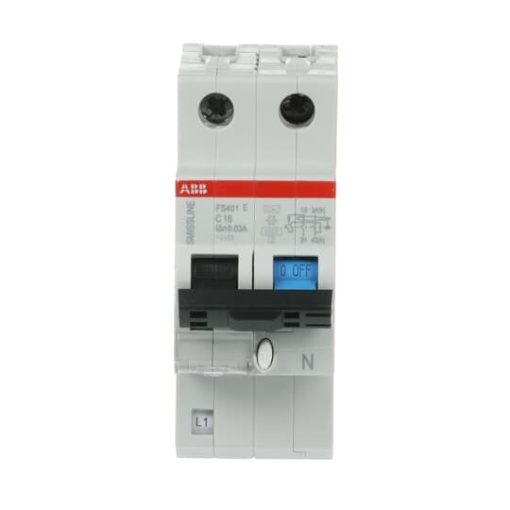

FS401E-C160.03 Residual Current Circuit Breaker with Overcurrent Protection
Cutting and Protection Devices
FS401E-C160.03 Residual Current Circuit Breaker with Overcurrent Protection
Manufacturer Ref:
2CCL562111E0164
Nortécnica Ref:
EAN:
7612270108589
Description
Technical Information
Attributes
Voltage type
-
Profundidade incorporada
91
Corrente nominal especificada
16
EF000228
240
Release characteristic
C
Tensão nominal de isolamento Ui
500
SensibilidadeCorrente nominal de defeito
0.03
Leakage current type
A
Resistência contra sobreintensidades
0.25
Current limiting class
3
Overvoltage category
3
Grau de poluição
2
Largura em número de módulos
1
Potência dissipada
2.7
Frequency
50/60 Hz
Degree of protection IP
IP20
Number of protected poles
1
Concurrently switching neutral conductor
No
Rated short-circuit breaking capacity according to IEC 60947-2
-
Connectable conductor cross section solid-core
-
-
Connectable conductor cross section multi-wired
0.75
25
With interlocking device
Yes
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Number of poles total
2
Anti-nuisance tripping version
-
Tensão estipulada suportável ao choque Uimp
4
Rated short-circuit breaking capacity Icn according to EN 61009-1
6
Disconnection characteristic
Undelayed
Rated short-circuit breaking capacity according to EN 61009
6
Brands
ABB
