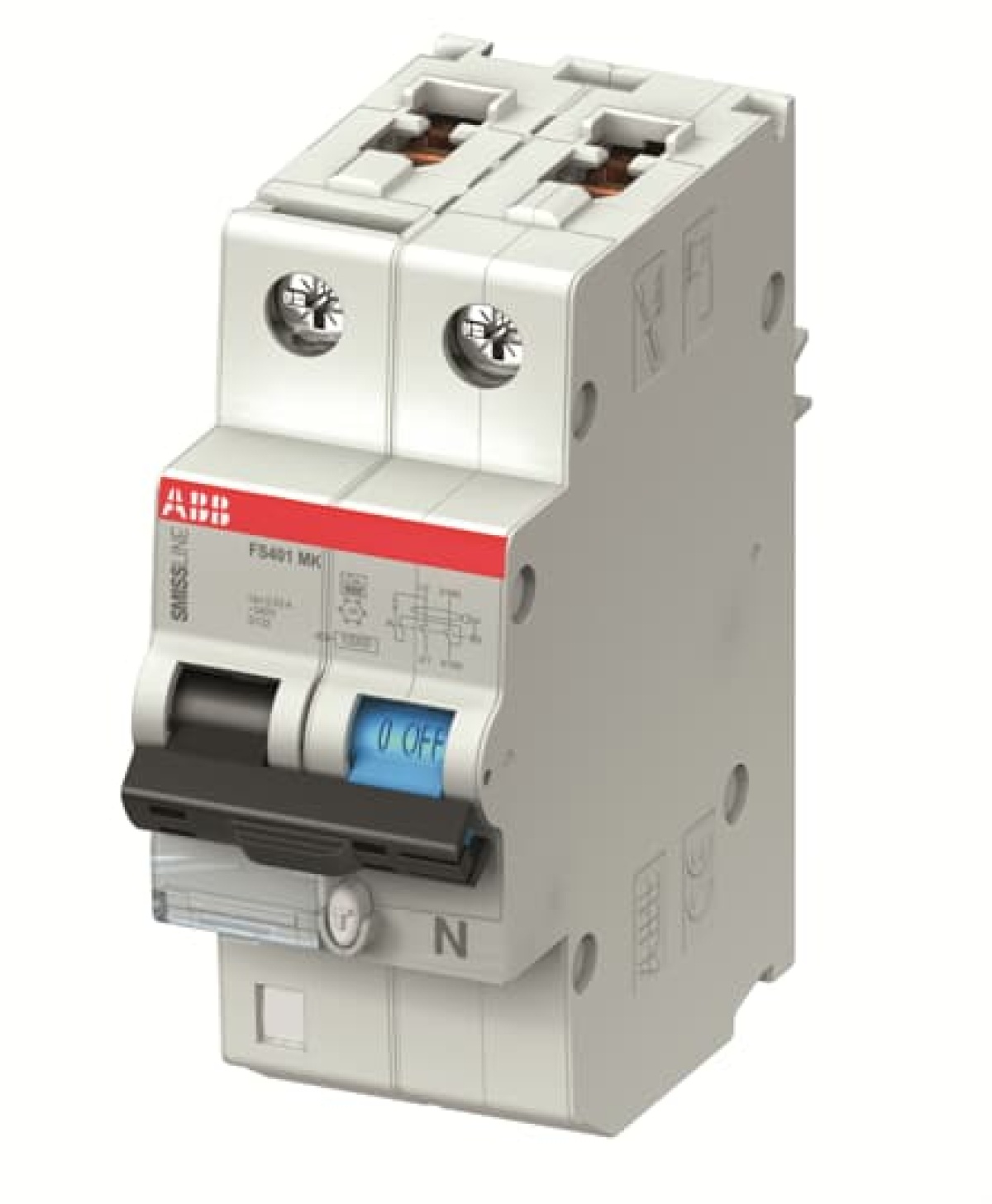

FS401M-B60.03 Residual Current Circuit Breaker with Overcurrent Protection
Cutting and Protection Devices
FS401M-B60.03 Residual Current Circuit Breaker with Overcurrent Protection
Manufacturer Ref:
2CCL562110E1065
Nortécnica Ref:
EAN:
7612271472641
Description
Technical Information
Attributes
Voltage type
AC
Profundidade incorporada
91
Corrente nominal especificada
6
EF000228
240
Release characteristic
B
Tensão nominal de isolamento Ui
500
SensibilidadeCorrente nominal de defeito
0.03
Leakage current type
A
Resistência contra sobreintensidades
0.25
Current limiting class
3
Overvoltage category
3
Grau de poluição
2
Largura em número de módulos
2
Potência dissipada
1.9
Frequency
50/60 Hz
Degree of protection IP
IP20
Number of protected poles
1
Concurrently switching neutral conductor
Yes
Rated short-circuit breaking capacity according to IEC 60947-2
25
Connectable conductor cross section solid-core
0.75
35
Connectable conductor cross section multi-wired
0.75
10
With interlocking device
Yes
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Number of poles total
2
Anti-nuisance tripping version
-
Tensão estipulada suportável ao choque Uimp
4
Rated short-circuit breaking capacity Icn according to EN 61009-1
10
Disconnection characteristic
Undelayed
Rated short-circuit breaking capacity according to EN 61009
10
Brands
ABB
Technical Sheet
