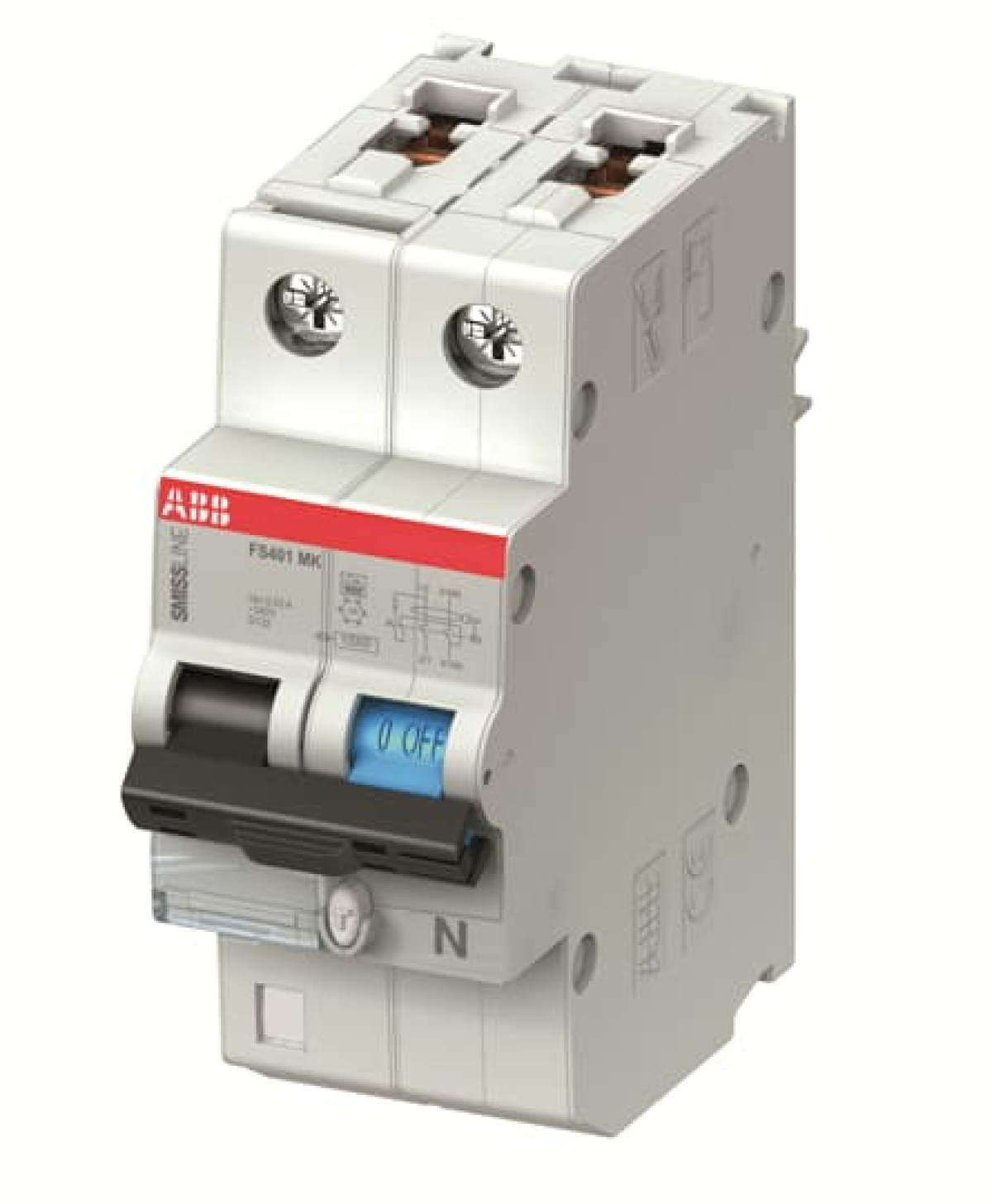

FS401MK-B250.03 Residual Current Circuit Breaker with Overcurrent Protection
Cutting and Protection Devices
FS401MK-B250.03 Residual Current Circuit Breaker with Overcurrent Protection
Manufacturer Ref:
2CCL562310E1255
Nortécnica Ref:
EAN:
7612271473006
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
91
Rated current
25
EF000228
240
Release characteristic
B
Rated insulation voltage Ui
500
Rated fault current
0.03
Leakage current type
F
Surge current capacity
3
Current limiting class
3
Overvoltage category
3
Pollution degree
2
Width in number of modular spacings
2
Power loss
4.4
Frequency
50/60 Hz
Degree of protection IP
IP20
Number of protected poles
1
Concurrently switching neutral conductor
Yes
Rated short-circuit breaking capacity according to IEC 60947-2
15
Connectable conductor cross section solid-core
0.75
35
Connectable conductor cross section multi-wired
0.75
10
With interlocking device
Yes
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Number of poles total
2
Anti-nuisance tripping version
-
Rated impulse withstand voltage Uimp
4
Rated short-circuit breaking capacity Icn according to EN 61009-1
10
Disconnection characteristic
Short-time delayed
Rated short-circuit breaking capacity according to EN 61009
10
Brands
ABB
