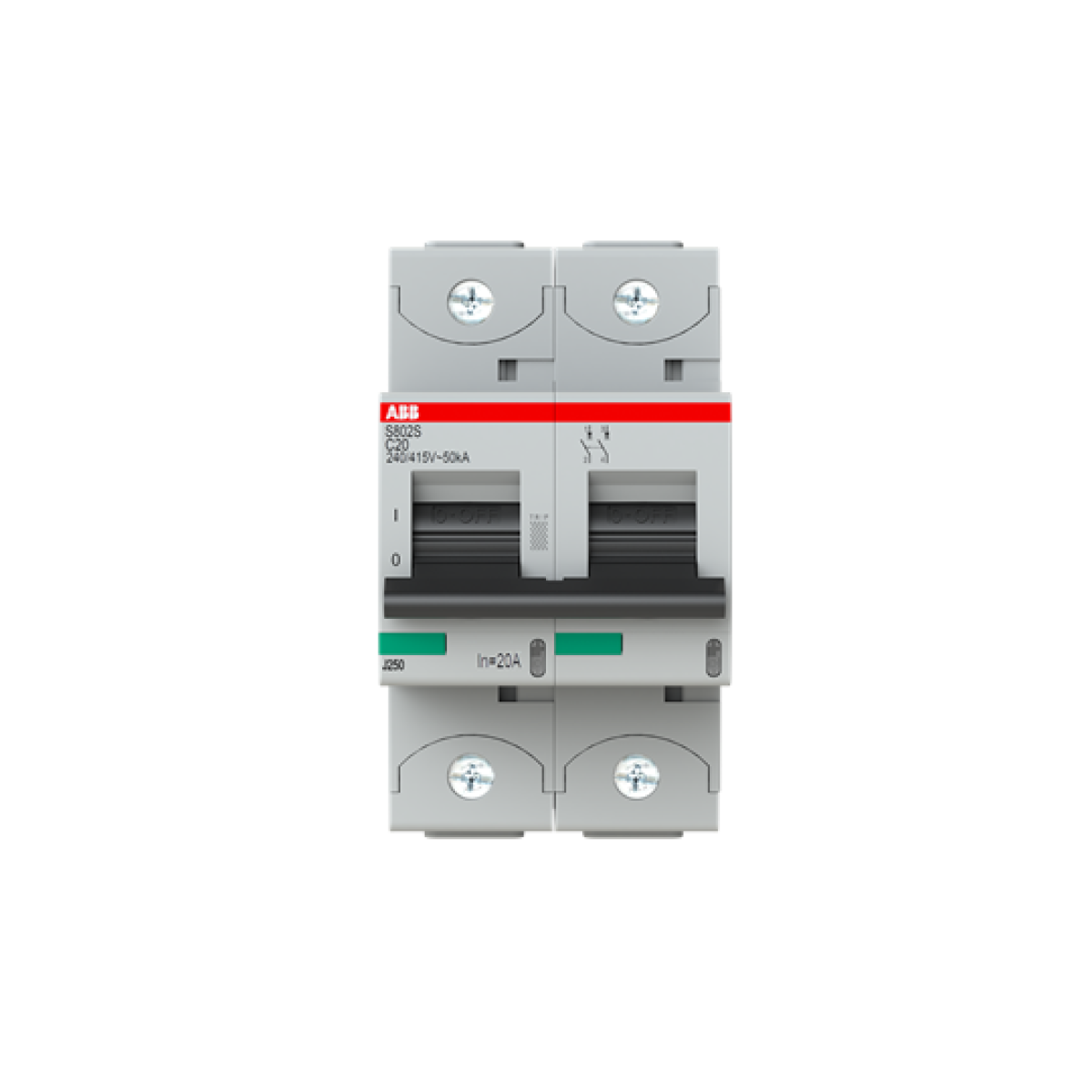

High Performance MCB
Cutting and Protection Devices
High Performance MCB
Manufacturer Ref:
2CCS862001R0204
Nortécnica Ref:
2701862001R0204
EAN:
7612271200633
Description
Technical Information
Attributes
Voltage type
Other
Built-in depth
82.5
Rated current
20
EF000228
400
Frequency
50
60
Release characteristic
C
Rated insulation voltage Ui
690
Current limiting class
3
Overvoltage category
4
Pollution degree
3
Width in number of modular spacings
3
Explosion-proof
No
Power loss
7
EF005474
IP20
Number of protected poles
2
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0
70
Connectable conductor cross section multi-wired
0
50
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
30
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50
Rated impulse withstand voltage Uimp
8
Brands
ABB
Technical Sheet
