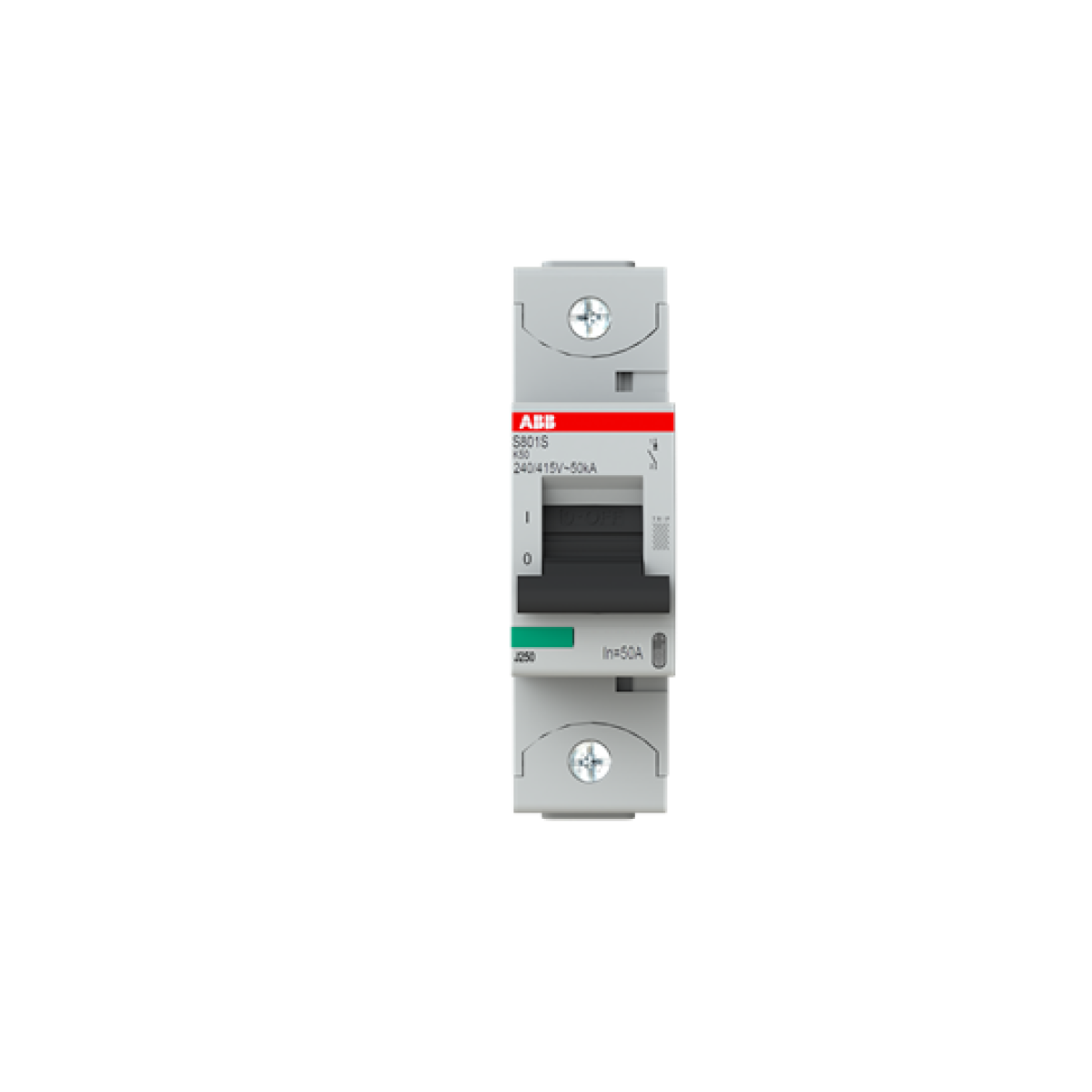

High Performance MCB
Cutting and Protection Devices
High Performance MCB
Manufacturer Ref:
2CCS861001R0577
Nortécnica Ref:
EAN:
7612271201517
Description
Technical Information
Attributes
Voltage type
Other
Built-in depth
82.5
Rated current
50
EF000228
230
Frequency
50
60
Release characteristic
K
Rated insulation voltage Ui
690
Current limiting class
3
Overvoltage category
4
Pollution degree
3
Width in number of modular spacings
1.5
Explosion-proof
No
Power loss
6.4
EF005474
IP20
Number of protected poles
1
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0
70
Connectable conductor cross section multi-wired
0
50
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
25
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
6
Rated impulse withstand voltage Uimp
8
Brands
ABB
Technical Sheet
