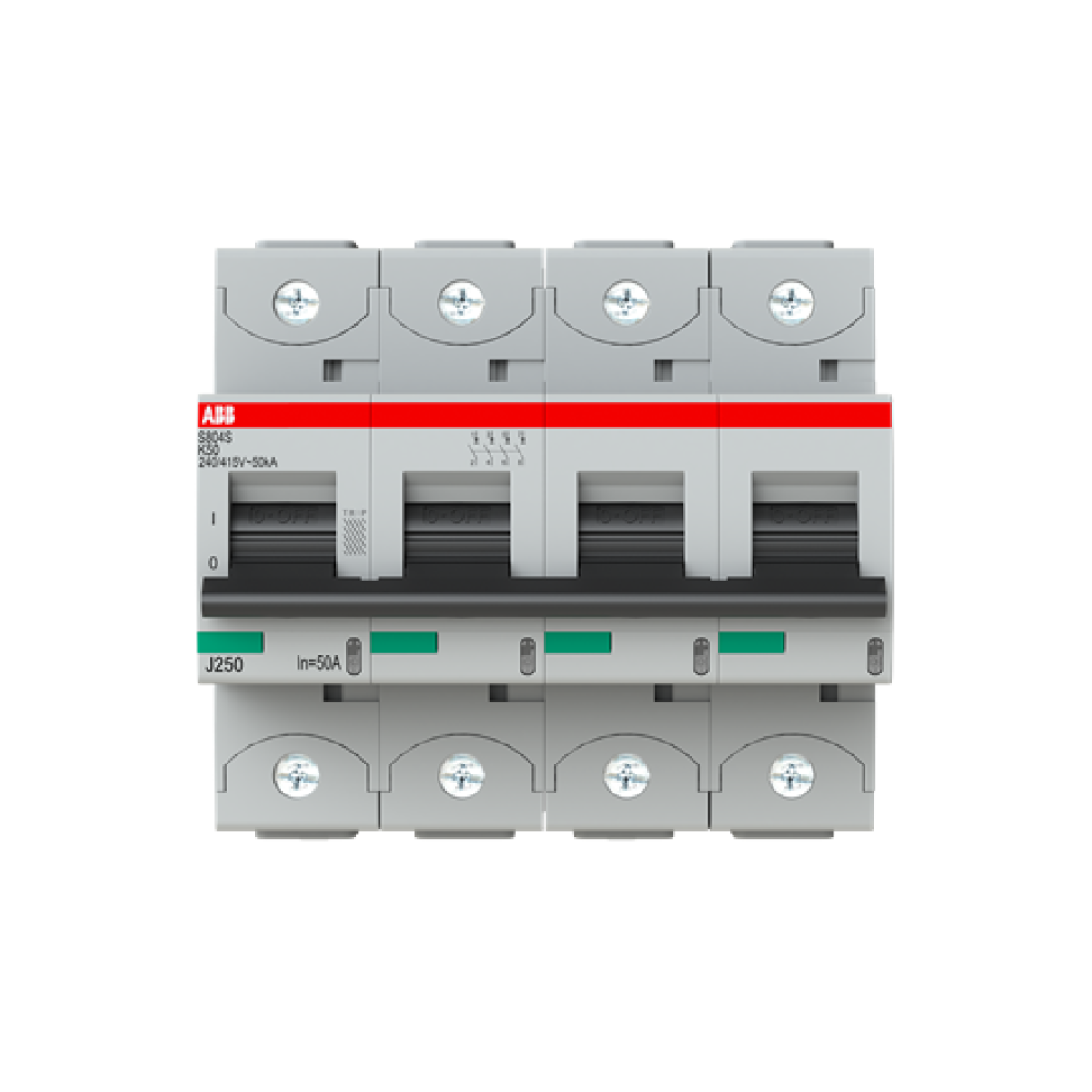

High Performance MCB
Cutting and Protection Devices
High Performance MCB
Manufacturer Ref:
2CCS864001R0577
Nortécnica Ref:
EAN:
7612271201876
Description
Technical Information
Attributes
Voltage type
Other
Profundidade incorporada
82.5
Corrente nominal especificada
50
EF000228
400
Frequency
50
60
Release characteristic
K
Tensão nominal de isolamento Ui
690
Current limiting class
3
Overvoltage category
4
Grau de poluição
3
Largura em número de módulos
6
Explosion-proof
No
Potência dissipada
17.2
Degree of protection IP
IP20
Number of protected poles
4
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0
70
Connectable conductor cross section multi-wired
0
50
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
4
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50
Tensão estipulada suportável ao choque Uimp
8
Brands
ABB
Technical Sheet
