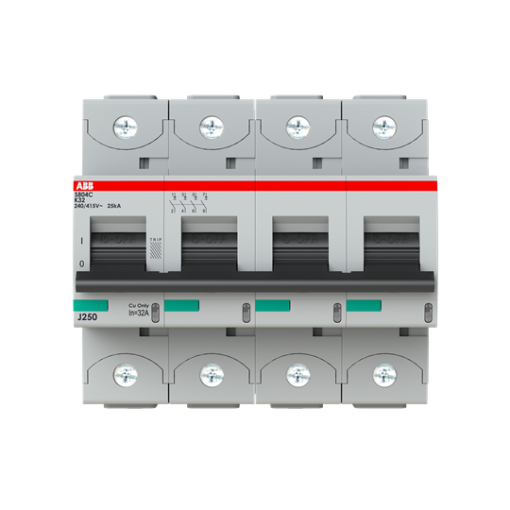

High Performance MCB
Cutting and Protection Devices
High Performance MCB
Manufacturer Ref:
2CCS884001R0537
Nortécnica Ref:
272CCS884001R0537
EAN:
7612271213039
Description
Technical Information
Attributes
Voltage type
Other
Built-in depth
82.5
Rated current
32
Rated voltage
400
Frequency
50
60
Release characteristic
K
Rated insulation voltage Ui
500
Current limiting class
3
Overvoltage category
4
Pollution degree
3
Largura em número de módulos
6
Explosion-proof
No
Power loss
12.8
Degree of protection IP
IP20
Number of protected poles
4
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0
70
Connectable conductor cross section multi-wired
0
50
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
4
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
15
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25
Rated impulse withstand voltage Uimp
8
Brands
ABB
