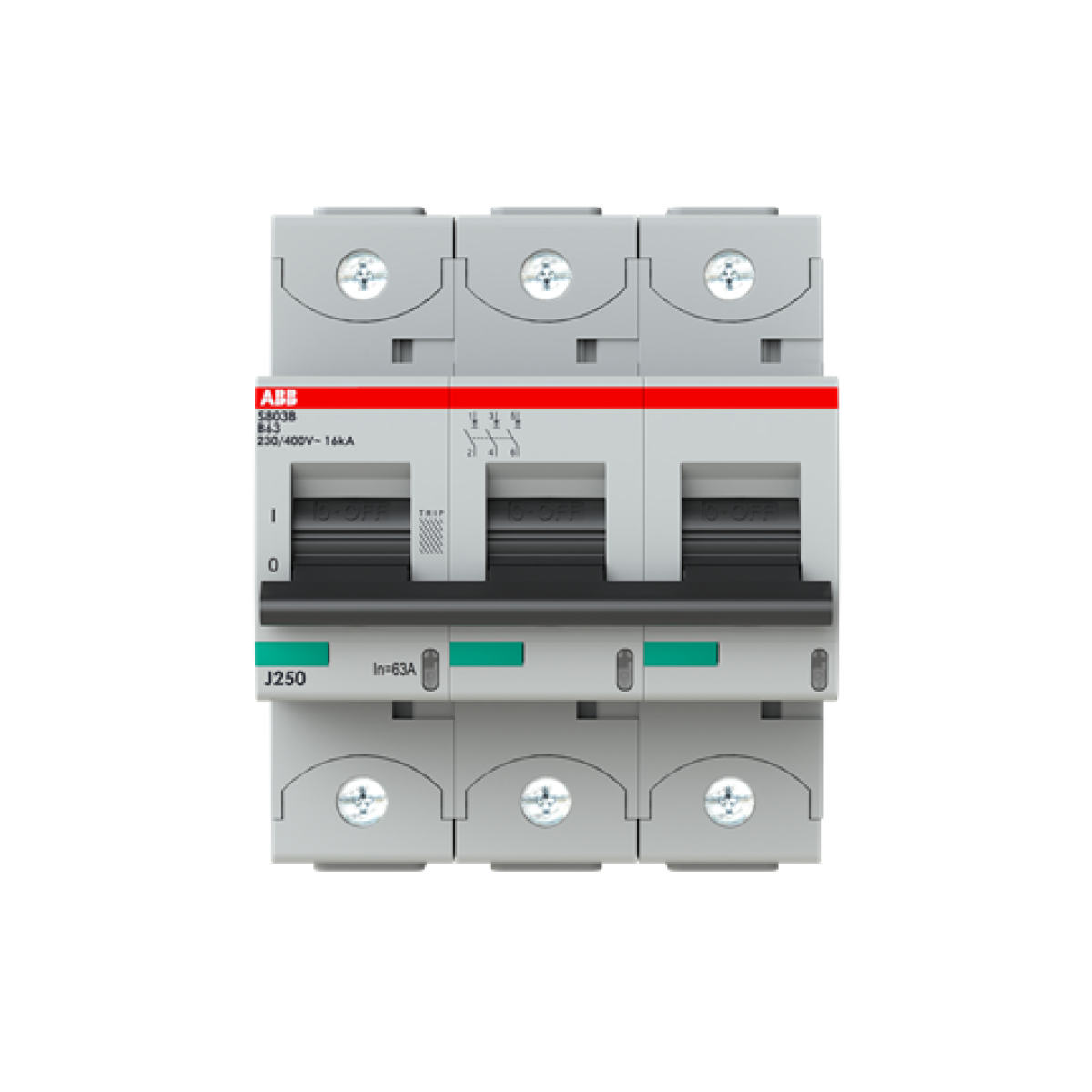

High Performance MCB
Cutting and Protection Devices
High Performance MCB
Manufacturer Ref:
2CCS813001R0635
Nortécnica Ref:
EAN:
7612271416638
Description
Technical Information
Attributes
Voltage type
Other
Built-in depth
82.5
Rated current
63
EF000228
400
Frequency
50
60
Release characteristic
B
Rated insulation voltage Ui
500
Current limiting class
3
Overvoltage category
3
Pollution degree
3
Width in number of modular spacings
4.5
Explosion-proof
No
Power loss
19.2
EF005474
IP20
Number of protected poles
3
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0
70
Connectable conductor cross section multi-wired
0
50
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
16
Rated impulse withstand voltage Uimp
6
Brands
ABB
