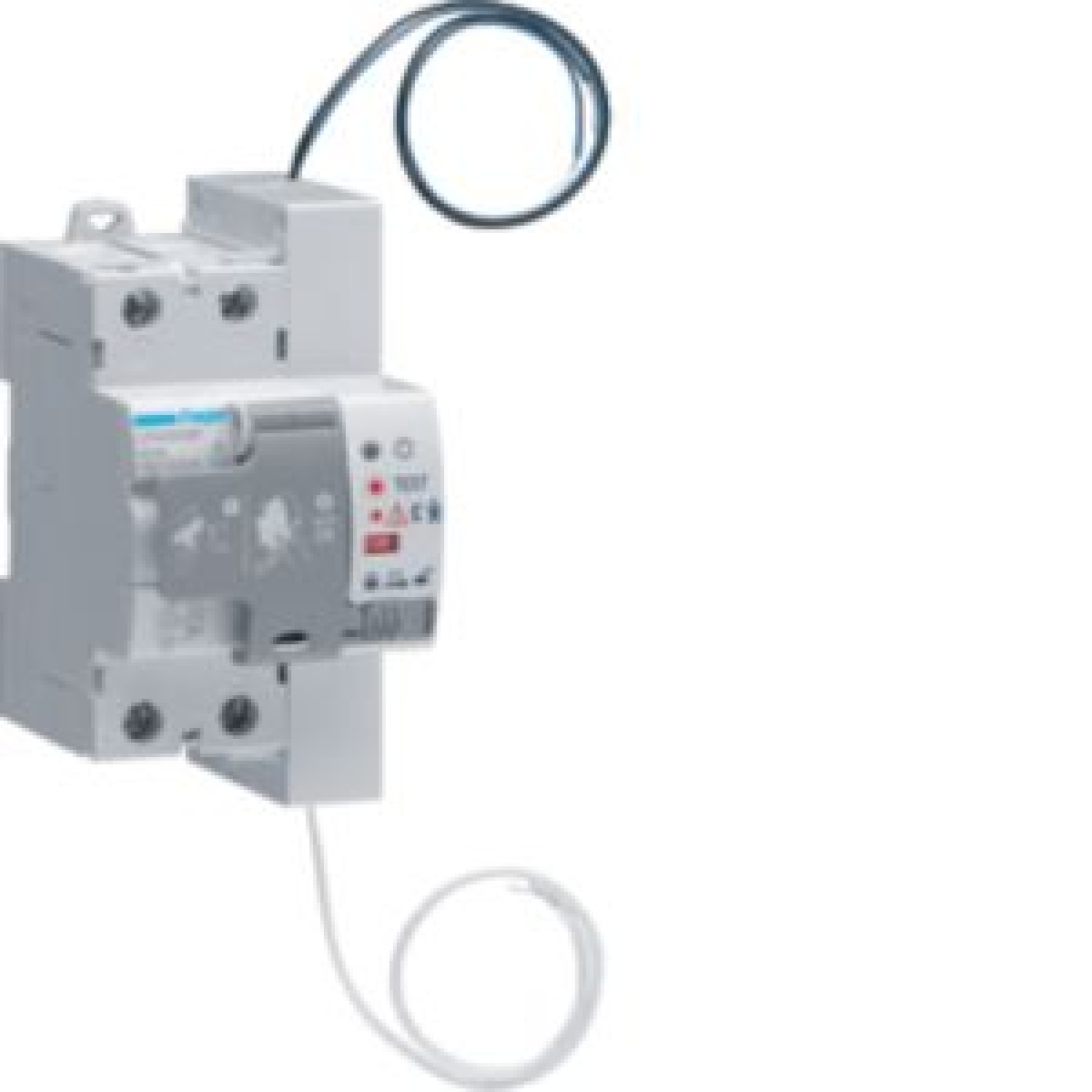

Int dif rear aut PRO 2P 63A 300mA tipoA
Cutting and Protection Devices
Int dif rear aut PRO 2P 63A 300mA tipoA
Manufacturer Ref:
CFA263SP
Nortécnica Ref:
EAN:
3250611653189
Description
Technical Information
Attributes
Mounting method
DIN rail
EF000034
-
Built-in depth
74
Rated current
63
Rated voltage
230
Number of poles
2
Rated fault current
0.3
Leakage current type
A
Selective protection
No
Short-circuit breaking capacity Icw
6
Rated switching capacity
0
Surge current capacity
0.25
Width in number of modular spacings
3
Short-time delayed tripping
No
Degree of protection IP
IP20
Rated switch current auxiliary device
-
Rated voltage auxiliary device
-
Control voltage type auxiliary equipment
-
Additional equipment integrated
-
Additional equipment attached at delivery
Monitoring unit with automatic reclosing
Construction size according to DIN 43880
3
Brands
Hager Sistemas Eléctricos Modulares SA
