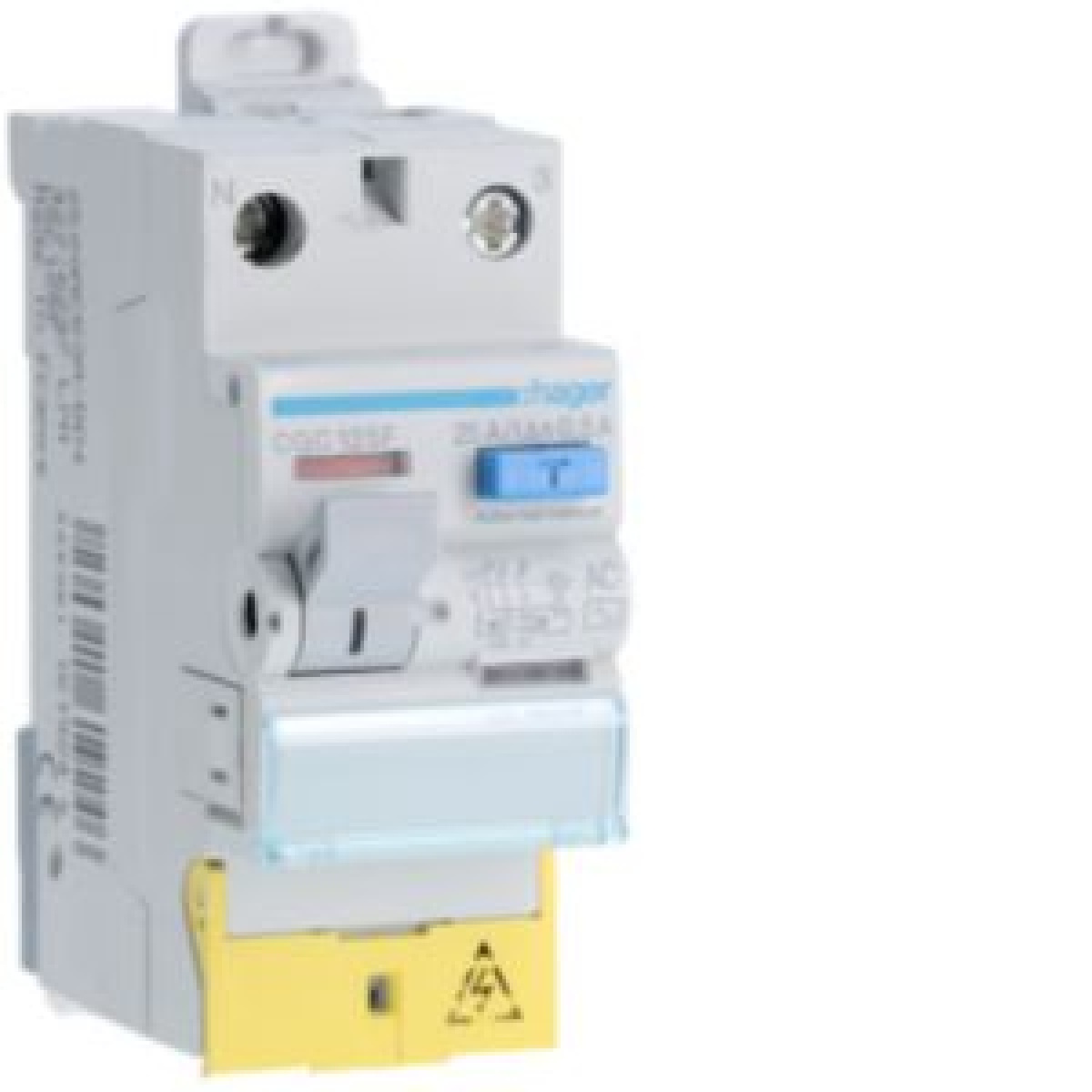

Int dif 1PN 25A 500mA AC cbornes des
Cutting and Protection Devices
Int dif 1PN 25A 500mA AC cbornes des
Manufacturer Ref:
CGC125F
Nortécnica Ref:
71CGC125F
EAN:
3250611619246
Description
Technical Information
Attributes
Mounting method
DIN rail
Voltage type
AC
Built-in depth
70
Rated current
25
EF000228
230
Rated insulation voltage Ui
500
Number of poles
2
Rated fault current
0.5
Leakage current type
AC
Selective protection
No
Short-circuit breaking capacity Icw
6
Surge current capacity
0.25
Pollution degree
2
Width in number of modular spacings
2
Short-time delayed tripping
No
RAL-number similar
7005
Explosion-proof
No
Power loss
1.30
Frequency
50 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1
25
Connectable conductor cross section multi-wired
1
16
With interlocking device
Yes
Ambient temperature during operating
-25
40
Additional equipment possible
Yes
Rated impulse withstand voltage Uimp
4
Brands
Hager Sistemas Eléctricos Modulares SA
