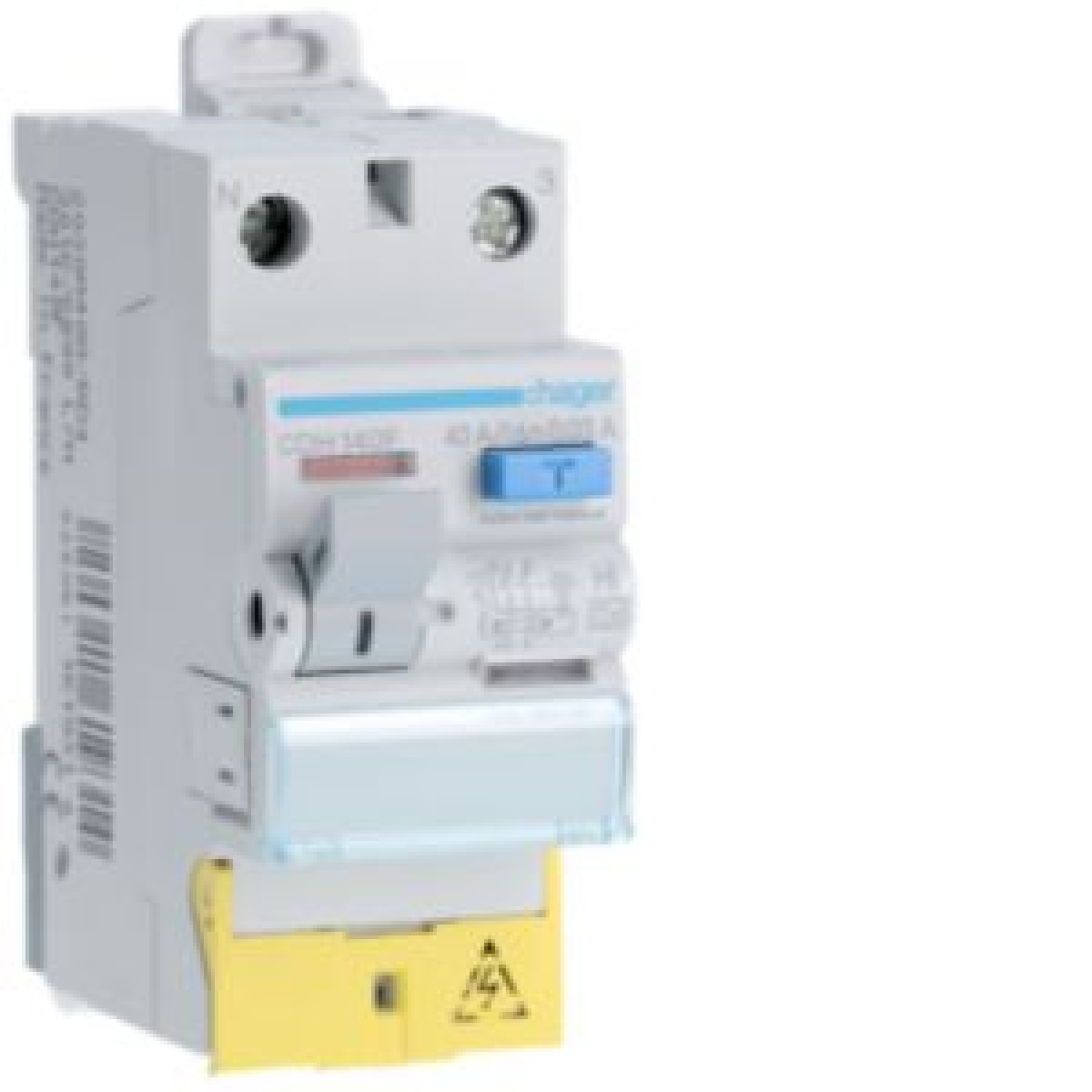

Int dif 1PN 40A 30mA HI cbornes des
Cutting and Protection Devices
Int dif 1PN 40A 30mA HI cbornes des
Manufacturer Ref:
CDH140F
Nortécnica Ref:
71CDH140F
EAN:
3250611619314
Description
Technical Information
Attributes
Mounting method
DIN rail
Voltage type
AC
Built-in depth
70
Rated current
40
EF000228
230
Rated insulation voltage Ui
500
Number of poles
2
Rated fault current
0.03
Leakage current type
A
Selective protection
No
Short-circuit breaking capacity Icw
6
Surge current capacity
3
Pollution degree
2
Width in number of modular spacings
2
Short-time delayed tripping
Yes
RAL-number similar
7005
Explosion-proof
No
Power loss
3.60
Frequency
50 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1
25
Connectable conductor cross section multi-wired
1
16
With interlocking device
Yes
Ambient temperature during operating
-25
40
Additional equipment possible
Yes
Rated impulse withstand voltage Uimp
4
Brands
Hager Sistemas Eléctricos Modulares SA
