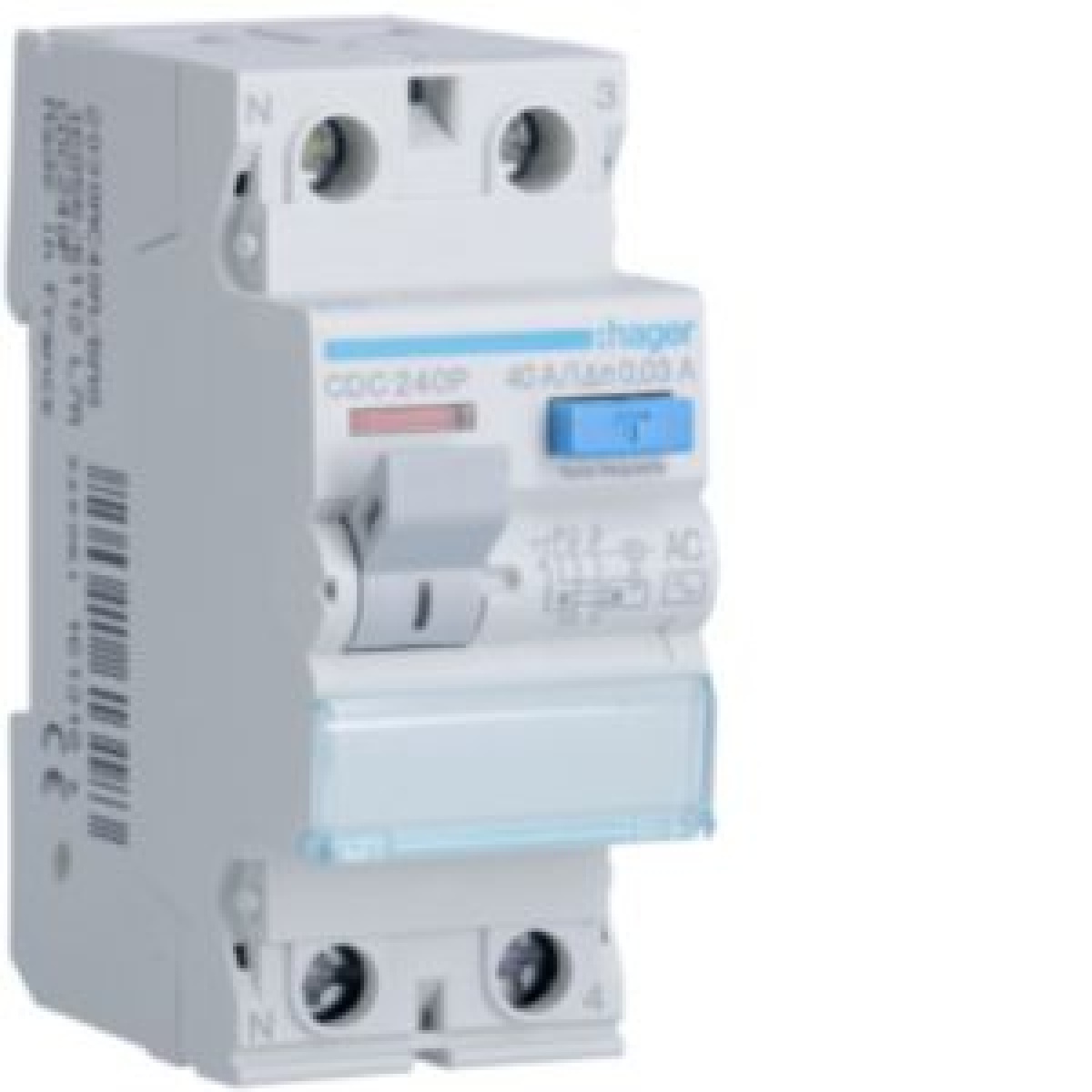

Inter dif 2P 40A 30mA tipo AC 2M
Cutting and Protection Devices
Inter dif 2P 40A 30mA tipo AC 2M
Manufacturer Ref:
CDC240P
Nortécnica Ref:
71CDC240P
EAN:
3250611613183
Description
Technical Information
Attributes
Mounting method
DIN rail
Voltage type
AC
Built-in depth
70
Rated current
40
EF000228
230
Rated insulation voltage Ui
500
Number of poles
2
Rated fault current
0.03
Leakage current type
AC
Selective protection
No
Short-circuit breaking capacity Icw
6
Surge current capacity
0.25
Pollution degree
2
Width in number of modular spacings
2
Short-time delayed tripping
No
RAL-number similar
7005
Explosion-proof
No
Power loss
6.24
Frequency
50 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1
25
Connectable conductor cross section multi-wired
1
16
With interlocking device
Yes
Ambient temperature during operating
-25
40
Additional equipment possible
No
Rated impulse withstand voltage Uimp
4
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
