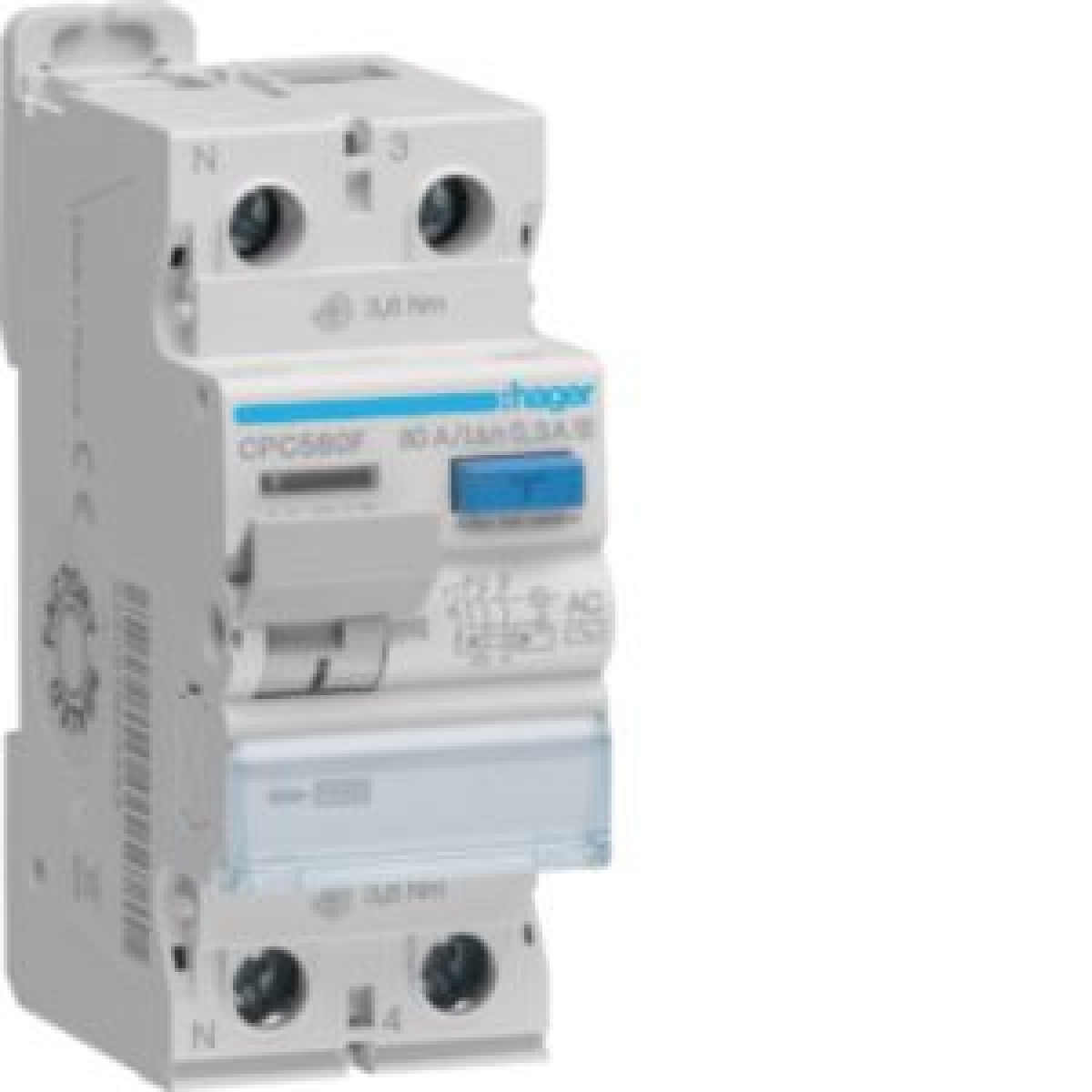

Inter dif 2P 80A sel 300mA tipo AC
Cutting and Protection Devices
Inter dif 2P 80A sel 300mA tipo AC
Manufacturer Ref:
CPC580F
Nortécnica Ref:
71CPC580F
EAN:
3250611623663
Description
Technical Information
Attributes
Mounting method
DIN rail
Voltage type
AC
Built-in depth
70
Rated current
80
Rated voltage
230
Rated insulation voltage Ui
500
Number of poles
2
Rated fault current
0.3
Leakage current type
AC
Selective protection
Yes
Short-circuit breaking capacity Icw
10
Surge current capacity
5
Pollution degree
2
Largura em número de módulos
2
Short-time delayed tripping
Yes
RAL-number similar
7005
Explosion-proof
No
Power loss
10.90
Frequency
50 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1
50
Connectable conductor cross section multi-wired
-
With interlocking device
Yes
Ambient temperature during operating
-25
65
Additional equipment possible
Yes
Rated impulse withstand voltage Uimp
4
Brands
Hager Sistemas Eléctricos Modulares SA
