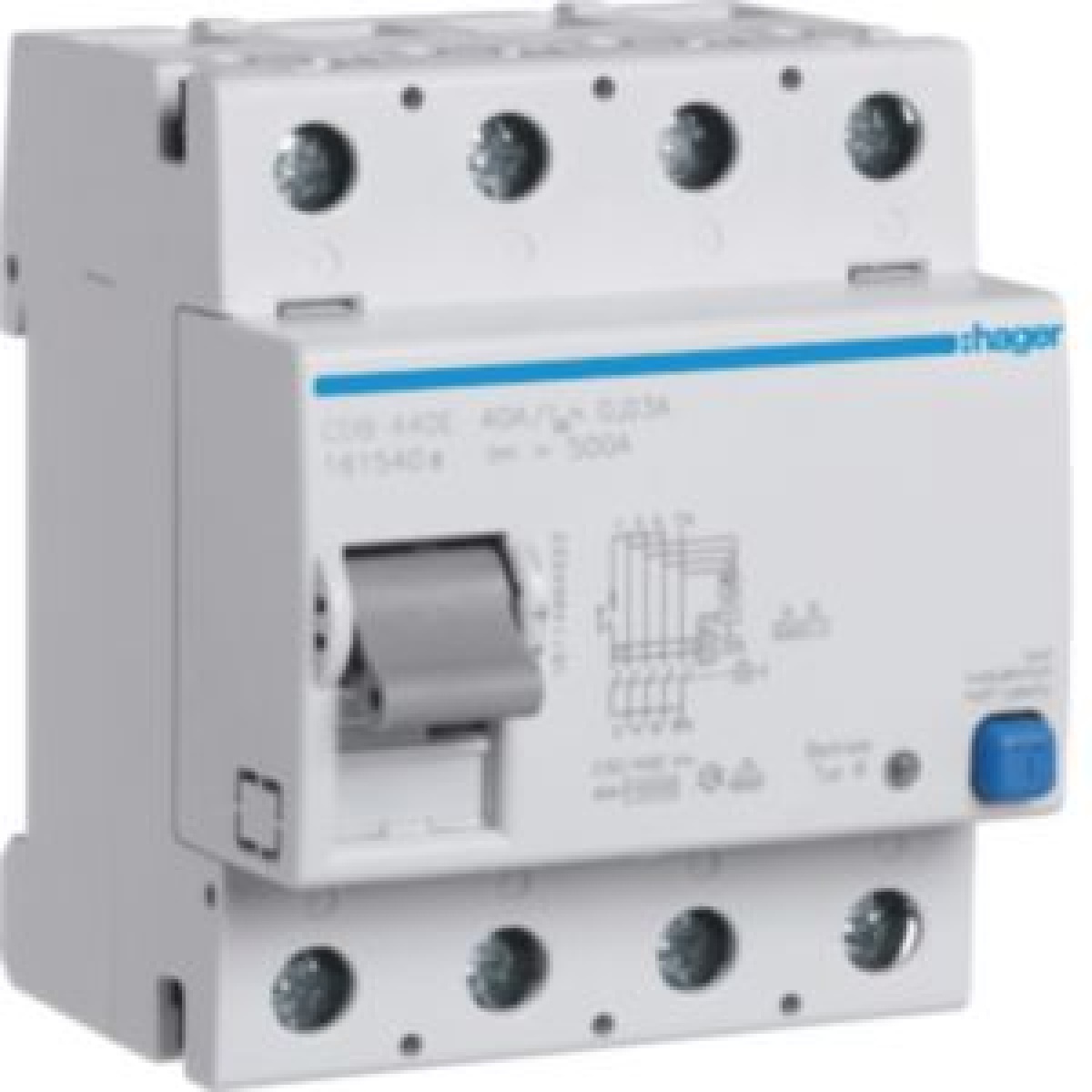

Inter dif 4P 100A sel 300mA tipo B 4M
Cutting and Protection Devices
Inter dif 4P 100A sel 300mA tipo B 4M
Manufacturer Ref:
CPB484E
Nortécnica Ref:
EAN:
3250611618782
Description
Technical Information
Attributes
Mounting method
DIN rail
Voltage type
AC
Built-in depth
70
Rated current
100
Rated voltage
400
Rated insulation voltage Ui
500
Number of poles
4
Rated fault current
0.3
Leakage current type
B
Selective protection
Yes
Short-circuit breaking capacity Icw
10
Surge current capacity
5
Pollution degree
2
Largura em número de módulos
4
Short-time delayed tripping
Yes
RAL-number similar
7005
Explosion-proof
No
Power loss
22.50
Frequency
50 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1.5
50
Connectable conductor cross section multi-wired
1.5
16
With interlocking device
No
Ambient temperature during operating
-25
40
Additional equipment possible
Yes
Rated impulse withstand voltage Uimp
4
Brands
Hager Sistemas Eléctricos Modulares SA
