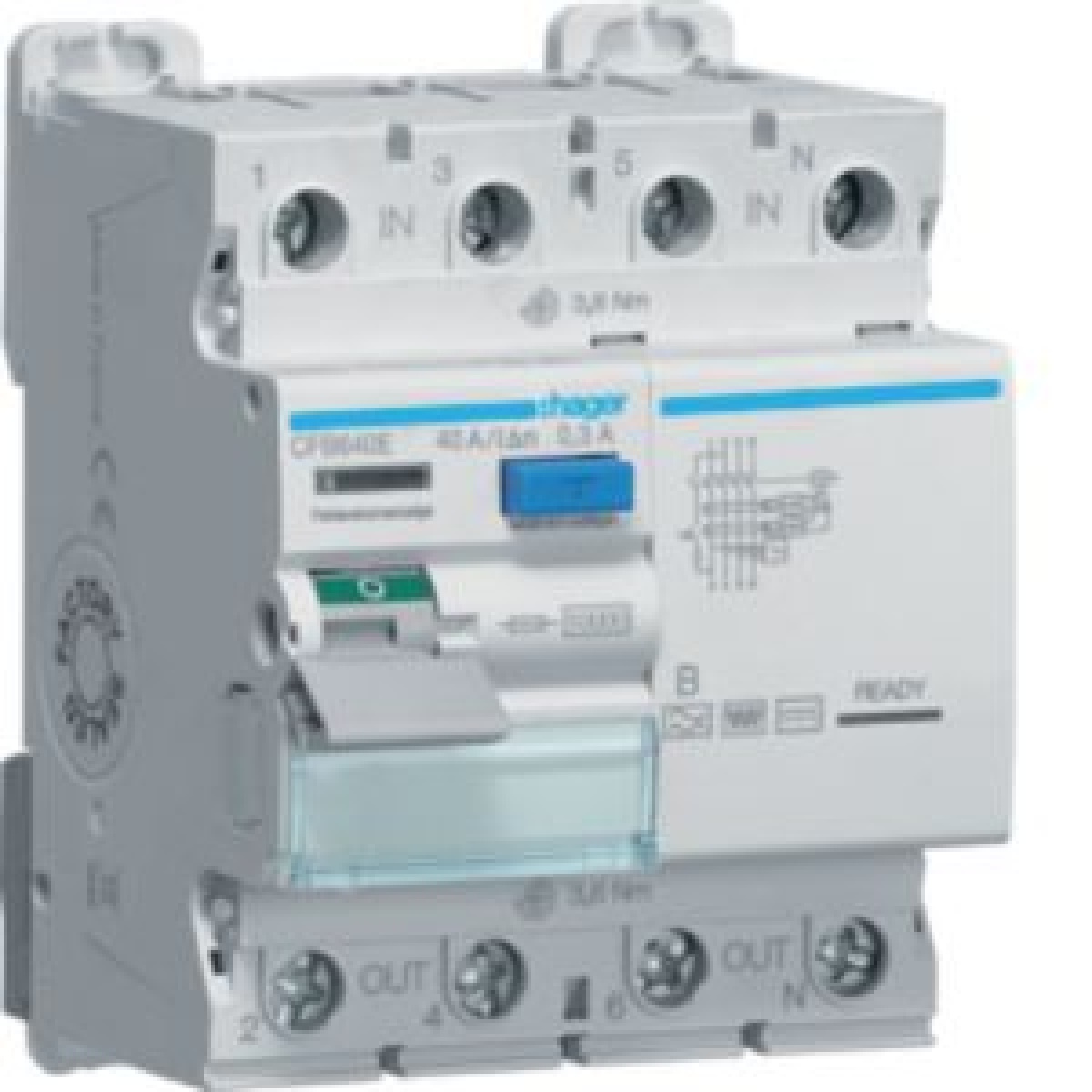

Inter dif 4P 40A 300mA tipo B 4M
Cutting and Protection Devices
Inter dif 4P 40A 300mA tipo B 4M
Manufacturer Ref:
CFB640E
Nortécnica Ref:
71CFB640E
EAN:
3250611627975
Description
Technical Information
Attributes
Mounting method
DIN rail
Voltage type
AC
Built-in depth
70
Rated current
40
EF000228
400
Rated insulation voltage Ui
400
Number of poles
4
Rated fault current
0.3
Leakage current type
B
Selective protection
No
Short-circuit breaking capacity Icw
10
Surge current capacity
5
Pollution degree
2
Width in number of modular spacings
4
Short-time delayed tripping
No
RAL-number similar
7005
Explosion-proof
No
Power loss
6.77
Frequency
50 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1
25
Connectable conductor cross section multi-wired
1
16
With interlocking device
Yes
Ambient temperature during operating
-25
70
Additional equipment possible
Yes
Rated impulse withstand voltage Uimp
4
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
