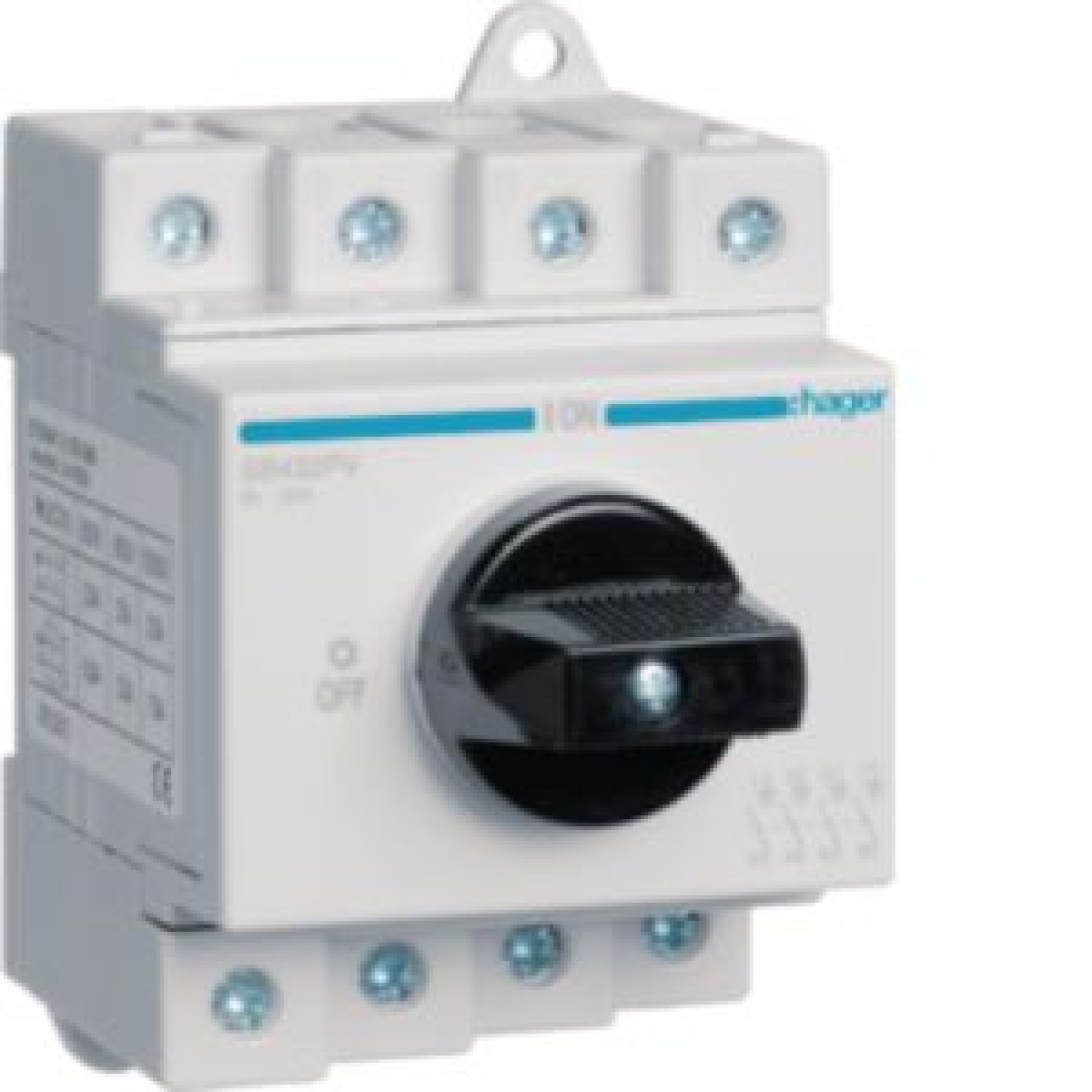

Interruptor 4P 32A 1000V DC
Cutting and Protection Devices
Interruptor 4P 32A 1000V DC
Manufacturer Ref:
SB432PV
Nortécnica Ref:
71SB432PV
EAN:
3250615521392
Description
Technical Information
Attributes
Largura
60
Altura
85
Profundidade
72
Rated operation power at AC-3, 400 V
-
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
32
Number of poles
4
Rated operating voltage
1000
1000
Conditioned rated short-circuit current Iq
-
Largura em número de módulos
3.5
Degree of protection IP, front side
IP20
Number of auxiliary contacts as change-over contact
0
Number of switches
1
Interlockable
No
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Short rotary handle
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
-
Rated short-time withstand current lcw
-
Colour control element
Black
EF007243
No
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
Yes
Max. rated operation voltage Ue AC
-
Motor drive optional
No
Voltage release optional
No
Device construction
Builtin device fixed builtin technique
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
-
Degree of protection NEMA
Other
With pre-assembled cabling
No
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
