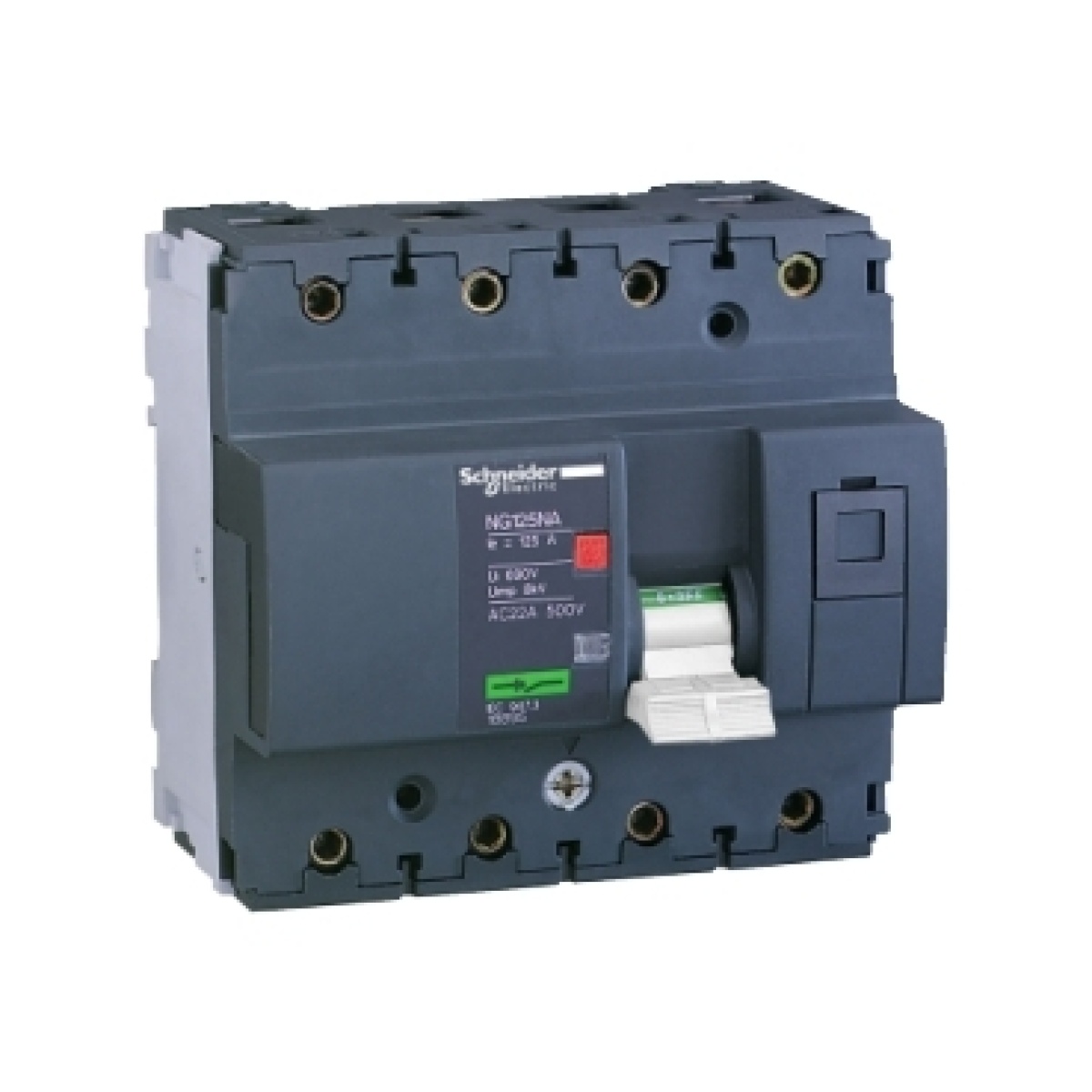

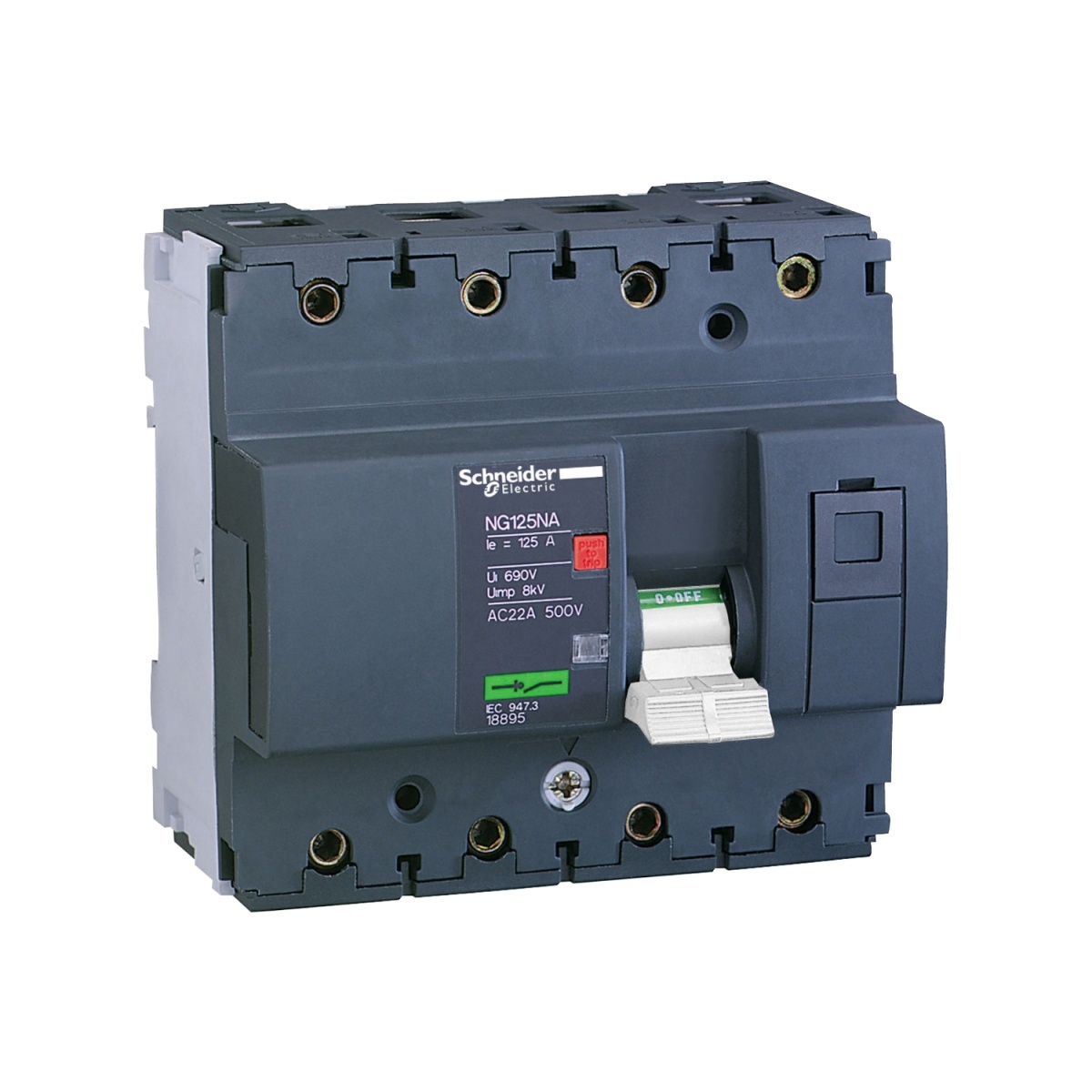

interruptor NG125NA, 4P, 125A
Cutting and Protection Devices
interruptor NG125NA, 4P, 125A
Manufacturer Ref:
18896
Nortécnica Ref:
51018896
EAN:
3303430188964
Description
Technical Information
Attributes
Largura
108
Altura
103
Profundidade
81
Rated operation power at AC-3, 400 V
-
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
125
Number of poles
4
Rated operating voltage
500
500
Conditioned rated short-circuit current Iq
-
Largura em número de módulos
6
Degree of protection IP, front side
IP20
Number of auxiliary contacts as change-over contact
0
Number of switches
4
Interlockable
No
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Wing knob
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
No
Rated operation power at AC-23, 400 V
-
Rated short-time withstand current lcw
1.5
Colour control element
Black
EF007243
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
Yes
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
500
Motor drive optional
No
Voltage release optional
Yes
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
-
Degree of protection NEMA
-
With pre-assembled cabling
No
Brands
Schneider
