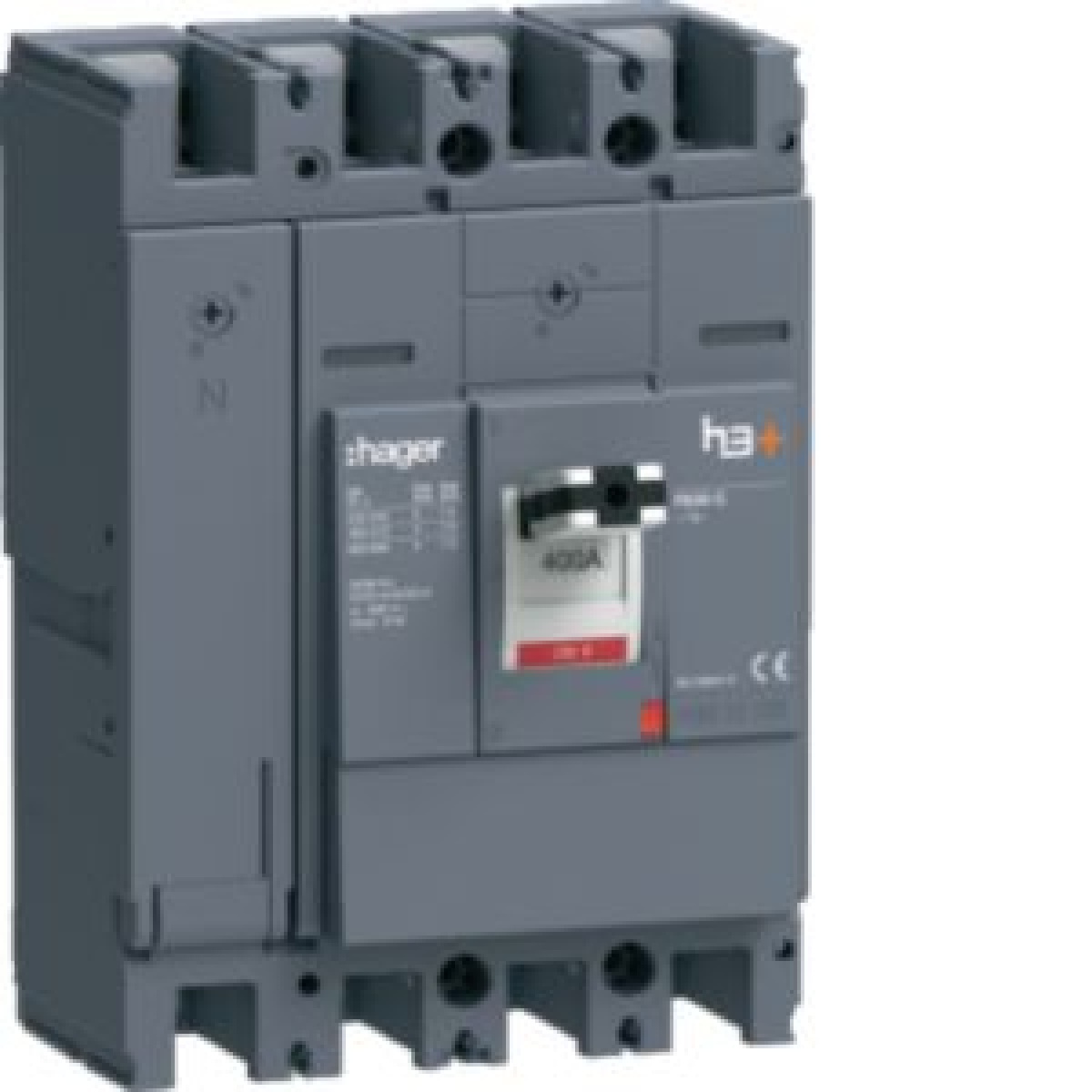

Interruptor P630 4P 400A
Cutting and Protection Devices
Interruptor P630 4P 400A
Manufacturer Ref:
HCW401AR
Nortécnica Ref:
71HCW401AR
EAN:
3250613198749
Description
Technical Information
Attributes
Width
185
Height
260
Depth
150
Rated operation power at AC-3, 400 V
-
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
400
Number of poles
4
Rated operating voltage
220
690
Conditioned rated short-circuit current Iq
-
Width in number of modular spacings
-
Degree of protection IP, front side
IP40
Number of auxiliary contacts as change-over contact
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Cable clamp
Version as emergency stop installation
Yes
Type of control element
Wing knob
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
407
Rated short-time withstand current lcw
5
Colour control element
Grey
EF007243
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
Yes
Voltage release optional
Yes
Device construction
Builtin device fixed builtin technique
Rated permanent current at AC-21, 400 V
400
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
400
Degree of protection NEMA
Other
With pre-assembled cabling
No
Brands
Hager Sistemas Eléctricos Modulares SA
