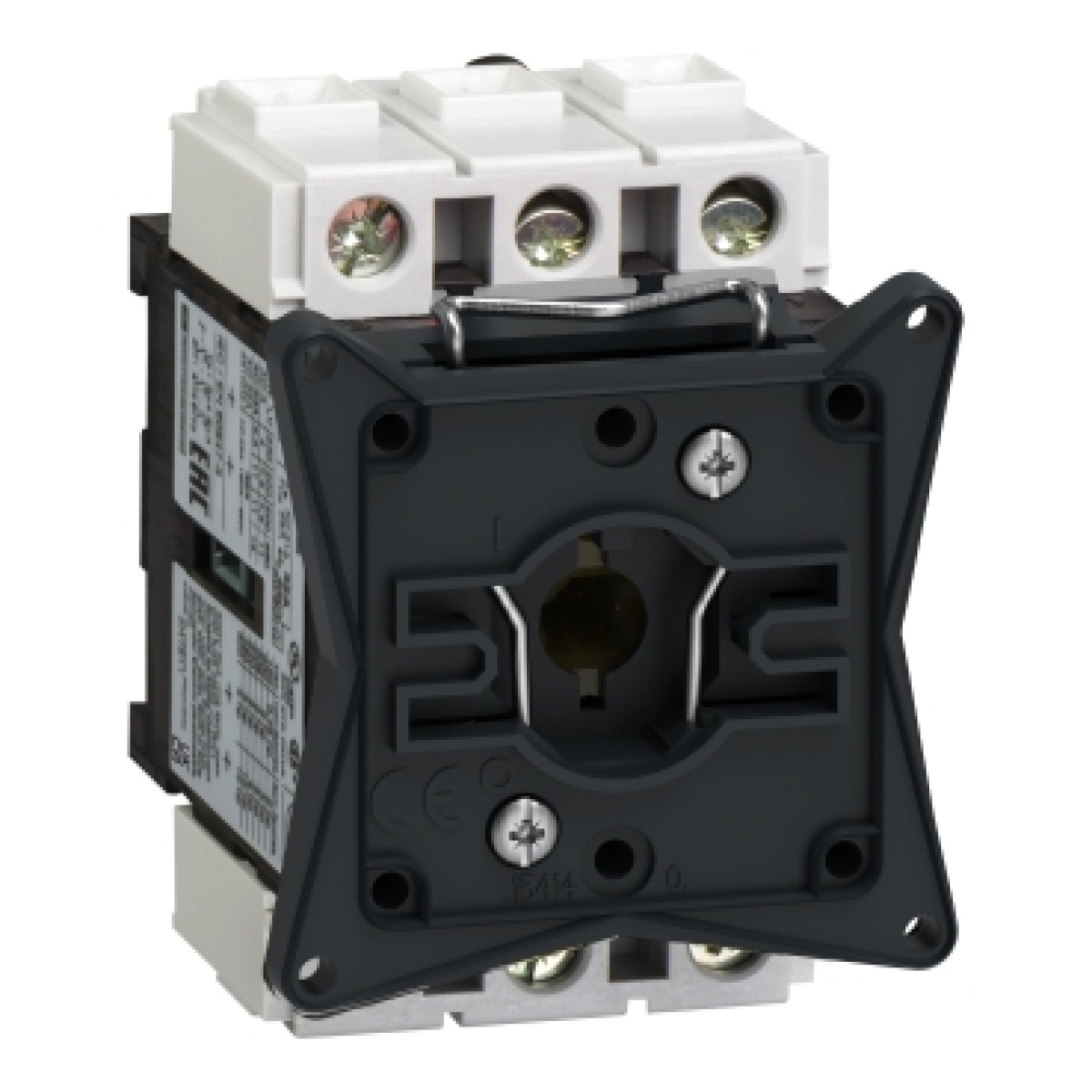

interruptor seccionador 3P 32A
Cutting and Protection Devices
interruptor seccionador 3P 32A
Manufacturer Ref:
V1
Nortécnica Ref:
52V1
EAN:
3389110551693
Description
Technical Information
Attributes
Largura
55
Altura
74
Profundidade
60
Rated operation power at AC-3, 400 V
7.5
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
32
Number of poles
3
Rated operating voltage
690
690
Conditioned rated short-circuit current Iq
10
Largura em número de módulos
-
Degree of protection IP, front side
IP20
Number of auxiliary contacts as change-over contact
0
Number of switches
1
Interlockable
No
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
-
Version as main switch
No
Version as safety switch
No
Version as maintenance-service switch
No
Rated operation power at AC-23, 400 V
11
Rated short-time withstand current lcw
0.384
Colour control element
-
EF007243
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
Yes
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
32
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
21.8
Degree of protection NEMA
-
With pre-assembled cabling
No
Brands
Schneider
