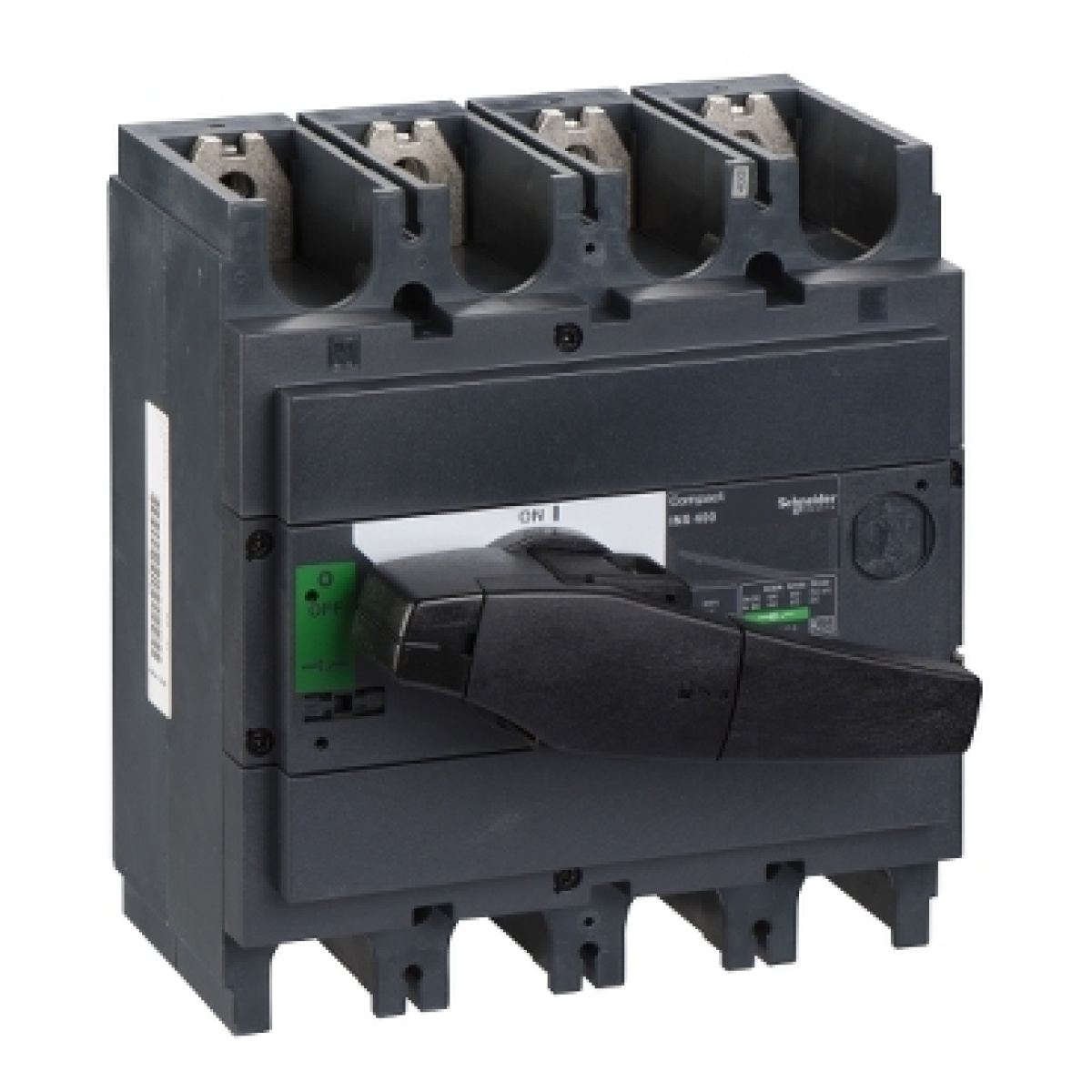

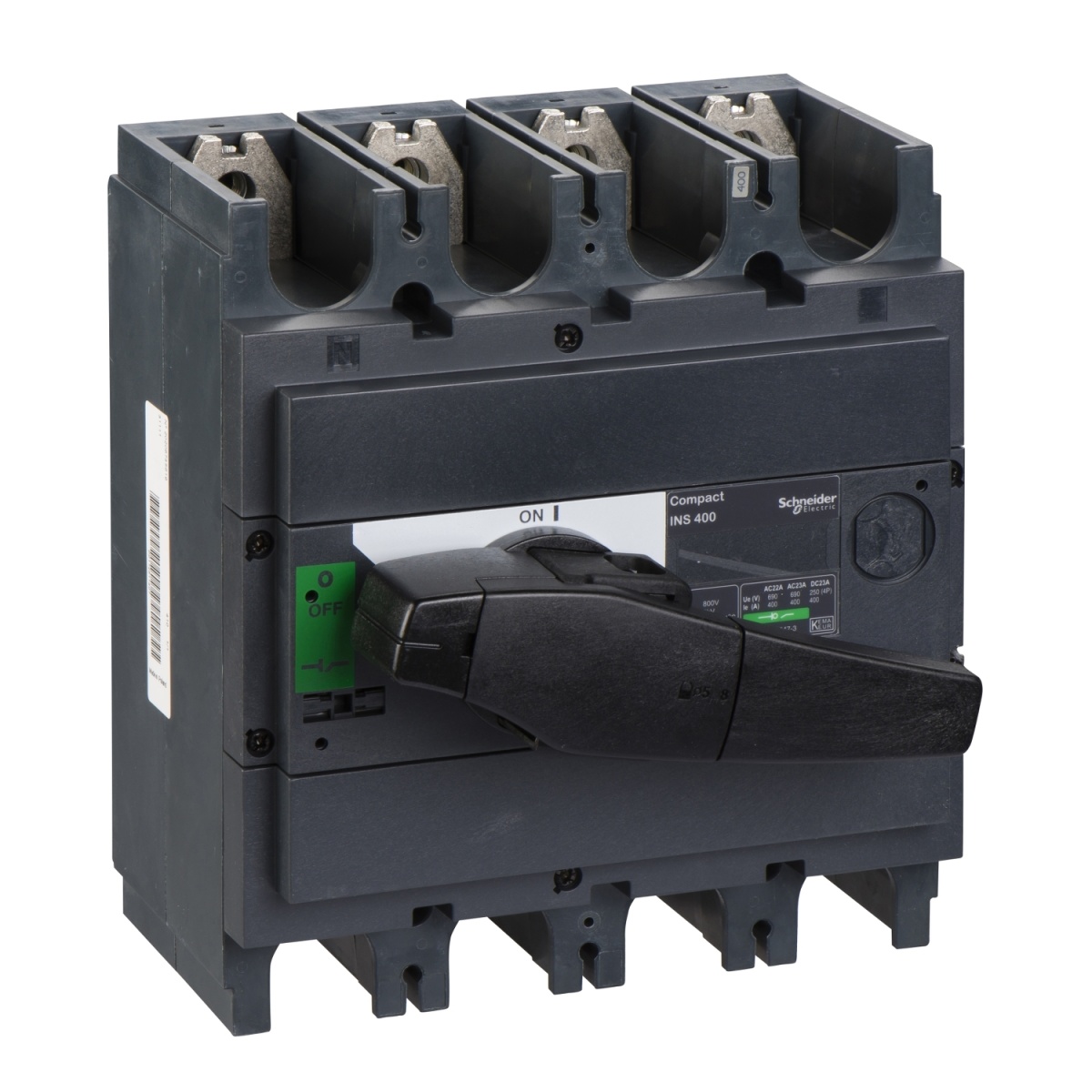

interruptor seccionador Interpact INS400 - 400 A - 4 pólos
Cutting and Protection Devices
interruptor seccionador Interpact INS400 - 400 A - 4 pólos
Manufacturer Ref:
31111
Nortécnica Ref:
51031111
EAN:
3303430311119
Description
Technical Information
Attributes
Largura
185
Altura
205
Profundidade
130
Rated operation power at AC-3, 400 V
-
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
400
Number of poles
4
Rated operating voltage
690
690
Conditioned rated short-circuit current Iq
-
Largura em número de módulos
-
Degree of protection IP, front side
IP40
Number of auxiliary contacts as change-over contact
4
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Long rotary handle
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
200
Rated short-time withstand current lcw
20
Colour control element
Black
EF007243
Yes
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
Yes
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
400
Degree of protection NEMA
-
With pre-assembled cabling
-
Brands
Schneider
Technical Sheet
