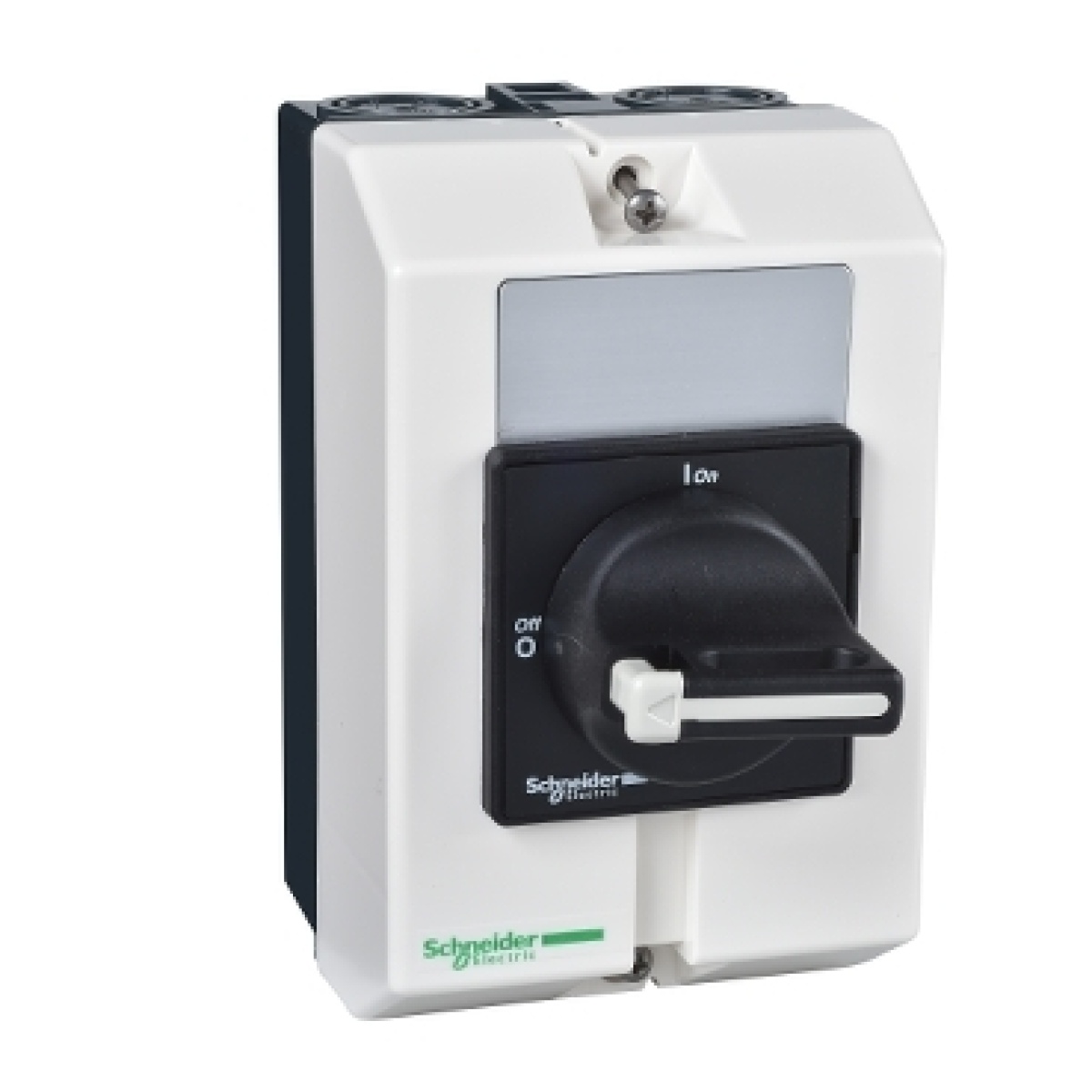

interruptor seccionador principal em caixa 3P 20A
Cutting and Protection Devices
interruptor seccionador principal em caixa 3P 20A
Manufacturer Ref:
VBF0GE
Nortécnica Ref:
52VBF0GE
EAN:
3389110166019
Description
Technical Information
Attributes
Width
90
Height
146
Depth
131
Rated operation power at AC-3, 400 V
5.5
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
20
Number of poles
3
Rated operating voltage
690
690
Conditioned rated short-circuit current Iq
10
Width in number of modular spacings
-
Degree of protection IP, front side
IP65
Number of auxiliary contacts as change-over contact
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Short rotary handle
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
7.5
Rated short-time withstand current lcw
0.3
Colour control element
Black
EF007243
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
No
Device construction
Complete device in housing
Rated permanent current at AC-21, 400 V
25
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
14.5
Degree of protection NEMA
-
With pre-assembled cabling
No
Brands
Schneider
