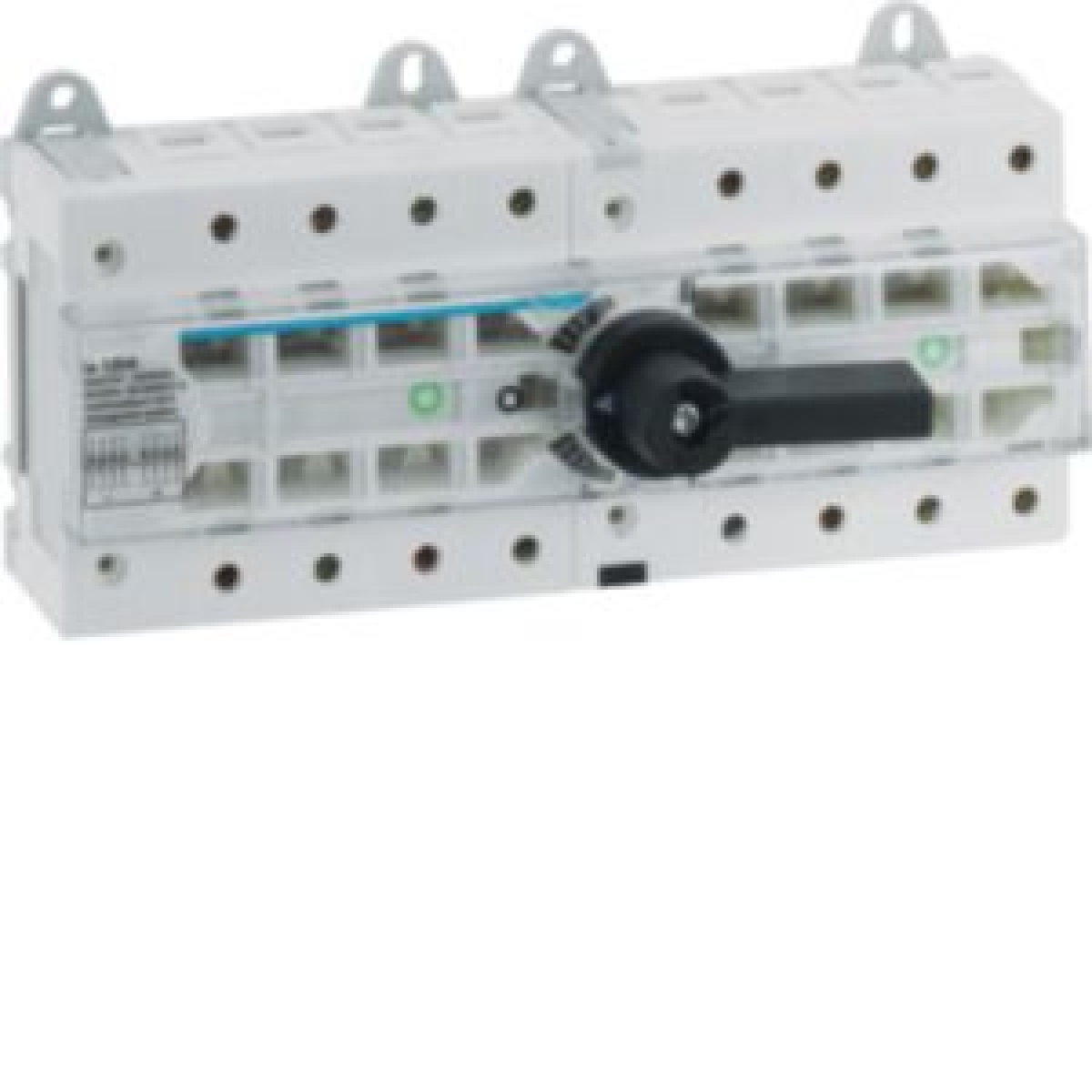

Invers cmdo manual 4P 125A 12M
Cutting and Protection Devices
Invers cmdo manual 4P 125A 12M
Manufacturer Ref:
HI406R
Nortécnica Ref:
71HI406R
EAN:
3250613190095
Description
Technical Information
Attributes
Width
97
Height
116
Depth
215
Rated operation power at AC-3, 400 V
-
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
125
Number of poles
4
Rated operating voltage
380
690
Conditioned rated short-circuit current Iq
50
Width in number of modular spacings
12.50
Degree of protection IP, front side
IP20
Number of auxiliary contacts as change-over contact
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Short rotary handle
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
28
Rated short-time withstand current lcw
2.5
Colour control element
Black
EF007243
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
No
Device construction
Builtin device fixed builtin technique
Rated permanent current at AC-21, 400 V
125
Switching power at 400 V
82
Version as reversing switch
Yes
Rated permanent current at AC-23, 400 V
63
Degree of protection NEMA
Other
With pre-assembled cabling
No
Brands
Hager Sistemas Eléctricos Modulares SA
